7.2.7 LOGIC FUNCTIONS OF OUTPUT (OUT)

Visualization of the status, of the logical functions, of protection or sequence
(for example: drive ready, converter in run) scheduled in the control, that
may or may not be assigned of predicted digital output. Code of
identification:

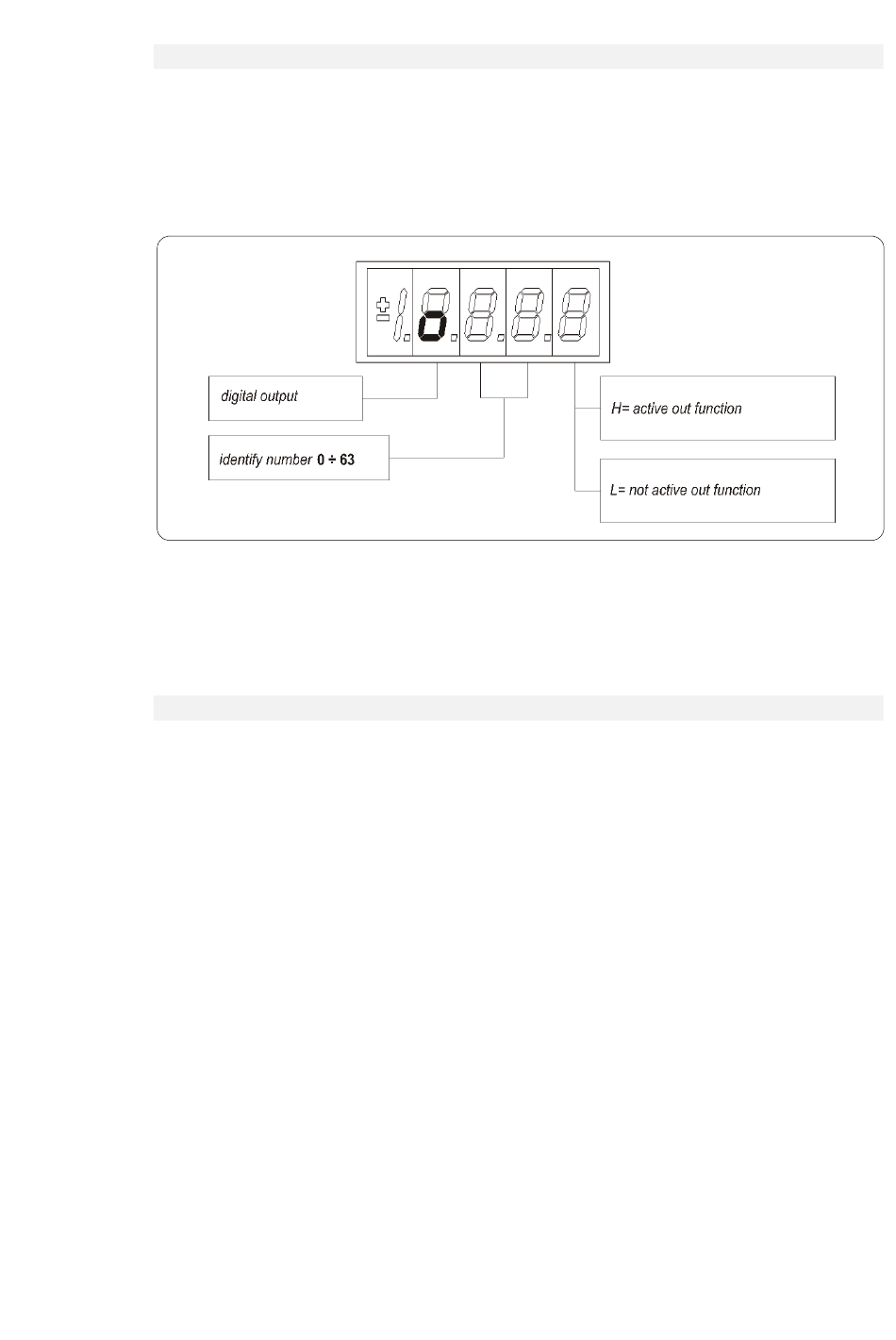

FIG. 8 (Logics functions of output OUT)
7.3 STATUS OF REST
It is the status that the display assumes right after the lighting or when none
is programming (P112 seconds, 10 of default, after the last movement,
except that is not is visualizing an internal dimensions, or an input, or a
digital output). When the keypad is on tat the status rest, if the converter is
not in run comes visualized "STOP"; if the converter is in run comes
visualized the internal dimension selected with C00 connection or the status
"run". If the converter finds the status alarm, for intervention of an or more
protections, the written on the keypad start to flash and they come
visualized all the active alarms (one by one).
