7.4 MAIN MENU

Leaving from the status of rest pressing the "S" key the principal menu is
gone into of circular type that contains the indication of the type of
visualizable dimensions:
PAR = parameters
APP = application parameters
CON = internal connections
INT= internal dimensions
ALL= allarm
INP = digital input
OUT = digital output
To change from a list to another enough is necessary to use the "+" or ""
keys and the passage will happen in the order of figure. Once select the list
you pass on the relative undermenu pressing "S"; the reentry to the
mainmenu from the following visualizations will be able future through the
pressure of the key "S" simple or double in brief succession (less in a
second), like showed after. The return to the status of rest comes instead
automatically after 10 (P112) seconds of inactivity is from some under menu
that goes by the main menu.

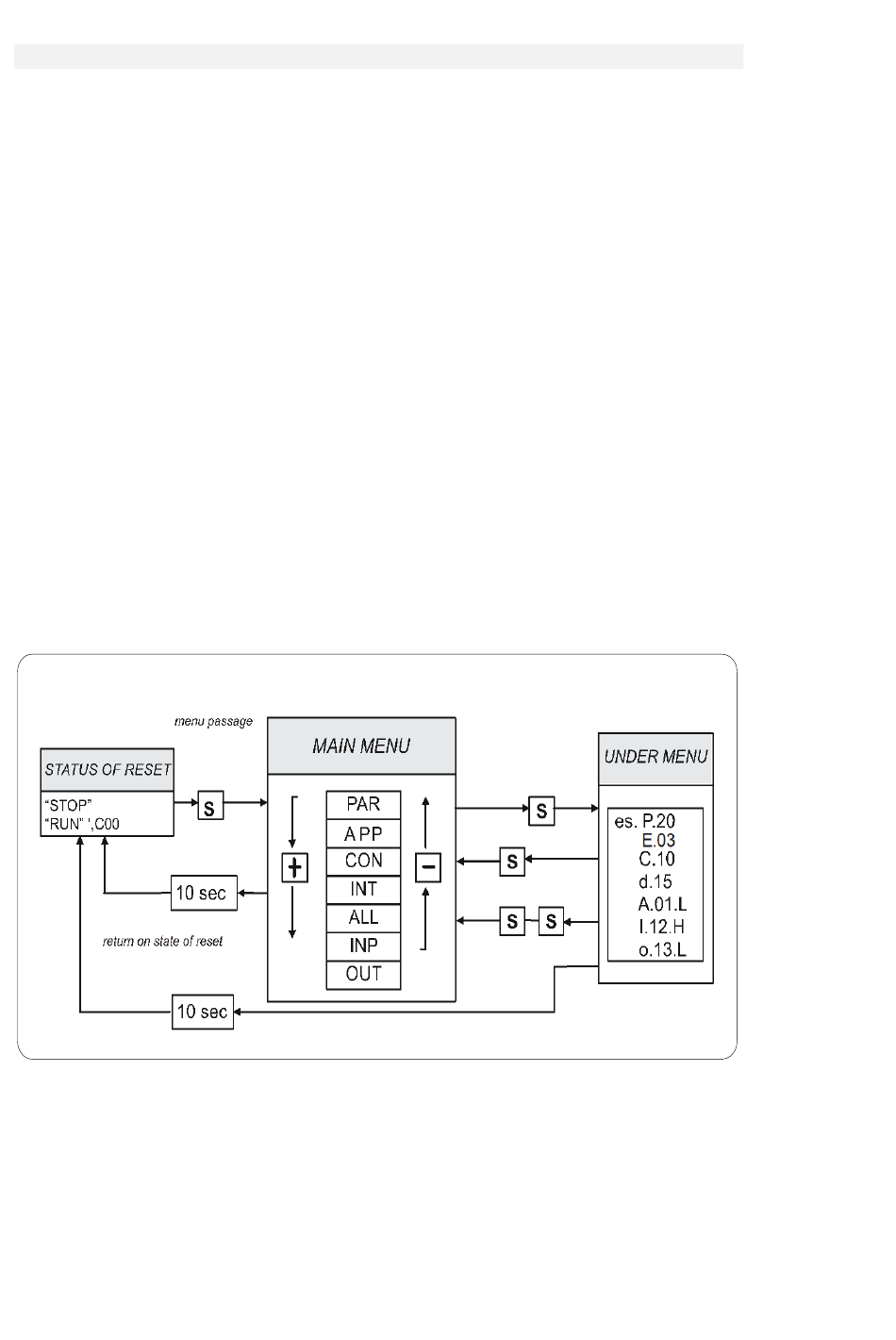

FIG. 9 (Main Menu)
