7.2.5 INTERNAL VALUES (INT)

Overall functions of protection of the converter, of the motor or in the
application whose status to active alarm or non active alarm it may be
visualized in the display. The actived protection, stops the converter and
does flash the display, excepted if it is disabled. With a single visualization
is possible have all the indications with the following:

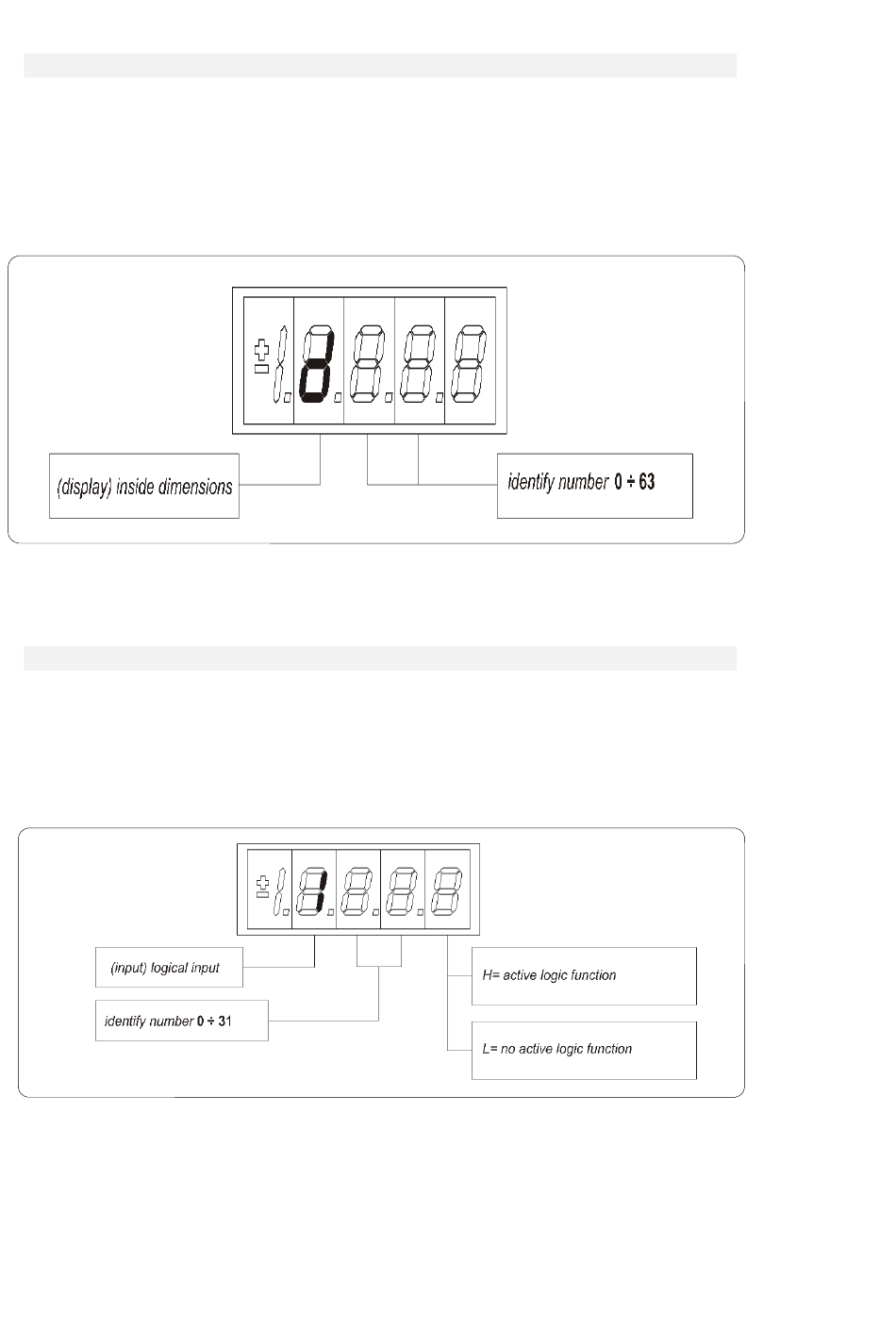

FIG. 6 (Internal Values INT)
7.2.6 LOGIC FUNCTIONS OF INPUT (INP)
The visualization between I00 and I28 is the status of the logical functions
of sequence or protection that is assigned in the all digital input of the
regulation. From I29 to I31 is the visualization of the status of the input from
the power. Code of identification (input) logical input.
FIG. 7 (Logics functions of input INP)
