To exclude the event of an alarm You must enter into the menu to
modify both the keys "+" and "–" and when the flashing point appears
of the first number You can enable or disable the alarm with the keys
"+" or "–"; if the alarm is disabled appears the sign the "–" to the left
of the writing "A.XX.Y".
From the status of modification returns to the list of undermenu and You
return operative the select made pressing "S", from the menu and from the
undermenu You turn automatically to the status of rest after a time closed to
10 seconds.

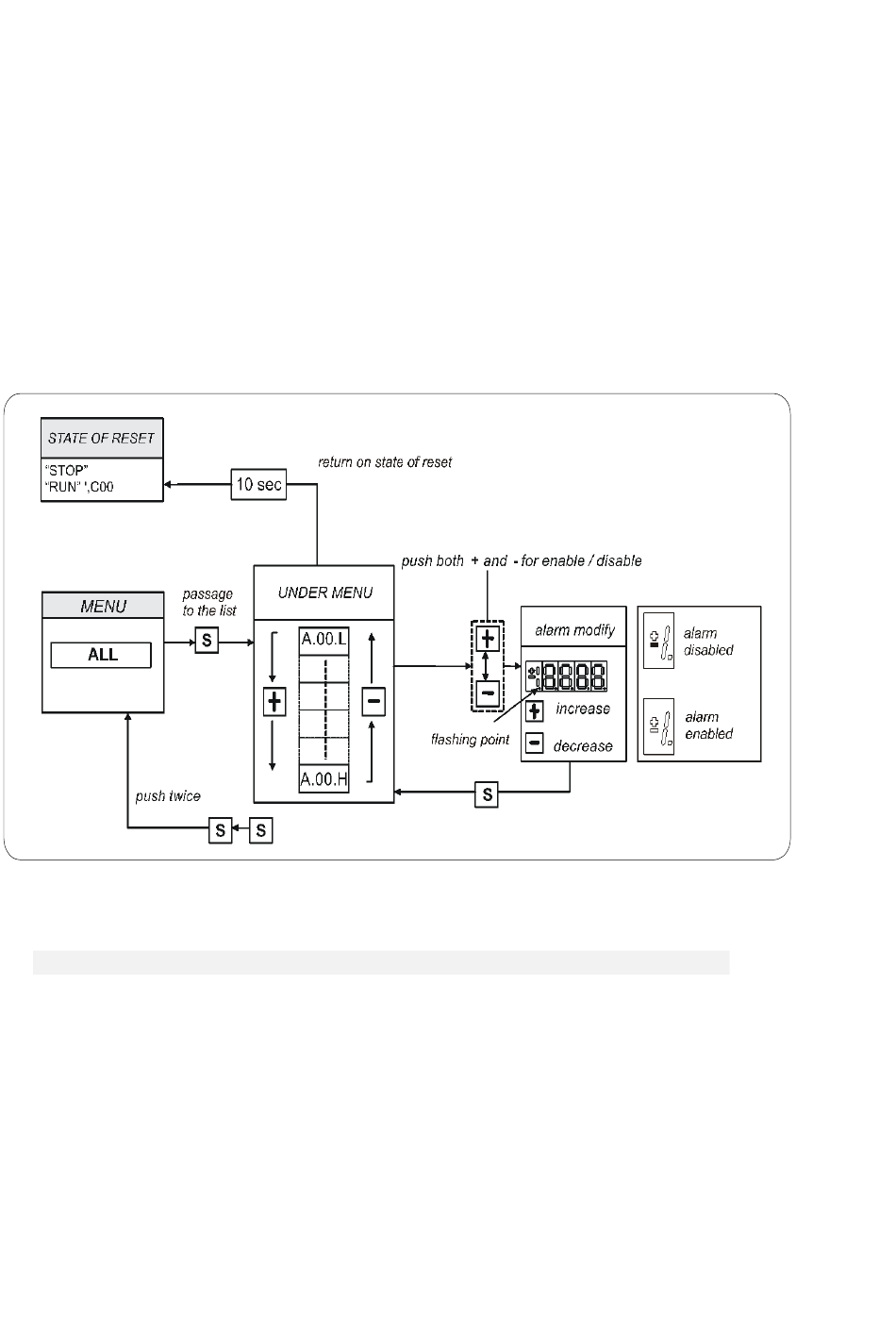

FIG. 14 (Alarms ALL)

7.4.4 VISUALIZATION OF THE INPUT AND OUTPUT (INP AND OUT)

From the INP or from the OUT You enter into corresponding list of under-
menu pressing "S". From the corresponding list of undermenu with the keys
"+" and "–" move to the address desired for the digital input (i) and the
output (o); together to this, in the box, appear the status: "H" if activate, "L"
if not active. From this status You returns to the main menu pressing "S".
User's manual 111
