C
ONFIGURING THE
•
Status – Shows if this VLAN is enabled or disabled (Web).
- Enable: VLAN is operational.
- Disable: VLAN is suspended; i.e., does not pass packets.
•
State – Shows if this VLAN is enabled or disabled (CLI).
- Active: VLAN is operational.
- Suspend: VLAN is suspended; i.e., does not pass packets.
•
Add – Adds a new VLAN group to the current list.
•
Remove – Removes a VLAN group from the current list. If any
port is assigned to this group as untagged, it will be reassigned
to VLAN group 1 as untagged.

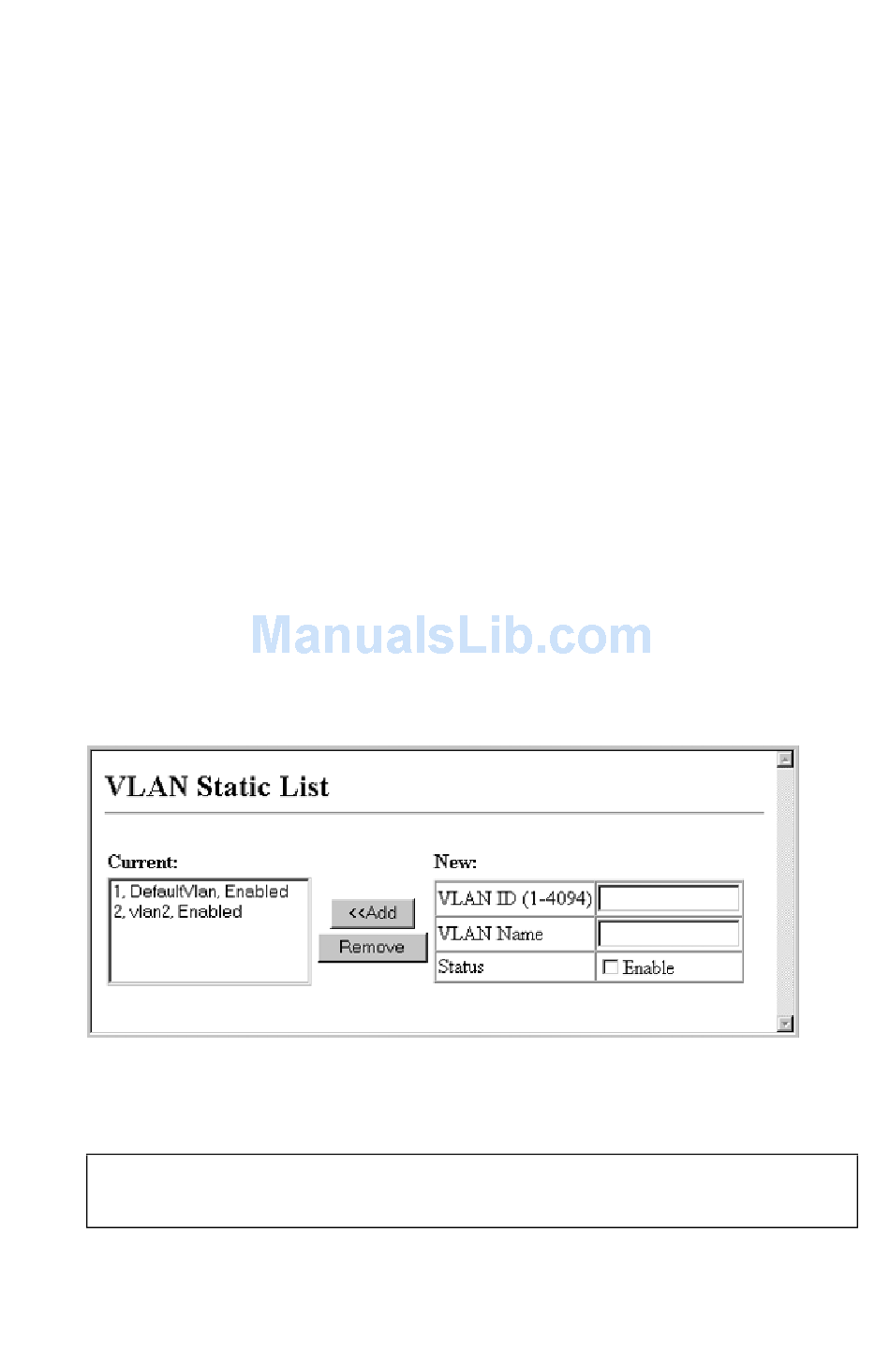

Web – Click VLAN, VLAN Static List. Enter the VLAN ID and VLAN
name, mark the Enable checkbox to activate the VLAN, and then
click Add.
CLI – This example creates a new VLAN.
Console(config)#vlan database
Console(config-vlan)#vlan 5 name R&D media ethernet state active3-132
Console(config-vlan)#
2-78
S
WITCH
3-131
