5 Operation

20
5 Operation
5.1

Display and operating elements

5.1.1 Display reading/symbols
1
2
3
4
5
6
7

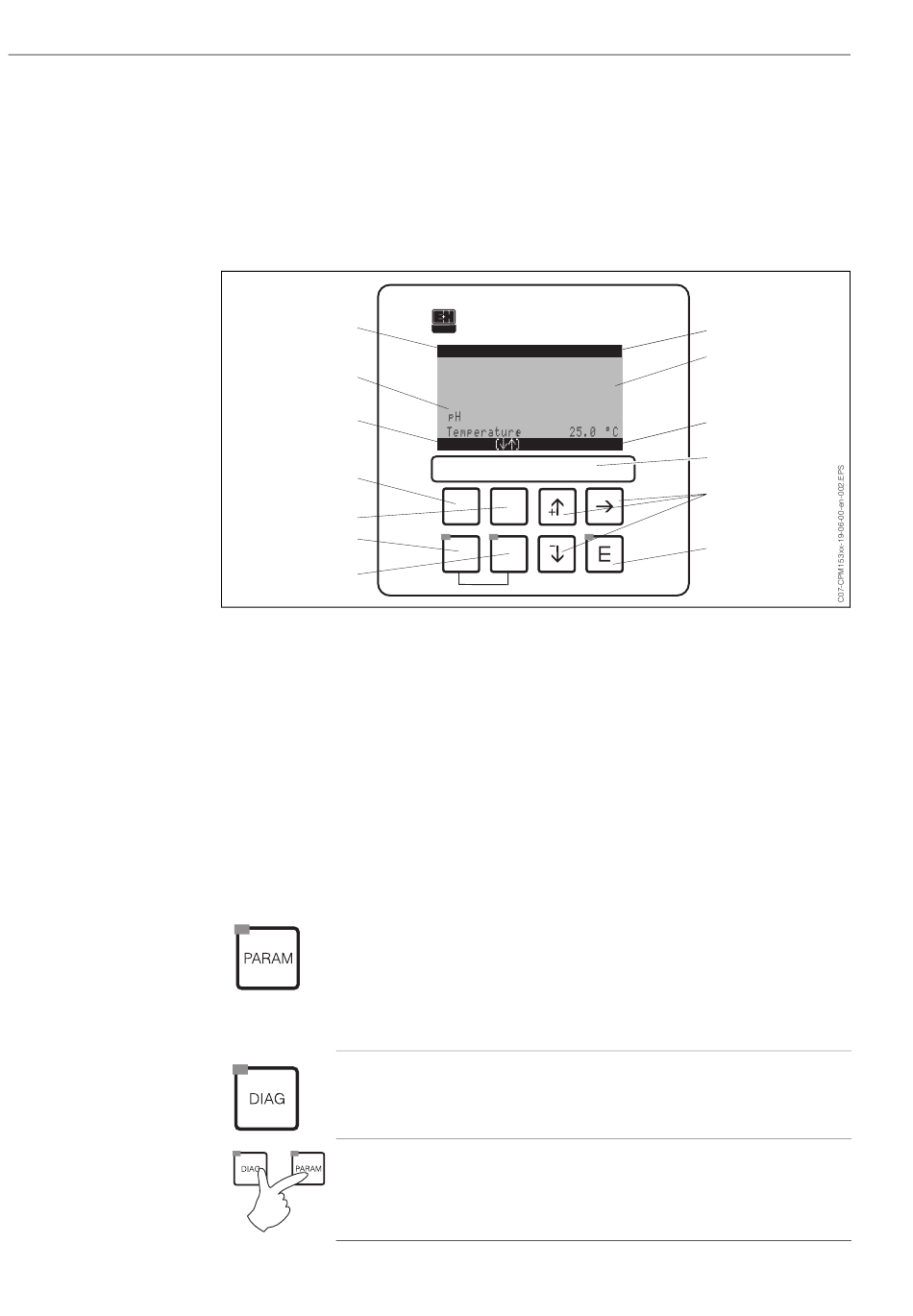

Mycom S CPM 153 user interface
1: Current menu
2: Current parameter
3: Navigation bar: Arrow keys for scrolling, "E" for browsing, note for Cancel
4: "MEAS" (Operation) key
5: "CAL" (Calibration) key
6: "DIAG" (Diagnosis menu) key
7: "PARAM" (Parameter entry menu) key
? = Press DIAG and PARAM simultaneously to open the help pages
8: HOLD display, if HOLD active
9: Current main measured value
10: "Failure" display, "Warning", if the NAMUR contacts respond
11: Labelling strip
12: Arrow keys for scrolling and editing
13: ENTER key
5.1.2 Key assignment
"PARAM" brings you to the Configuration menu of the Mycom S CPM 153.
Note!
!
"PARAM" allows you to return to the previous "return field" from any point in the menu.
These are marked in bold in the menu overview (see Chap. 11.1).
LED: This is the send LED for the service adapter "Optoscope" (see "Accessories").
"DIAG" brings you to the instrument diagnosis menu.
LED: This is the receive LED for the service adapter "Optoscope" (see "Accessories").
Help:
Press the "DIAG" and "PARAM" keys simultaneously to open the help page.
ENDRESS+HAUSER
MYCOM S CPM 153
HOLD
Measure
7.54
Select Off
MEAS CAL
DIAG PARAM
?
Mycom S CPM 153
8
9
10
11
12
13
Endress+Hauser
