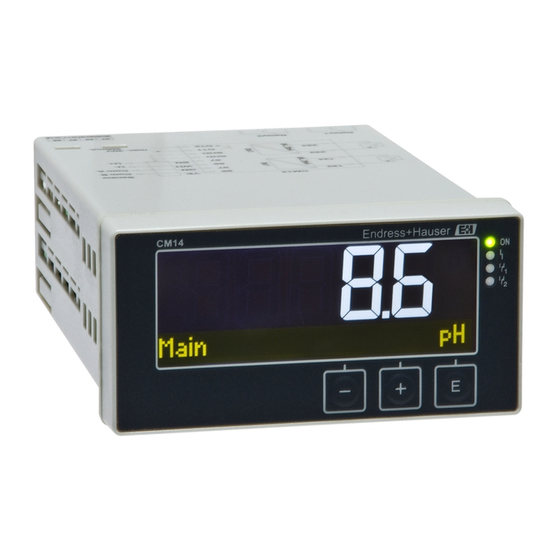

Endress+Hauser CM14 Operating Instructions Manual

Transmitter, conductivity
Hide thumbs Also See for CM14:
Table of Contents

Advertisement

Quick Links

Download this manual
Operating Instructions
CM14
Transmitter, conductivity
BA01030C/09/EN/01.11
71134233

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CM14 and is the answer not in the manual?

Questions and answers

Related Manuals for Endress+Hauser CM14

Summary of Contents for Endress+Hauser CM14

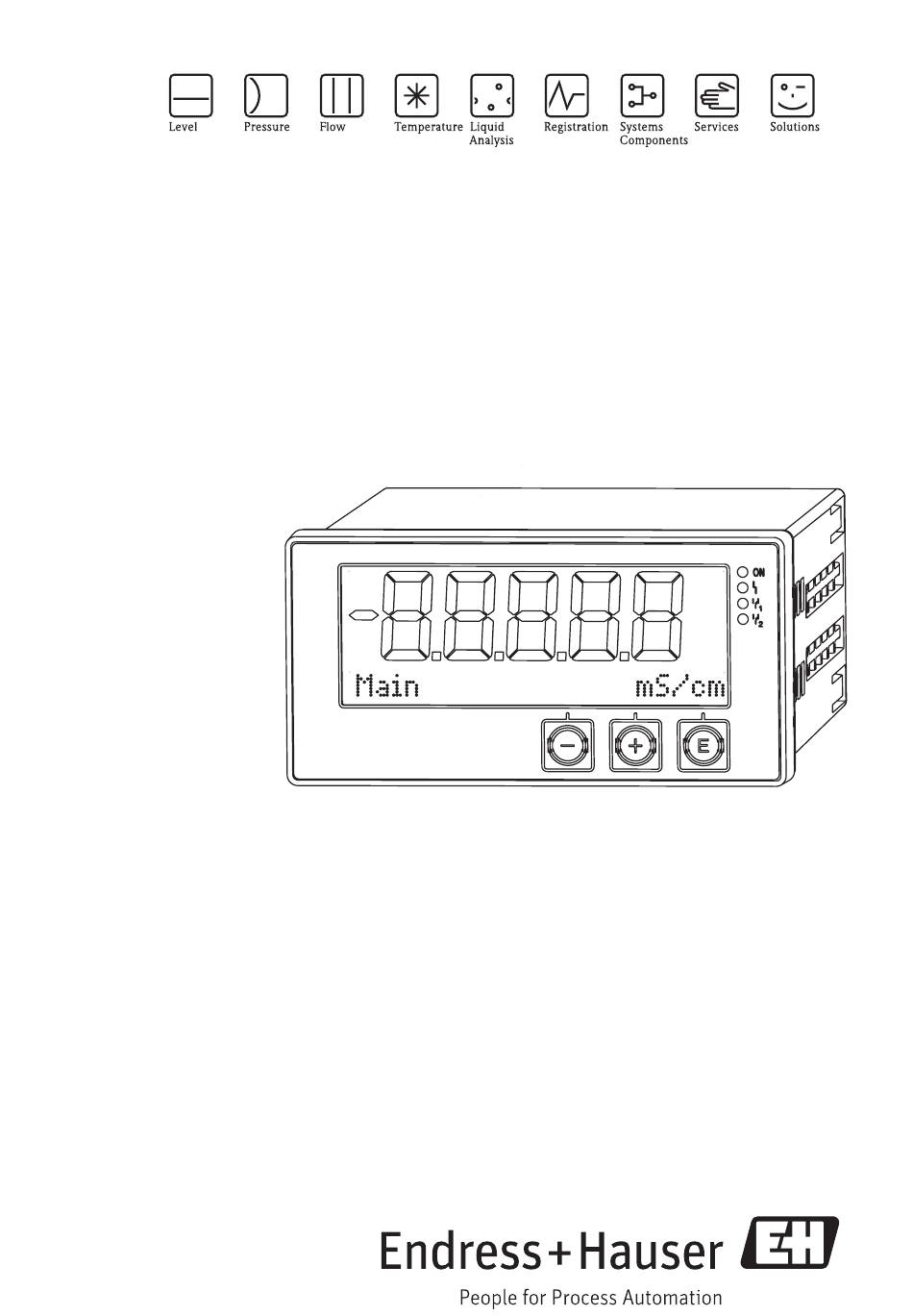

  • Page 1 Operating Instructions CM14 Transmitter, conductivity BA01030C/09/EN/01.11 71134233...

  • Page 3: Table Of Contents

    CM14 Table of contents Table of contents Safety instructions ..4 Calibration (Calibration Workplace safety ... . . 4 menu) ....26 Requirements concerning the staff .

  • Page 4: Safety Instructions

    ► Conversions to the device Unauthorized modifications to the device are not permitted and can lead to unforeseeable dangers. If, despite this, modifications are required, consult with Endress+Hauser. ► Repair To ensure continued operational safety and reliability, Carry out repairs on the device only if they are expressly permitted.

  • Page 5: Designated Use

    CM14 Safety instructions Observe the specifications in the separate supplementary documentation that is an integral ► part of these Instructions. Designated use The transmitter evaluates measured values of an analytical sensor and shows them on its multicolored display. Using the unit's outputs and limit relays, processes can be monitored and controlled.
  • Page 6 Safety instructions CM14 CAUTION Cause (/effects) Where applicable, consequences of failure to comply Avoidance measure ► Indicates a potentially hazardous situation which, if not avoided, may result in minor to ► moderate injury. NOTICE Cause (/effects) Where applicable, consequences of failure to comply Avoidance measure ►...

  • Page 7: Identification

    CM14 Identification Identification Device designation 2.1.1 Nameplate Compare the nameplate with the following illustration: A0015221 å 1 Nameplate of the transmitter (example) Device designation Order code, serial number and ID number of the device Power supply Power consumption Output variables...

  • Page 8: Certificates And Approvals

    Identification CM14 Certificates and approvals CE mark, Declaration of Conformity The process display unit is designed to meet state-of-the-art safety requirements, has been tested and left the factory in a condition in which it is safe to operate. The device meets the relevant standards and directives as per EN 61 010-1 "Safety requirements for electrical equipment for...

  • Page 9: Installation

    CM14 Installation Installation Incoming acceptance, transport, storage The permitted ambient and storage conditions must be observed. The precise specifications can be found in Section "Technical data" (® ä 35). 3.1.1 Incoming acceptance On receipt of the goods, check the following points: •...

  • Page 10: Installation Procedure

    Installation CM14 Installation procedure The required panel cutout is 92 mm x 45 mm (3.62 in x 1.77 in). A0015216 å 2 Installation in the panel 1. Screw the threaded rods (item 2) into the positions provided on the mounting frame (item 1).

  • Page 11: Wiring

    CM14 Wiring Wiring WARNING Danger from electrical voltage The entire connection of the electrical system must take place while the device is de- ► energized. Danger if protective ground is interrupted The protective ground connection must be established before any other connection is made.

  • Page 12: Connecting The Transmitter

    Wiring CM14 Connecting the transmitter A0015215 å 3 Connection diagram of the transmitter Terminal Description Terminal for Memosens cable, brown, sensor power supply U+ Terminal for Memosens cable, white, sensor power supply U- Terminal for Memosens cable, green, Com A...

  • Page 13: Post-Connection Check

    CM14 Wiring Post-connection check Device condition and specifications Notes Are the device or cables damaged? Visual inspection Electrical connection Notes Does the supply voltage match the specifications on the nameplate? 24 to 230 V AC/DC (–20 % / +10 %) 50/60 Hz...

  • Page 14: Operation

    Operation CM14 Operation The easy operating concept of the device makes it possible for users to commission the device for many applications without a printed set of Operating Instructions. Display and device status indicator/LED A0015891 å 4 Display of the device...

  • Page 15: Icons

    CM14 Operation A0010420 • Open the configuration menu • Confirm an entry • Select a parameter or submenu offered in the menu A0010421 Within the configuration menu: • Scroll step-by-step through the parameters/menu items/characters offered • Change the value of the selected parameter (increase or decrease)

  • Page 16: Operating Functions

    Operation CM14 Accept entry. If this icon is selected, the information entered is accepted at the position and the user exits the editing mode. Reject entry. If this icon is selected, the information entered is rejected and the user exits the editing mode. The text configured beforehand remains unchanged.

  • Page 17: Commissioning

    CM14 Commissioning Commissioning Installation check and switching on the device Make sure that all post-connection checks have been carried out before you commission your device: • "Installation check" checklist, (® ä 10). • "Post-connection check" checklist, (® ä 13). Once the operating voltage is applied, the green LED lights up and the display indicates that the device is operational.

  • Page 18: Extended Configuration (Extended Setup Menu)

    Commissioning CM14 Parameter Configuration options Description Out main 0/4 mA Numerical value 0.000 to 99 999 Physical value corresponding to the lower range 0.1 mS/cm limit of the analog output. When the value set is undershot, the current output is set to the saturation current 0/3.8 mA.
  • Page 19 CM14 Commissioning Parameter Configuration options Description Alarm delay 0 to 600 s Delay time for output of an alarm. Alarm conditions which are present for a shorter time than the Alarm-delay time are thus suppressed. Input Settings of the device...
  • Page 20 Commissioning CM14 Parameter Configuration options Description Band 1 to 20 % Bandwidth for the process check. width Analog outputs Settings for analog outputs. Current range 4-20 mA Current span for analog output. 0-20 mA Out main 0/4 mA Numerical value 0.000 - 99999 Physical value corresponding to the range lower 0.1 mS/cm...
  • Page 21 CM14 Commissioning to a relay. Each relay can be assigned a channel or calculated value. In "Error" mode, the relay acts as an alarm relay and switches for each error or alarm. The following settings can be made for each of the two limit values: assignment, limit, hysteresis, switching behavior, delay and fault mode.
  • Page 22 Commissioning CM14 6.4.3 Temperature compensation The conductivity of a fluid is highly temperature-dependent, as the movement of the ions and the number of dissociated molecules is temperature-dependent. To compare measured values, they have to be converted to a defined temperature. The reference temperature is 25 °C (77 °F).
  • Page 23 CM14 Commissioning A0008939 Compensation for natural water The compensation for natural water is activated using the setting Extended setup É Input É Temp. comp. = Water ISO 7888. For temperature compensation in natural water, a nonlinear function to ISO 7888 is stored.
  • Page 24 Commissioning CM14 Limit values for pharmaceutical waters as per United States Pharmacopeia (USP) and European Pharmacopoeia (EP) (only for conductive sensors) For conductive sensors, the transmitter has functions for monitoring "Water for Injection" (WFI), "Highly Purified Water" (HPW) and "Purified Water" (PW) according to the United States Pharmacopeia (USP) Part 645 and European Pharmacopoeia (EP) standards.

  • Page 25: Device Diagnostics (Diagnostics Menu)

    CM14 Commissioning The measurement is carried out in the following steps: • The transmitter measures the uncompensated conductivity and the water temperature. • If the temperature is between two table entries, the limit value for conductivity is determined by interpolation from the two neighboring points.

  • Page 26: Calibration (Calibration Menu)

    This is particularly important in the pharmaceutical industry, where traceability of the calibration to internationally recognized standards is mandatory. To calibrate its test equipment, Endress+Hauser uses the SRM (Special Reference Material) of the US government agency NIST (National Institute of Standards and Technology).

  • Page 27: Maintenance

    CM14 Maintenance Setting: In the menus, navigate to Extended Setup É Input É T.comp.cal: Select "off". This switches off the temperature compensation for the calibration. The new cell constant is calculated from the new conductivity reference solution. The method for cell constant calibration is the same for conductive and inductive conductivity.

  • Page 28: Accessories

    Accessories CM14 Accessories Sensors Conductivity sensors, conductive Condumax W CLS15D • For measurement in pure and ultrapure water and in Ex applications • Ordering according to product structure, see Technical Information TI109C/07/en Condumax H CLS16D • Hygienic sensor for measurement in pure and ultrapure water and in Ex applications •...

  • Page 29: Troubleshooting

    CM14 Troubleshooting Troubleshooting The following section provides you with an overview of possible causes of errors to provide you with an initial troubleshooting aid. 10.1 Troubleshooting instructions WARNING Danger from electrical voltage Do not operate the device for troubleshooting purposes while it is open! ►...
  • Page 30 Troubleshooting CM14 Examples: F 61 sensor elec. A0015896 M 915 USP warning A0015897 S 844 Process value A0015898 C 107 Calib. active A0015899 Diagnostic Message text Description code Sensor data invalid. Remedy: Sensor data • Update date of the transmitter •...
  • Page 31 CM14 Troubleshooting Diagnostic Message text Description code No sensor communication. Possible reasons: • No sensor connection • Faulty sensor connection • Short-circuit in the sensor cable • Short-circuit in the neighboring channel F100 Sensor comm. • Sensor firmware update canceled with an error Remedy: •...
  • Page 32 Troubleshooting CM14 Diagnostic Message text Description code F845 Device id Faulty hardware configuration Faulty parameter checksum Possible cause: F846 Param error Firmware update Remedy: Reset parameters to factory defaults F847 Couldn't save param Parameters could not be saved F848 Calib AO1...
  • Page 33 CM14 Troubleshooting Diagnostic Message text Description code Measured value outside the specified range. Possible reasons: • Sensor in air • Air cushion in the assembly • Incorrect sensor inflow S844 Process value • Sensor defective Remedy: • Increase process value •...

  • Page 34: Spare Parts

    Spare parts A0015745 å 6 Spare parts of the device Item no. Description Order no. Housing front + foil, incl. keyboard CM14, without display XPM0004-DA CPU/Display board CM14 conductivity conductive XPM0004-CK CPU/Display board CM14 conductivity inductive XPM0004-CL Mainboard 24-230VDC/AC, CM14...

  • Page 35: Return

    CM14 Technical data 10.4 Return For a return, e.g. in case of repair, the device must be sent in protective packaging. The original packaging offers the best protection. Repairs must only be carried out by your supplier's service organization. Please enclose a note describing the fault and the application when sending the unit in for repair.
  • Page 36 Technical data CM14 11.2.4 Alarm output The alarm output is designed as an "open collector." In normal operation the alarm output is closed. In the event of a fault (F-fault, device without current) the "open collector" opens. Current max. 200 mA Voltage max.
  • Page 37 CM14 Technical data 11.5 Wiring 11.5.1 Electrical connection A0015303 Connection Description Terminal for Memosens cable, brown, sensor power supply U+ Terminal for Memosens cable, white, sensor power supply U- Terminal for Memosens cable, green, Com A Terminal for Memosens cable, yellow, Com B...
  • Page 38 Technical data CM14 Connection Description Terminal for analog output 1, - Terminal for analog output 2, + Terminal for analog output 2, - R11, R12, R13 Terminal for relay 1 R21, R22, R23 Terminal for relay 2 11.5.2 Supply voltage...
  • Page 39 CM14 Technical data Orientation The orientation is determined by the readability of the display. Max. viewing angle range +/- 45° from the central display axis in every direction. A0010351 å 7 Panel cutout 11.8 Environment 11.8.1 Ambient temperature range –10 to +60 °C (14 to 140 °F) 11.8.2...
  • Page 40 Technical data CM14 11.9 Mechanical construction 11.9.1 Dimensions A0015925 å 8 Dimensions of the transmitter 11.9.2 Weight 0.3 kg (0.66 lbs) 11.9.3 Material Housing, tube: Polycarbonate Front foil: Polyester, UV-resistant 11.9.4 Terminals Max. 2.5 mm² (22-14 AWG; torque 0.4 Nm (3.5 lb in)) line, relay...
  • Page 41 CM14 Technical data 11.10 Display and operating elements 11.10.1 Operating elements A0018699 å 9 Display and operating elements LC display for measured values and configuration data Status LED power supply connected Status LED alarm function Status LED limit function relay 1...
  • Page 42 Technical data CM14 Other standards and guidelines • IEC 60529: Degree of protection by housing (IP code) • IEC 61010-1: 2001 Cor 2003 Safety requirements for electrical equipment for measurement, control and laboratory use...

  • Page 43: Index

    CM14 Index Index Calibration Cell constant ....26 Diagnostic messages ....29 Display icons .
  • Page 44 BA01030C/09/EN/01.11 71134233 EH-COSIMA...
