Mycom S CPM 153
CODE
T6
T7
T8
T9
T10
T11
T12
Endress+Hauser
DISPLAY
Hold
Dual 1+2
channel
Look-ahead
Hold
pH electr.typeK1
Hold
pH electr.typeK2
Hold
Sensor ground
solution ground
no solution ground
Hold
Hold
Hold
CHOICE INFO
(default = bold)

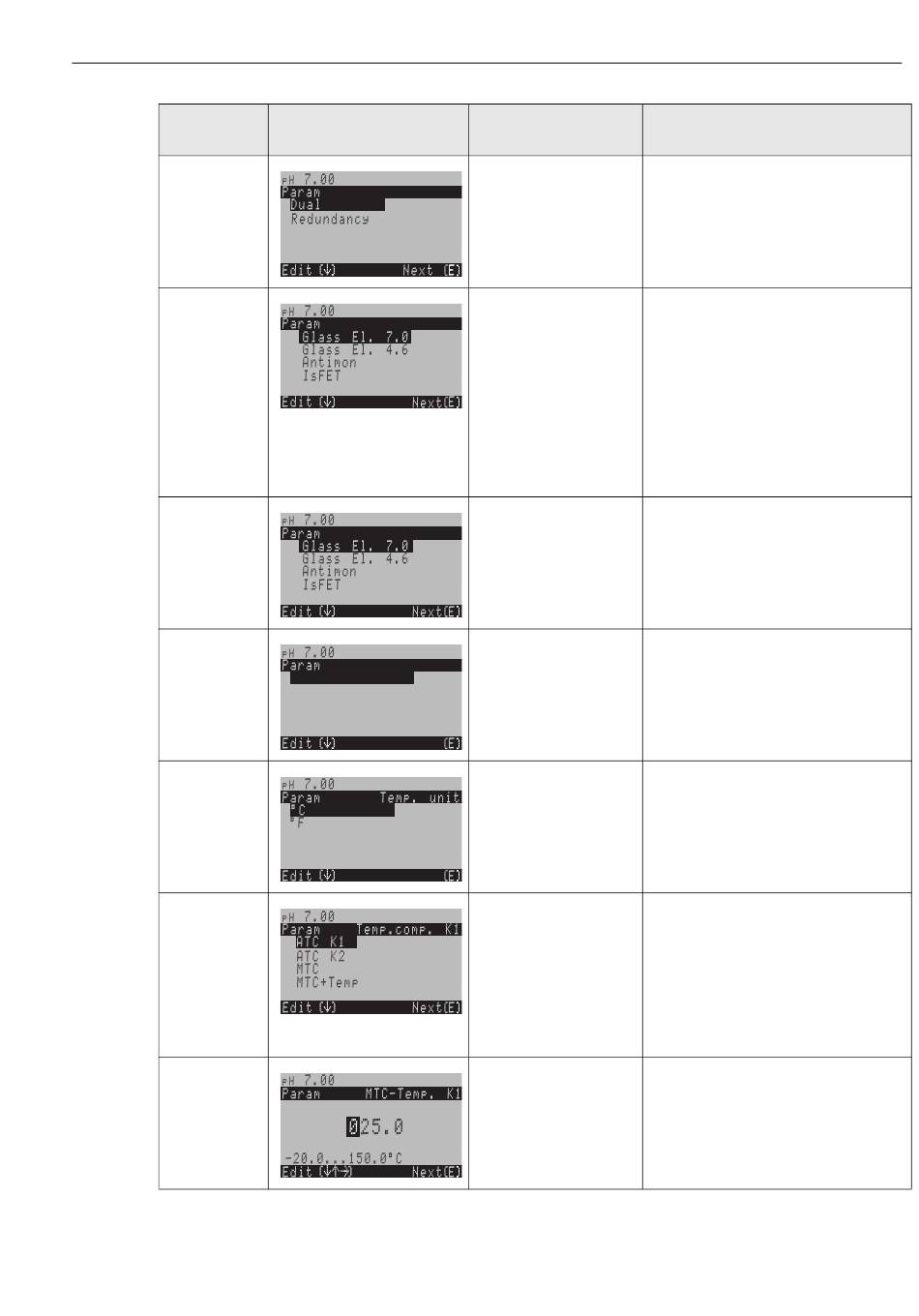

Dual channel Selection (only two circuit)
Redundancy Dual channel: 2 electrodes work comple-
Look-ahead tely independently of each other.
Redundancy: Detection of electrode wear.
Look-ahead: Early reaction to flow and pH
changes.
For description, see note s. page 30.
Glass el. 7.0 Select electrode type 1
!
Glass el. 4.6 (only pH)´
Antimony
IsFET
• In the event of a change from glass
• Dependent on the ordered measuring
Glass el. 7.0 Select electrode type 2
Glass el. 4,6 (only with pH, two circuit)
Antimony
IsFET
solution ground Select connection type
no solution ground solution ground = with potential matching
connection (PML)
no solution ground = without PML
°C Select temperature display
°F
ATC K1 Select temperature compensation K1
ATC K2 ATC = automatic temperature
MTC compensation
MTC+Temp MTC = manual temp. comp. (with fixed
temperature, entered in Field GAA2)
MTC+Temp. = as MTC. On the display
however, the value which appears is what
the temperature sensor measures in the
medium.
025.0°C
Temperature value K1
(only with pH and selection of MTC or
MTC+Temp. in Field T11)
6 Start-up
Note!
or antimony electrode to IsFET, the
temperature sensor is reset to Pt 1000 as
a default. Conversely, Pt 100 is selected.
input, "Glass el. 7.0" or "IsFET" is dis-
played as default value.
27
