KA00457C/07/EN/14.13
71210657
Products
Brief Operating Instructions
Memograph CVM40
Graphic transmitter for inline photometers and data
manager
These instructions are Brief Operating Instructions. For detailed
information please read the Operating Instructions.
Solutions
Services

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Memograph CVM40 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Endress+Hauser Memograph CVM40

Summary of Contents for Endress+Hauser Memograph CVM40

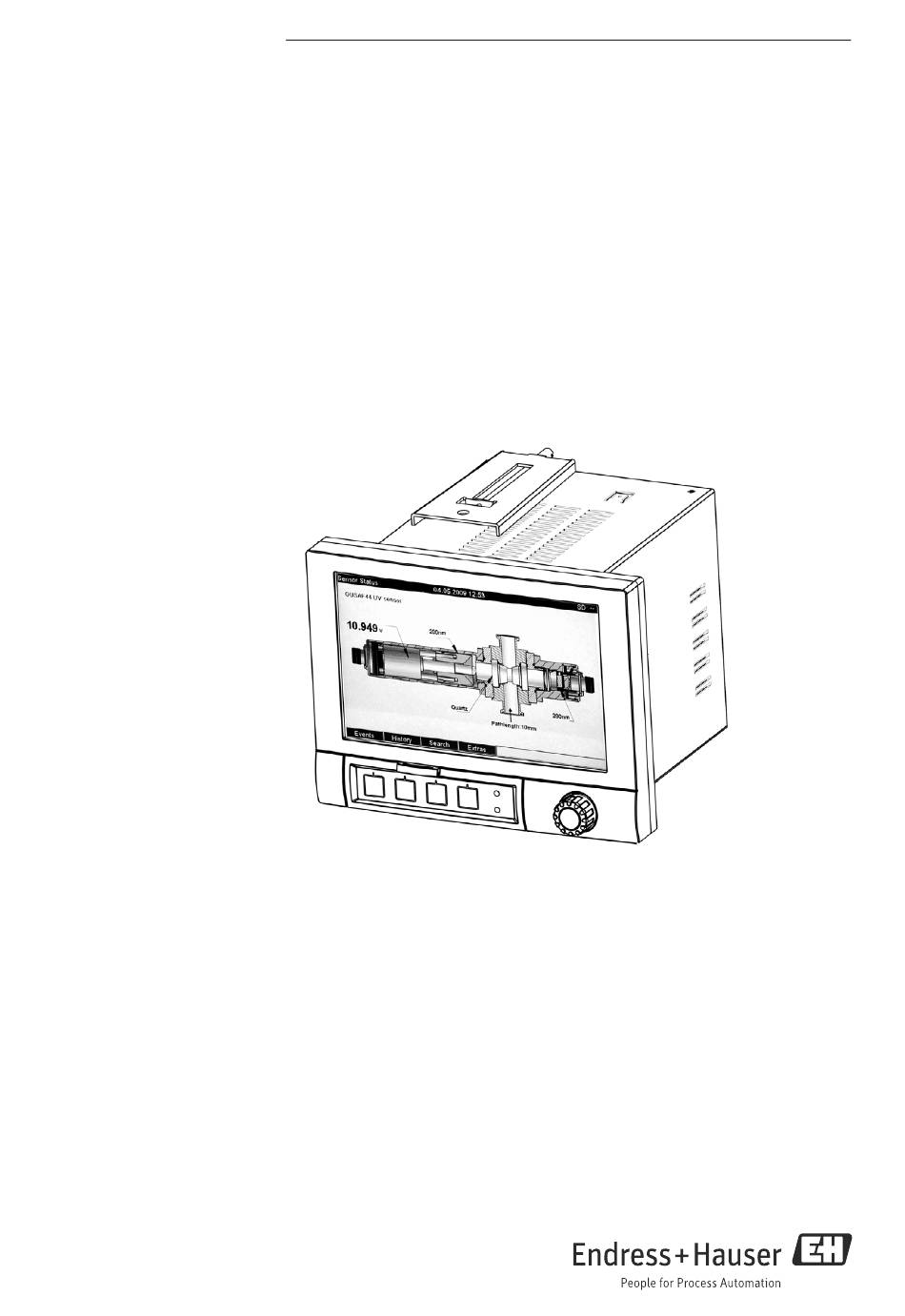

  • Page 1 Products Solutions Services KA00457C/07/EN/14.13 71210657 Brief Operating Instructions Memograph CVM40 Graphic transmitter for inline photometers and data manager These instructions are Brief Operating Instructions. For detailed information please read the Operating Instructions.

  • Page 2: Table Of Contents

    Table of contents Memograph CVM40 Table of contents 1 About this document ............3 1.1 Warnings .

  • Page 3: About This Document

    Memograph CVM40 About this document About this document Warnings The structure, signal words and safety colors of the signs comply with the specifications of ANSI Z535.6 ("Product safety information in product manuals, instructions and other collateral materials"). Safety message structure Meaning This symbol alerts you to a dangerous situation.

  • Page 4: Basic Safety Instructions

    Basic safety instructions Memograph CVM40 Basic safety instructions Requirements for the personnel ‣ Installation, commissioning, operation and maintenance of the measuring system must only be carried out by trained technical personnel. ‣ The technical personnel must be authorized to perform the tasks by the owner-operator.

  • Page 5: Operational Safety

    Memograph CVM40 Basic safety instructions Operational safety ‣ Prior to commissioning the entire measuring point, check that all connections are correct. Make sure that electric cables and hose connections are not damaged. ‣ Do not commission damaged products. Protect them against unintentional startup. Label and identify the damaged product as defective.

  • Page 6: Identification

    Identification Memograph CVM40 Identification Scope of delivery The scope of delivery comprises: • Device (with terminals, as per your order) • 2 fastening clips • USB interface cable, length 1.5 m (4.9 ft) • Optional secure digital (SD) card (card not in device but is supplied) •...

  • Page 7: Installation

    Memograph CVM40 Installation Installation Measuring system A complete measuring system comprises: • Memograph M CVM40 • An optical sensor, e.g. OUSAF44 • Flow assembly, e.g. OUA260 • Cable set, e.g. OUK40 a0012117 Fig. 1: Example of a measuring system Cable set OUK40...

  • Page 8: Installation Conditions

    Installation Memograph CVM40 Installation conditions Working temperature range: -10 to 50 °C (14 to 122 °F), max. 75% rel. humidity without condensation. Note the following when mounting: • To avoid heat accumulation, please always ensure that the unit is sufficiently cooled.

  • Page 9: Installation Instructions

    Memograph CVM40 Installation Installation instructions 4.3.1 Mounting the device Panel cutout and installation / design, dimensions 216.03 (8.51) 199.2 (7.84) 137.5 (5.41) (1.14) 136 (5.35) 39.07 (1.54) 195.23 (7.69) 196.2 (7.72) 58.2 (2.29) 138 (5.43) mm (inch) a0012075 Fig. 2: Dimensions / panel cutout...
  • Page 10 Installation Memograph CVM40 Mounting dimensions: • Installation depth: approx. 216 mm (8.51") (incl. terminals) +0.04 +0.04 • Panel cutout: 138 x 138 mm (5.43 x 5.43 ") • Panel thickness: 2 to 40 mm (0.08 to 1.58") • Max. viewing angle range: from the central display axis 50° in all directions •...

  • Page 11: Wiring

    Memograph CVM40 Wiring Wiring Electrical connection WARNING Device is energized Incorrect wiring can result in injury or fatality ‣ The electrical connection may only be established by an electrical technician. ‣ The electrical technician must have read and understood these Operating Instructions and must follow the instructions they contain.

  • Page 12: Wiring Diagram

    Wiring Memograph CVM40 Wiring diagram Memograph CVM40 sensor terminal chart Parameter Sensor 1 optical channel 2 optical channels 4 optical channels OUSAF11 S1 / S2 S1 / S3 OUSAF12 S1 / S2 S1 / S3 Absorption Color and NIR OUSAF21 S1 &...
  • Page 13 Memograph CVM40 Wiring a0012921 Fig. 3: Wiring diagram with terminals for lamps and sensors Lamp voltage adjustment Turn clockwise: voltage decrease Turn counter-clockwise: voltage increase V1.1: Lamp voltage + (Yellow bold) V1.3: Lamp sense + (Yellow thin) V1.4: Lamp sense - (Black thin) V1.2: Lamp voltage - (Black bold)
  • Page 14 Wiring Memograph CVM40 Lamp voltage adjustment (Vx Adj.): • Turn clockwise to decrease voltage. • Turn counter-clockwise to increase voltage. Lamp voltage sense tool: The lamp voltage sense tool allows to read the lamp voltage on the display of CVM40 without the cable and sensor connected.
  • Page 15 Memograph CVM40 Wiring a0012068 Fig. 5: Wiring diagram Power supply Thermocouples (TC) Binary inputs (D) Voltage (U) Analog outputs (O) Current (I) Analog inputs Resistance thermometer (RTD) Pulse / frequency Endress+Hauser...

  • Page 16: Terminal Assignment

    Wiring Memograph CVM40 Terminal assignment NOTICE High-energy transients occur when using long signal cables ‣ Connect a suitable overvoltage protection (e.g. E+H HAW560/562). ‣ Use shielded signal lines for serial interfaces! 5.3.1 Cable specification, spring terminals All connections on the rear of the unit are designed as screw or spring terminal blocks with reverse polarity protection.

  • Page 17: Commissioning And Operation

    Memograph CVM40 Commissioning and operation Commissioning and operation When ordered as a complete measuring system the unit is factory-calibrated and preset with the related sensor and armature. Operation of measuring loop based on basic settings is guaranteed when switching on the device.
  • Page 18 Commissioning and operation Memograph CVM40 Operating Operating function element (Display mode = measured value display) (Item No.) (Setup mode = operating in the Setup menu) "Navigator" jog/shuttle dial for operating with additional press function. In the Display mode: turn the dial to switch between the various signal groups. Press the dial to display the main menu.

  • Page 19: Switching On

    Memograph CVM40 Commissioning and operation Operating Operating function element (Display mode = measured value display) (Item No.) (Setup mode = operating in the Setup menu) LED at SD slot Yellow LED lit when the unit writes to the SD card or reads it.

  • Page 20: Setup

    Commissioning and operation Memograph CVM40 Setup 6.3.1 General information When ordered as a complete measuring system the unit is factory-calibrated and preset with the related sensor and armature. Operation of measuring loop based on basic settings is guaranteed when switching on the device.
  • Page 21 Memograph CVM40 Commissioning and operation Procedure for unit configuration/setup Start ▾ System settings (language, date/time, communication, safety, etc.) ▾ Inputs (universal inputs: signal type, input range, etc.) ▾ Inputs (digital inputs: function, designation, etc.) ▾ Inputs for mathematics channels ▾...
  • Page 22 Commissioning and operation Memograph CVM40 Setup - Inputs submenu: Optical sensors Procedure for the signal settings of the optical sensors: Start ▾ Select sensor type ▾ Enter optical pathlength ▾ Enter the channel name ▾ Enter attached sensor information (order code and serial number) ▾...
  • Page 23 Memograph CVM40 Commissioning and operation "Inputs" Configurable parameters menu (factory settings are highlighted in bold) items View or change settings of the connected optical sensor for the selected channel. Submenu: Optical The unit can be equipped with a maximum of 2 optical sensors.
  • Page 24 Commissioning and operation Memograph CVM40 "Inputs" Configurable parameters menu (factory settings are highlighted in bold) items Plot type The optical sensors are scanned at 100ms cycles. Depending on the save cycle, the selected data are determined from the scanned values and saved (e.g. with a save cycle of 1 min., the average of 600 values (10x60)
  • Page 25 Memograph CVM40 Commissioning and operation "Inputs" Configurable parameters menu (factory settings are highlighted in bold) items NIST filter Re-cert. date Deadline for recertification of NIST filter. You will be (with Easycal™ only) reminded when this date arrives. Filter calibration Calibration method using traceable clip-on filters...
  • Page 26 Commissioning and operation Memograph CVM40 "Inputs" Configurable parameters menu (factory settings are highlighted in bold) items Meas. ch. ident. Enter an identification text for the measurement channel. (OUSAF21/22/23 only) If zero point adjustment or calibration is needed, refer to the sensor manual or select in the main menu of CVM40 "Diagnosis/simulation"...

  • Page 27: Index

    Memograph CVM40 Index Adjustment Operating language ..... . 19 Lamp voltage......14 Operation .
  • Page 28 www.addresses.endress.com...
