3 Installation
10

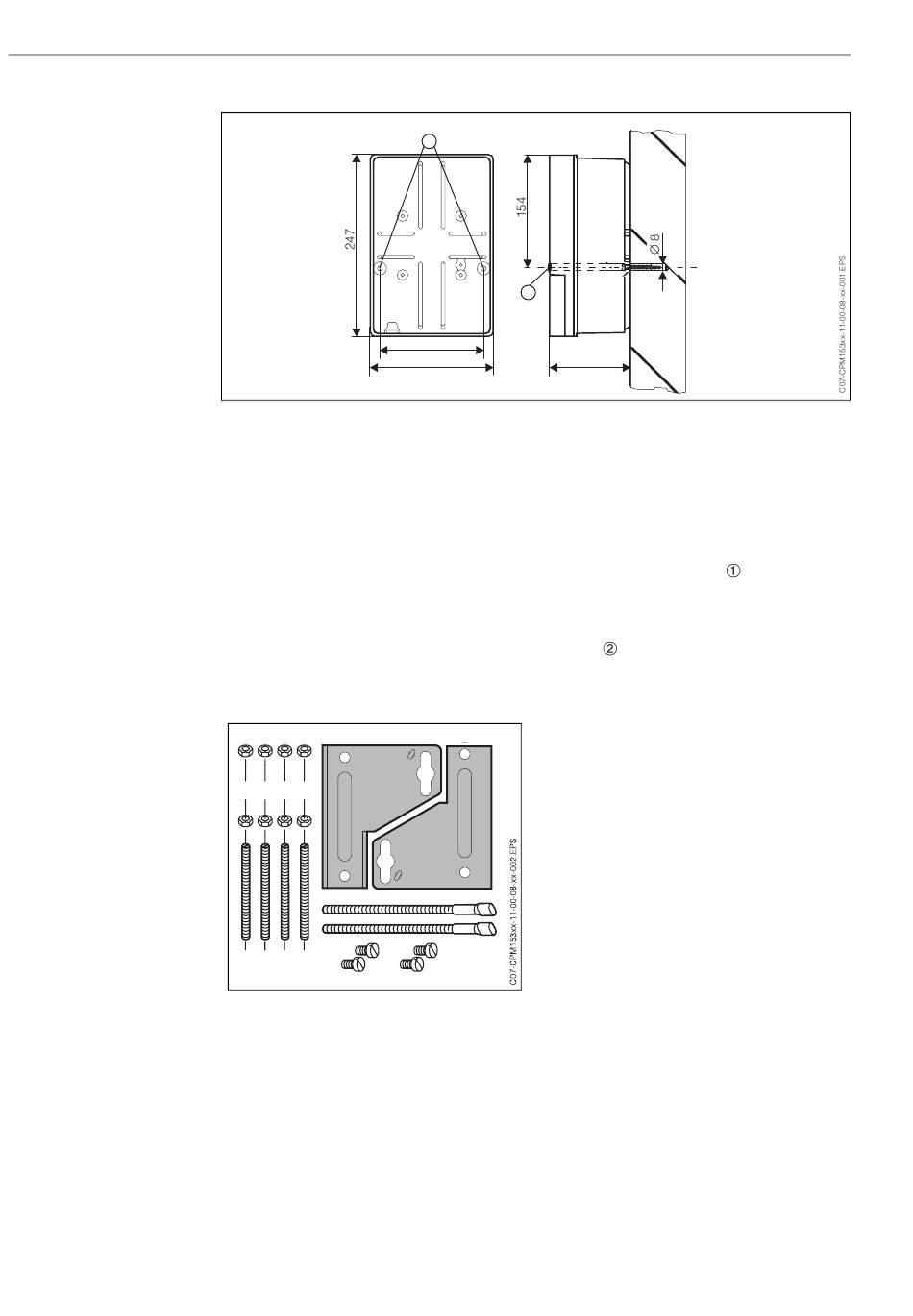

Fig. 2:
Dimensions for wall mounting: Fixing screw: ø 6 mm
Wall plug: ø 8 mm
1: Fixing drill holes
2: Plastic cover cap
For the wall mounting of the transmitter proceed as follows:
1.
Prepare drill holes acc. to Fig. 2.
2.
Push both fixing screws through the appropriate fixing drill holes
– Fixing screws (M6): max. Ø 6.5 mm
– Screw head: max. Ø 10.5 mm
3.
Mount the transmitter housing on the wall as shown.
4.
Cover the drill holes with the plastic cover caps
3.3.3
Post mounting and panel mounting
Fig. 3:
Mounting kit Mycom S CPM 153
1
2
142
167
100
Mount the parts of the mounting kit (see
accompanying figure) at the back of the
housing as depicted in Fig. 4.
Required mounting cutout:
161 x 241 mm
Installation depth: 134 mm
Pipe diameter: max. 70 mm
Mycom S CPM 153
.
.
Endress+Hauser
