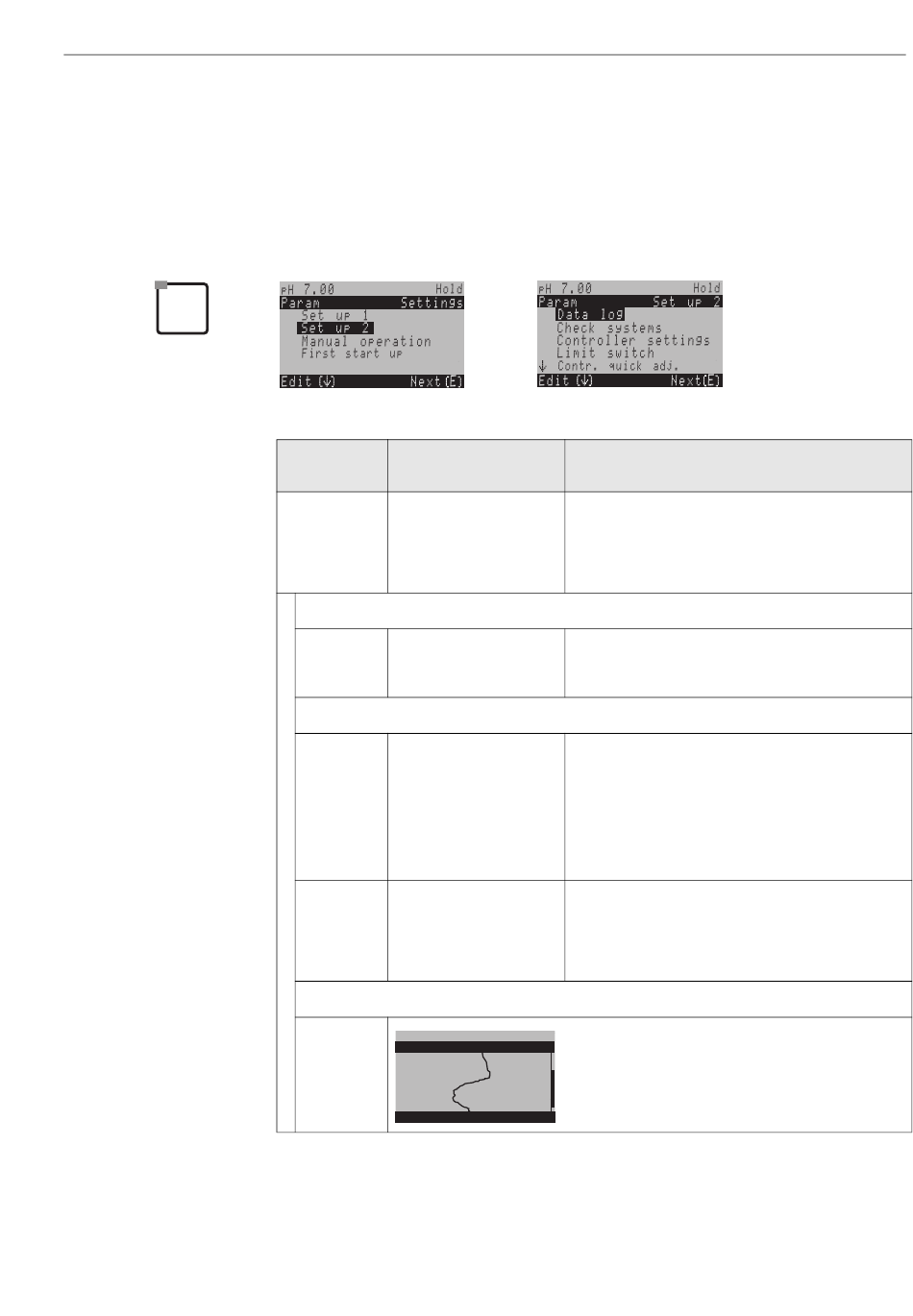

6.5.10 Set up 2 – Data Log
The data logger records two freely selectable parameters with their date and time. You
can start it using the measuring menus:
Use the arrow keys to scroll through the measuring menus until to you reach the Record
mode of the data logger. Pressing the "Enter" key brings you to the Scroll mode of the
data logger. Here you can open the saved measured values with their date and time.
To enter the menu, proceed as follows:
CODE CHOICE
(default = bold)
K1 Measuring interval
Data logger1
Data logger2
DataLog View 1
DataLog View 2
Measuring interval:
KA1 00005s
(2 ... 36000 s)
Data logger 1 (or 2):
KB1 / KC1 Meas-
ured
value:
Function:
KB2 / KC2 Min:
Max:
DataLog View 1 (or 2)
KD1
pH 7.54
Para
7.54
Select [ ¯]
⇒
INFO
Data logger settings
Using the data logger you can record
• one parameter with 500 sequential measuring points or
• two parameters each with 500 sequential measuring
points.
Enter measuring interval
Enter the time interval after which the next measured
value is recorded in the data logger.
pH/redox K1 Selection
on Set the measured variable for recording (pH/redox ,
!
temp.) and the activate using the "on" function.
Note!
The data logger starts recording the measured value
when you return to operation.
12.00pH/-500mV
Set recording range
12.00pH/500mV Values outside the defined range are not recorded.
(-2...16pH/
-1500...1500mV)
View of recorded data
DataLog View 1
12 15 35
01 04 2001
