8 Troubleshooting
#
#
"
106
8.4.2 Codings
Current outputs active or passive:
For instrument versions CPM153-xxA/Bxx (2 current outputs) and CPM153-xxC/Dxx
(2 current outputs with HART) the current outputs can be operated as active or passive.
Jumpers on the controller module M3CH allow recoding.
For non-Ex instruments, these modules may be recoded to active outputs.
Warning!
Ex instruments must not be recoded. Doing so will cause loss of intrinsic safety!

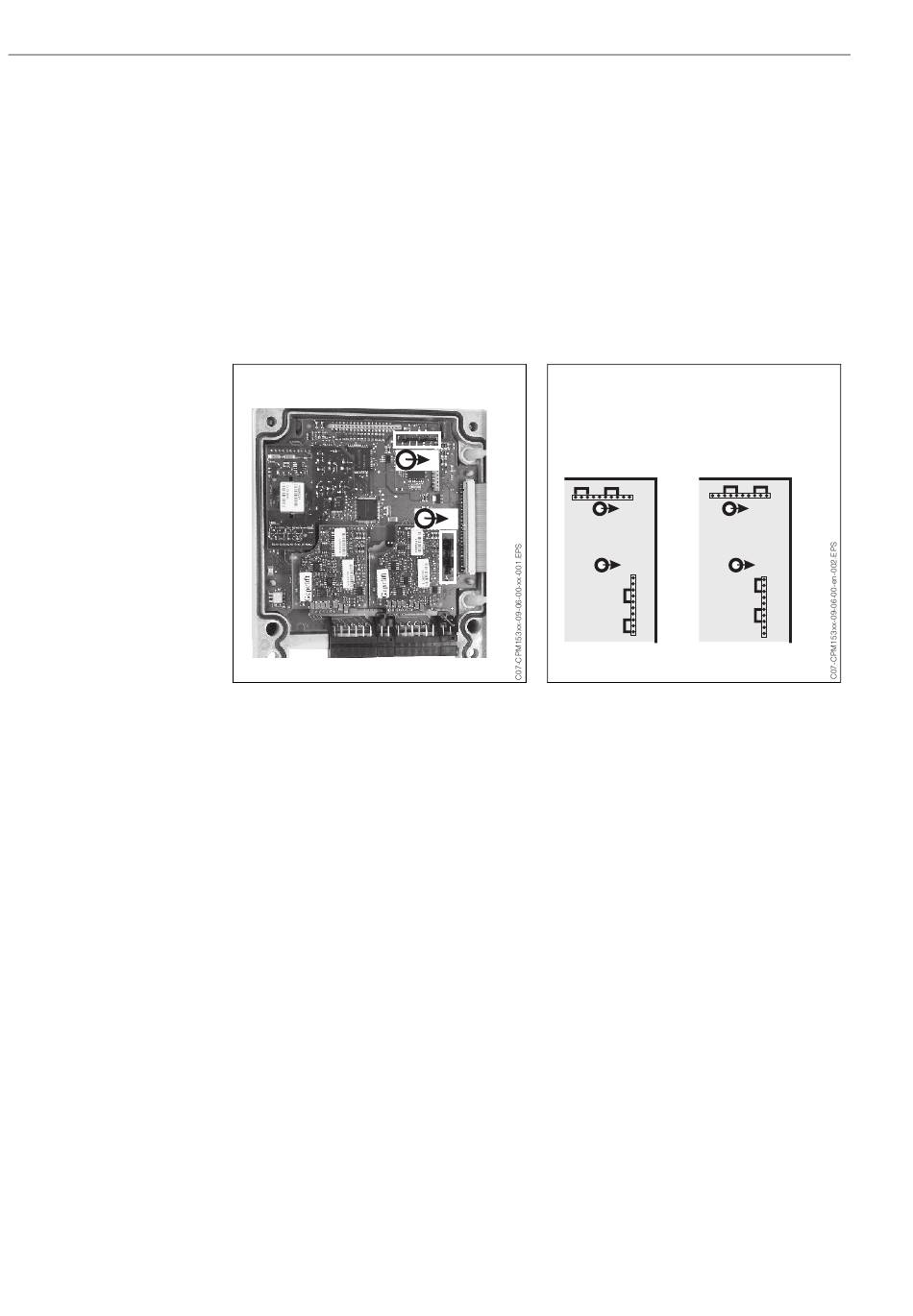

Fig. 30: Coding for active current outputs
(Inner view of the housing's upper side)
8.5

Replacing the device fuses

8.5.1 For non-Ex devices
Warning!
Danger to personnel. Before replacing the fuse, make sure the device is voltage-free.
• Position of the fuse holder: "A" in Fig. 29.
• Use only a 5 x 20 mm fine-wire fuse with 3.15 mA, semi time-lag fuse. All other fuses
are not permitted.
Caution!
If the fuse should fail again, have the device checked.
8.6

Disposal

The Mycom S CPM 153 is a transmitter which contains electronic components and
PCBs and therefore must be disposed of as electronic refuse. Please keep to the local
regulations.
Jumper setting
passive output
1
2
Fig. 31:
current outputs
Mycom S CPM 153
Jumper setting
active output
1 1
1 1
2 2
1 1
Coding for passive or active
