Mycom S CPM 153
!
symmetrical
IsFET CPS 401
ϑ pH /
mV
)
PA
Ref.
13 SRC
11
)
A
B
Endress+Hauser

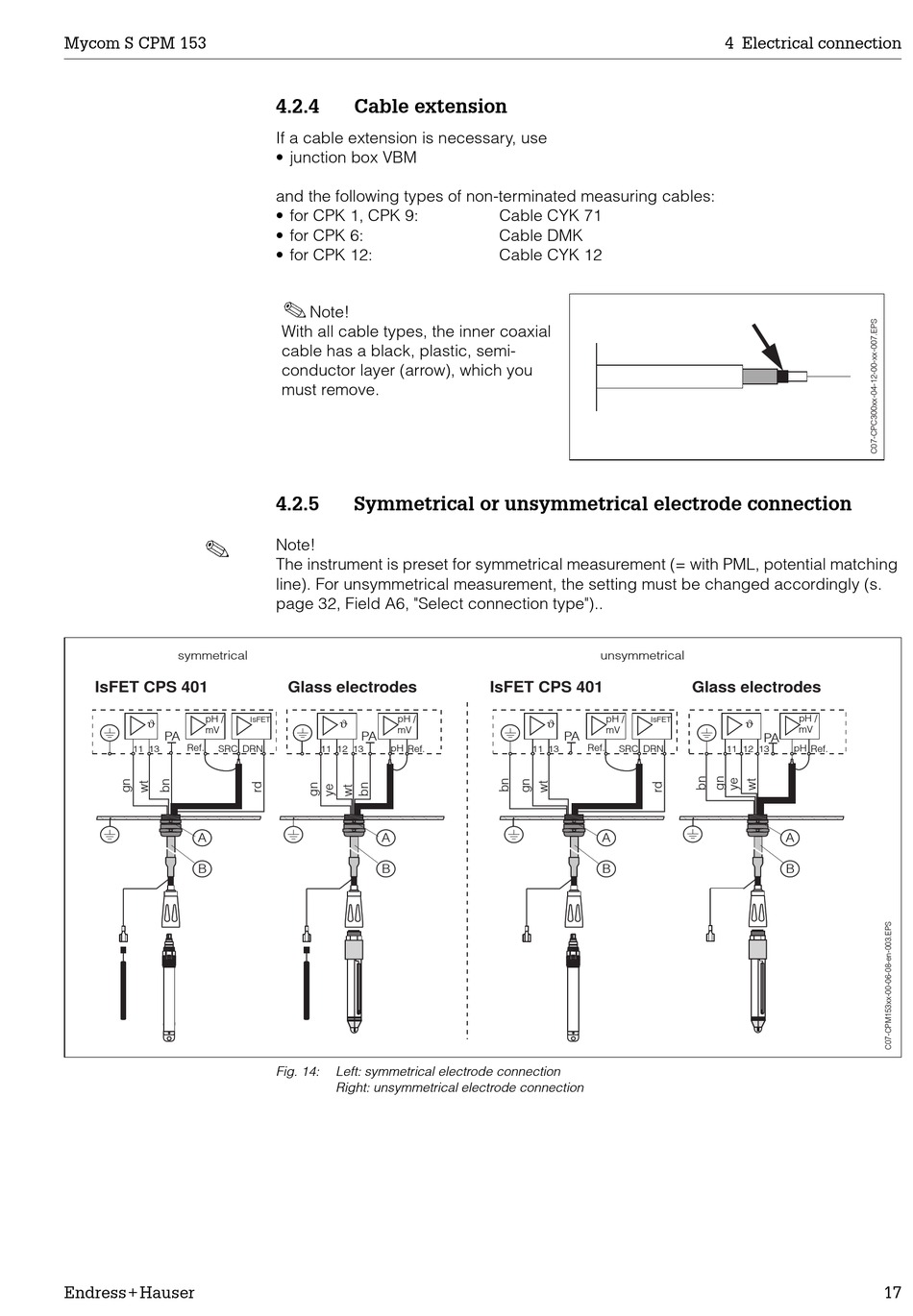

4.2.4 Cable extension
If a cable extension is necessary, use
• junction box VBM
and the following types of non-terminated measuring cables:
• for CPK 1, CPK 9:
• for CPK 6:
• for CPK 12:
!
Note!
With all cable types, the inner coaxial
cable has a black, plastic, semi-
conductor layer (arrow), which you
must remove.
4.2.5 Symmetrical or unsymmetrical electrode connection
Note!
The instrument is preset for symmetrical measurement (= with PML, potential matching
line). For unsymmetrical measurement, the setting must be changed accordingly (s.
page 32, Field A6, "Select connection type")..
Glass electrodes
ϑ pH /
IsFET
mV
)
PA
DRN 11 12 13 pH Ref.
)
A
B
Fig. 14: Left: symmetrical electrode connection
Right: unsymmetrical electrode connection
Cable CYK 71
Cable DMK
Cable CYK 12
unsymmetrical
IsFET CPS 401
ϑ pH /
IsFET
mV
)
PA
Ref.
13 SRC DRN
11
)
A
B
4 Electrical connection
Glass electrodes
ϑ pH /
mV
)
PA
11 12 13 pH Ref.
)
A
B
17
