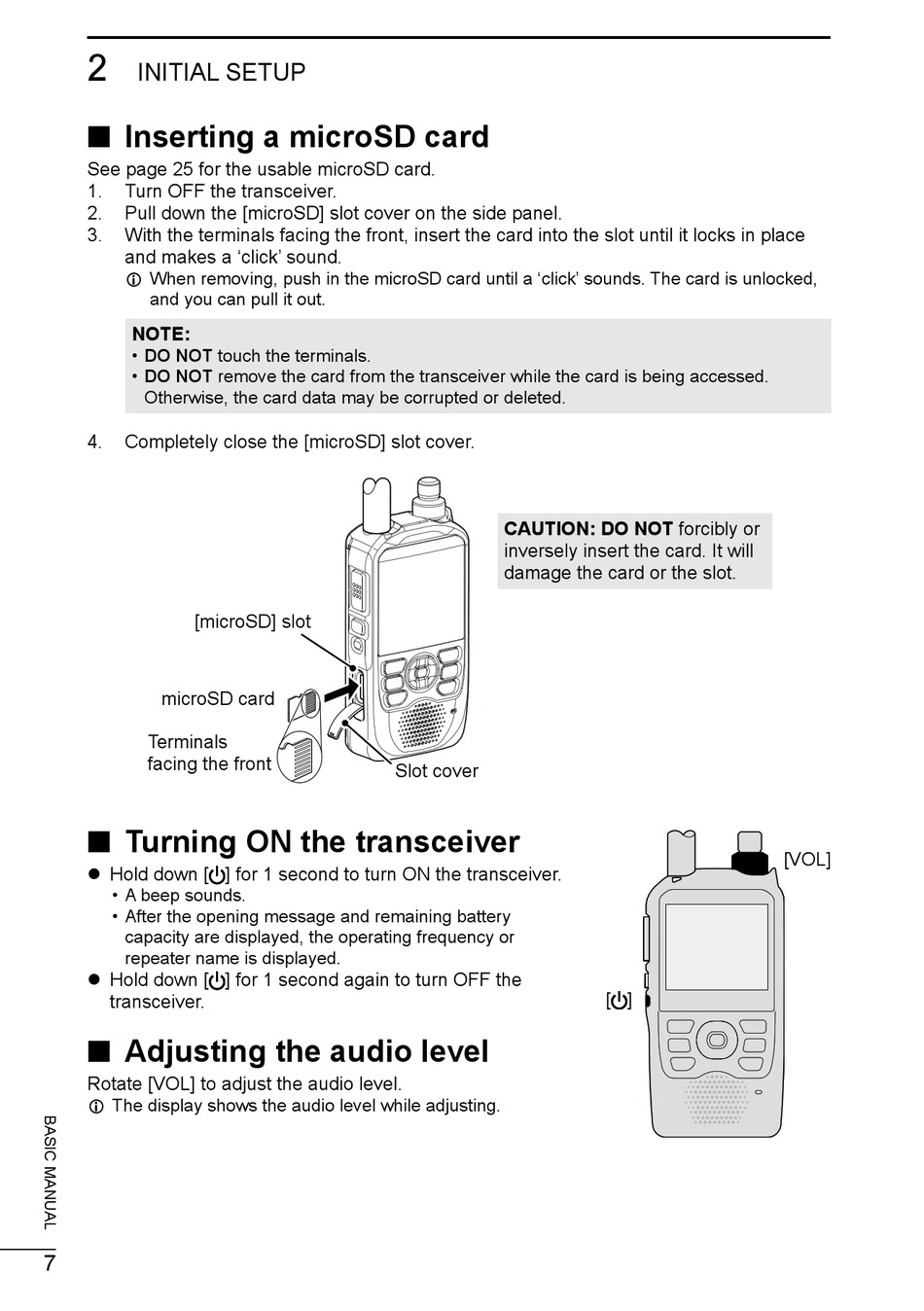

INITIAL SETUP

■ Inserting a microSD card

See page 25 for the usable microSD card.
1. Turn OFF the transceiver.
2. Pull down the [microSD] slot cover on the side panel.
3. With the terminals facing the front, insert the card into the slot until it locks in place
and makes a 'click' sound.
L When removing, push in the microSD card until a 'click' sounds. The card is unlocked,
and you can pull it out.
NOTE:
• DO NOT touch the terminals.
• DO NOT remove the card from the transceiver while the card is being accessed.
Otherwise, the card data may be corrupted or deleted.
4. Completely close the [microSD] slot cover.
[microSD] slot
microSD card
Terminals
facing the front

■ Turning ON the transceiver

z Hold down [ ] for 1 second to turn ON the transceiver.
• A beep sounds.
• After the opening message and remaining battery
capacity are displayed, the operating frequency or
repeater name is displayed.
z Hold down [ ] for 1 second again to turn OFF the
transceiver.

■ Adjusting the audio level

Rotate [VOL] to adjust the audio level.
L The display shows the audio level while adjusting.
7
CAUTION: DO NOT forcibly or
inversely insert the card. It will
damage the card or the slot.
Slot cover
[ ]
[VOL]
