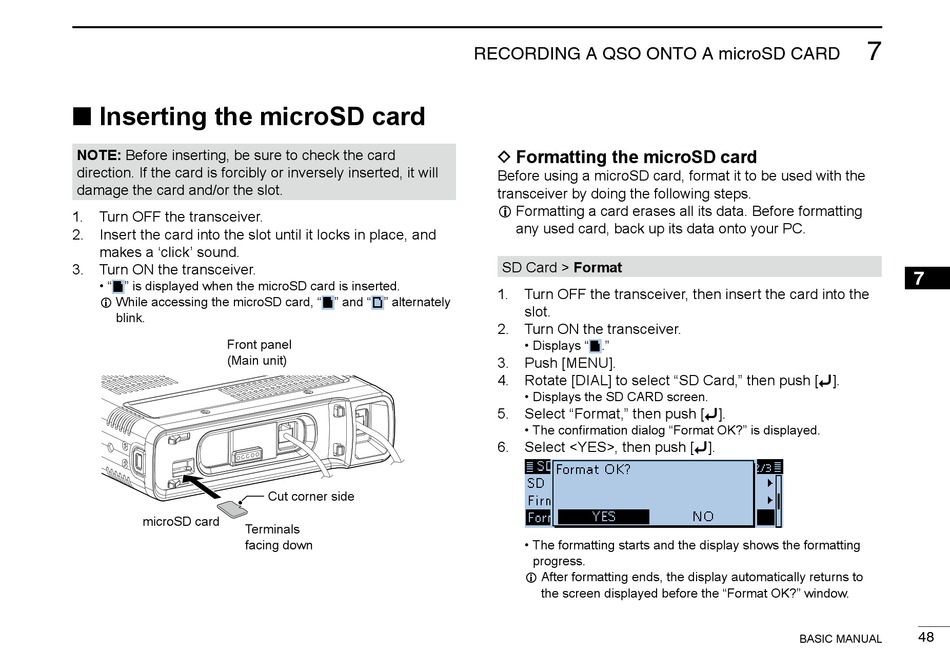

■ Inserting the microSD card

NOTE: Before inserting, be sure to check the card
direction. If the card is forcibly or inversely inserted, it will
damage the card and/or the slot.
1. Turn OFF the transceiver.
2. Insert the card into the slot until it locks in place, and
makes a 'click' sound.
3. Turn ON the transceiver.
• " " is displayed when the microSD card is inserted.
L While accessing the microSD card, " " and " " alternately
blink.
Front panel
(Main unit)
microSD card
Terminals
facing down
Cut corner side
RECORDING A QSO ONTO A microSD CARD
D Formatting the microSD card
Before using a microSD card, format it to be used with the
transceiver by doing the following steps.
L Formatting a card erases all its data. Before formatting
any used card, back up its data onto your PC.
SD Card > Format
1. Turn OFF the transceiver, then insert the card into the
slot.
2. Turn ON the transceiver.
• Displays " ."
3. Push [MENU].
4. Rotate [DIAL] to select "SD Card," then push [ï].
• Displays the SD CARD screen.
5. Select "Format," then push [ï].
• The confirmation dialog "Format OK?" is displayed.
6. Select <YES>, then push [ï].
• The formatting starts and the display shows the formatting
progress.
L After formatting ends, the display automatically returns to
the screen displayed before the "Format OK?" window.
