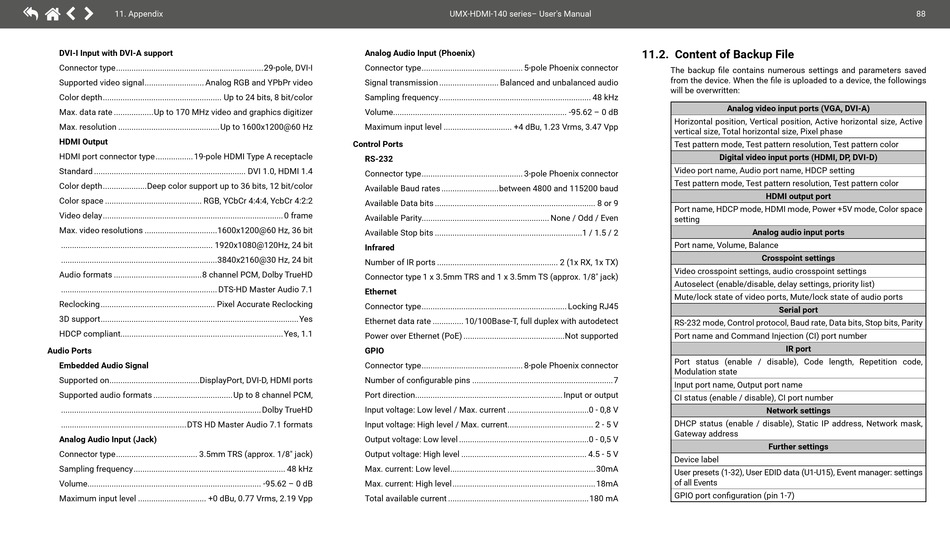

11. Appendix
DVI-I Input with DVI-A support
Connector type ...................................................................29-pole, DVI-I
Supported video signal ........................... Analog RGB and YPbPr video
Color depth ...................................................... Up to 24 bits, 8 bit/color
Max. data rate ..................Up to 170 MHz video and graphics digitizer
Max. resolution .............................................. Up to 1600x1200@60 Hz
HDMI Output
HDMI port connector type ................. 19-pole HDMI Type A receptacle
Standard ..................................................................... DVI 1.0, HDMI 1.4
Color depth ....................Deep color support up to 36 bits, 12 bit/color
Color space ............................................ RGB, YCbCr 4:4:4, YcbCr 4:2:2
Video delay .................................................................................. 0 frame
Max. video resolutions .................................1600x1200@60 Hz, 36 bit
..................................................................... 1920x1080@120Hz, 24 bit
.......................................................................3840x2160@30 Hz, 24 bit
Audio formats ........................................8 channel PCM, Dolby TrueHD
....................................................................... DTS-HD Master Audio 7.1
Reclocking .................................................... Pixel Accurate Reclocking
3D support ..........................................................................................Yes
HDCP compliant..........................................................................Yes, 1.1
Audio Ports
Embedded Audio Signal
Supported on .........................................DisplayPort, DVI-D, HDMI ports
Supported audio formats ....................................Up to 8 channel PCM,
........................................................................................... Dolby TrueHD
.........................................................DTS HD Master Audio 7.1 formats
Analog Audio Input (Jack)
Connector type ..................................... 3.5mm TRS (approx. 1/8" jack)
Sampling frequency ..................................................................... 48 kHz
Volume............................................................................... -95.62 – 0 dB
Maximum input level ............................... +0 dBu, 0.77 Vrms, 2.19 Vpp
UMX-HDMI-140 series– User's Manual
Analog Audio Input (Phoenix)
Connector type .............................................. 5-pole Phoenix connector
Signal transmission ........................... Balanced and unbalanced audio
Sampling frequency ..................................................................... 48 kHz
Volume............................................................................... -95.62 – 0 dB
Maximum input level ............................... +4 dBu, 1.23 Vrms, 3.47 Vpp
Control Ports
RS-232
Connector type .............................................. 3-pole Phoenix connector
Available Baud rates ..........................between 4800 and 115200 baud
Available Data bits ......................................................................... 8 or 9
Available Parity.......................................................... None / Odd / Even
Available Stop bits ...................................................................1 / 1.5 / 2
Infrared
Number of IR ports ....................................................... 2 (1x RX, 1x TX)
Connector type 1 x 3.5mm TRS and 1 x 3.5mm TS (approx. 1/8" jack)
Ethernet
Connector type .................................................................. Locking RJ45
Ethernet data rate .............. 10/100Base-T, full duplex with autodetect
Power over Ethernet (PoE) ..............................................Not supported
GPIO
Connector type .............................................. 8-pole Phoenix connector
Number of configurable pins ................................................................7
Port direction................................................................... Input or output
Input voltage: Low level / Max. current .....................................0 - 0,8 V
Input voltage: High level / Max. current ....................................... 2 - 5 V
Output voltage: Low level ...........................................................0 - 0,5 V
Output voltage: High level ......................................................... 4.5 - 5 V
Max. current: Low level ..................................................................30mA
Max. current: High level .................................................................18mA
Total available current ................................................................180 mA
11.2. Content of Backup File
The backup file contains numerous settings and parameters saved
from the device. When the file is uploaded to a device, the followings
will be overwritten:
Analog video input ports (VGA, DVI-A)
Horizontal position, Vertical position, Active horizontal size, Active
vertical size, Total horizontal size, Pixel phase
Test pattern mode, Test pattern resolution, Test pattern color
Digital video input ports (HDMI, DP, DVI-D)
Video port name, Audio port name, HDCP setting
Test pattern mode, Test pattern resolution, Test pattern color
HDMI output port
Port name, HDCP mode, HDMI mode, Power +5V mode, Color space
setting
Analog audio input ports
Port name, Volume, Balance
Crosspoint settings
Video crosspoint settings, audio crosspoint settings
Autoselect (enable/disable, delay settings, priority list)
Mute/lock state of video ports, Mute/lock state of audio ports
Serial port
RS-232 mode, Control protocol, Baud rate, Data bits, Stop bits, Parity
Port name and Command Injection (CI) port number
IR port
Port status (enable / disable), Code length, Repetition code,
Modulation state
Input port name, Output port name
CI status (enable / disable), CI port number
Network settings
DHCP status (enable / disable), Static IP address, Network mask,
Gateway address
Further settings
Device label
User presets (1-32), User EDID data (U1-U15), Event manager: settings
of all Events
GPIO port configuration (pin 1-7)
