3. Product Overview

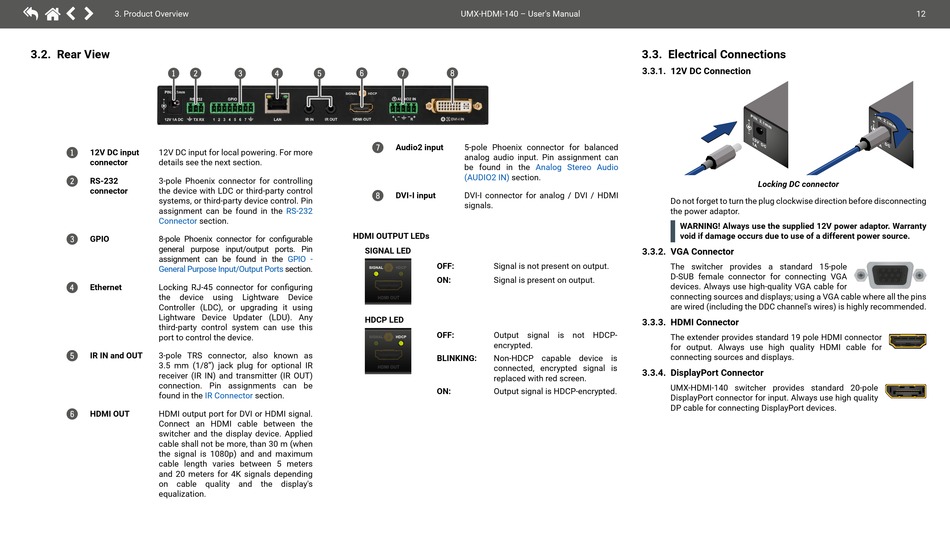

3.2. Rear View
1 2
1 12V DC input 12V DC input for local powering. For more
connector details see the next section.
RS-232 3-pole Phoenix connector for controlling
2
connector the device with LDC or third-party control
systems, or third-party device control. Pin
assignment can be found in the
Connector section.
3 GPIO 8-pole Phoenix connector for configurable
general purpose input/output ports. Pin
assignment can be found in the
General Purpose Input/Output Ports
4 Ethernet Locking RJ-45 connector for configuring
the device
Controller (LDC), or upgrading it using
Lightware Device Updater (LDU). Any
third-party control system can use this
port to control the device.
IR IN and OUT 3-pole TRS connector, also known as
5
3.5 mm (1/8") jack plug for optional IR
receiver (IR IN) and transmitter (IR OUT)
connection. Pin assignments can be
found in the
HDMI OUT HDMI output port for DVI or HDMI signal.
6
Connect an HDMI cable between the
switcher and the display device. Applied
cable shall not be more, than 30 m (when
the signal is 1080p) and and maximum
cable length varies between 5 meters
and 20 meters for 4K signals depending
on cable quality and the display's
equalization.
3 4 5 6
7
8
RS-232
HDMI OUTPUT LEDs
SIGNAL LED
GPIO -
section.
SIGNAL
using Lightware Device
HDMI OUT
HDCP LED
SIGNAL
HDMI OUT
IR Connector section.
UMX-HDMI-140 – User's Manual
7 8
Audio2 input 5-pole Phoenix connector for balanced
analog audio input. Pin assignment can
be found in the Analog Stereo Audio
(AUDIO2 IN) section.
DVI-I input DVI-I connector for analog / DVI / HDMI
signals.
OFF: Signal is not present on output.
HDCP
ON: Signal is present on output.
OFF: Output signal is not HDCP-
HDCP
encrypted.
BLINKING: Non-HDCP capable device is
connected, encrypted signal is
replaced with red screen.
ON: Output signal is HDCP-encrypted.
3.3. Electrical Connections
3.3.1. 12V DC Connection
P I
N :
2 . 1
m
m
1 2
V
1 A D
C
Locking DC connector
Do not forget to turn the plug clockwise direction before disconnecting
the power adaptor.
WARNING! Always use the supplied 12V power adaptor. Warranty
void if damage occurs due to use of a different power source.
3.3.2. VGA Connector
The switcher provides a standard 15-pole
D-SUB female connector for connecting VGA
devices. Always use high-quality VGA cable for
connecting sources and displays; using a VGA cable where all the pins
are wired (including the DDC channel's wires) is highly recommended.
3.3.3. HDMI Connector
The extender provides standard 19 pole HDMI connector
for output. Always use high quality HDMI cable for
connecting sources and displays.
3.3.4. DisplayPort Connector
UMX-HDMI-140 switcher provides standard 20-pole
DisplayPort connector for input. Always use high quality
DP cable for connecting DisplayPort devices.
12
P I
N :
2 . 1
m
m
1 2
V
1 A D C
