3. Product Overview

3
P roduct Overview
The following sections are about the physical structure of the device, input/
output ports and connectors:

Front View

Î
Rear View
Î
Electrical Connections
Î
Universal Switcher Concept
Î
Port Diagram
Î
Audio Interface
Î
Video Interface
Î
Control Features
Î
Further Built-in Features
Î
UMX-HDMI-140 – User's Manual

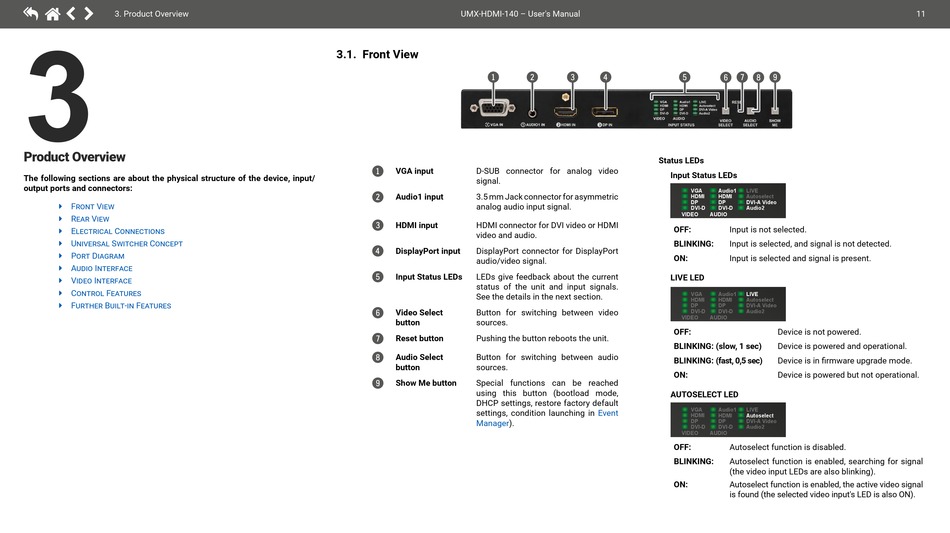

3.1. Front View
1
1 VGA input D-SUB connector for analog video
signal.
Audio1 input 3.5 mm Jack connector for asymmetric
2
analog audio input signal.
3 HDMI input HDMI connector for DVI video or HDMI
video and audio.
4 DisplayPort input DisplayPort connector for DisplayPort
audio/video signal.
Input Status LEDs LEDs give feedback about the current
5
status of the unit and input signals.
See the details in the next section.
Video Select Button for switching between video
6
button sources.
7 Reset button Pushing the button reboots the unit.
8 Audio Select Button for switching between audio
button sources.
9 Show Me button Special functions can be reached
using this button (bootload mode,
DHCP settings, restore factory default
settings, condition launching in
Manager).
2 3 4 5
Status LEDs
Input Status LEDs
VGA
HDMI
DP
DVI-D
VIDEO
OFF:
BLINKING:
ON:
LIVE LED
VGA
HDMI
DP
DVI-D
VIDEO
OFF:
BLINKING: (slow, 1 sec)
BLINKING: (fast, 0,5 sec)
ON:
AUTOSELECT LED
VGA
Event
HDMI
DP
DVI-D
VIDEO
OFF:
BLINKING:
ON:
6 7 8 9
Audio1 LIVE
HDMI Autoselect
DP DVI-A Video
DVI-D Audio2
AUDIO
Input is not selected.
Input is selected, and signal is not detected.
Input is selected and signal is present.
Audio1 LIVE
HDMI Autoselect
DP DVI-A Video
DVI-D Audio2
AUDIO
Device is not powered.
Device is powered and operational.
Device is in firmware upgrade mode.
Device is powered but not operational.
Audio1 LIVE
HDMI Autoselect
DP DVI-A Video
DVI-D Audio2
AUDIO
Autoselect function is disabled.
Autoselect function is enabled, searching for signal
(the video input LEDs are also blinking).
Autoselect function is enabled, the active video signal
is found (the selected video input's LED is also ON).
11
