9
BIIS 1200 SYSTEM OPERATION
Transmitting a call

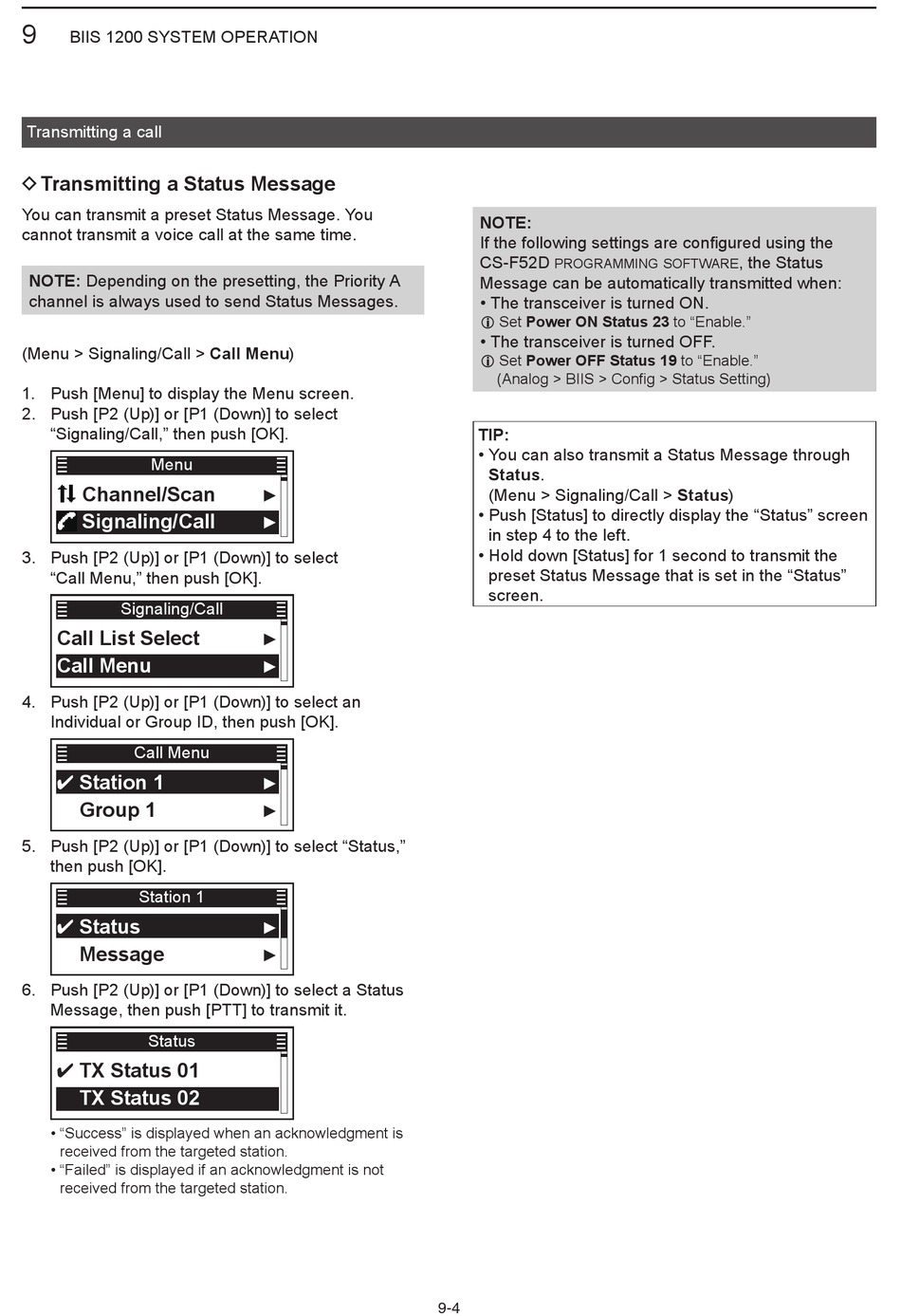

D Transmitting a Status Message

You can transmit a preset Status Message� You
cannot transmit a voice call at the same time�
NOTE: Depending on the presetting, the Priority A
channel is always used to send Status Messages�
(Menu > Signaling/Call > Call Menu)
1� Push [Menu] to display the Menu screen�
2� Push [P2 (Up)] or [P1 (Down)] to select
"Signaling/Call," then push [OK]�
Menu
Channel/Scan
Signaling/Call
3� Push [P2 (Up)] or [P1 (Down)] to select
"Call Menu," then push [OK]�
Signaling/Call
Call List Select
Call Menu
4� Push [P2 (Up)] or [P1 (Down)] to select an
Individual or Group ID, then push [OK]�
Call Menu
✔ Station 1
Group 1
✔
5� Push [P2 (Up)] or [P1 (Down)] to select "Status,"
then push [OK]�
Station 1
✔ Status
Message
✔
6� Push [P2 (Up)] or [P1 (Down)] to select a Status
Message, then push [PTT] to transmit it�
Status
✔ TX Status 01
TX Status 02
✔
• "Success" is displayed when an acknowledgment is
received from the targeted station�
• "Failed" is displayed if an acknowledgment is not
received from the targeted station�
►
►
►
►
►
►
►
►
NOTE:
If the following settings are configured using the
CS-F52D
programming software
Message can be automatically transmitted when:
• The transceiver is turned ON�
L Set Power ON Status 23 to "Enable�"
• The transceiver is turned OFF�
L Set Power OFF Status 19 to "Enable�"
(Analog > BIIS > Config > Status Setting)
TIP:
• You can also transmit a Status Message through
Status�
(Menu > Signaling/Call > Status)
• Push [Status] to directly display the "Status" screen
in step 4 to the left�
• Hold down [Status] for 1 second to transmit the
preset Status Message that is set in the "Status"
screen�
9-4
, the Status
