8

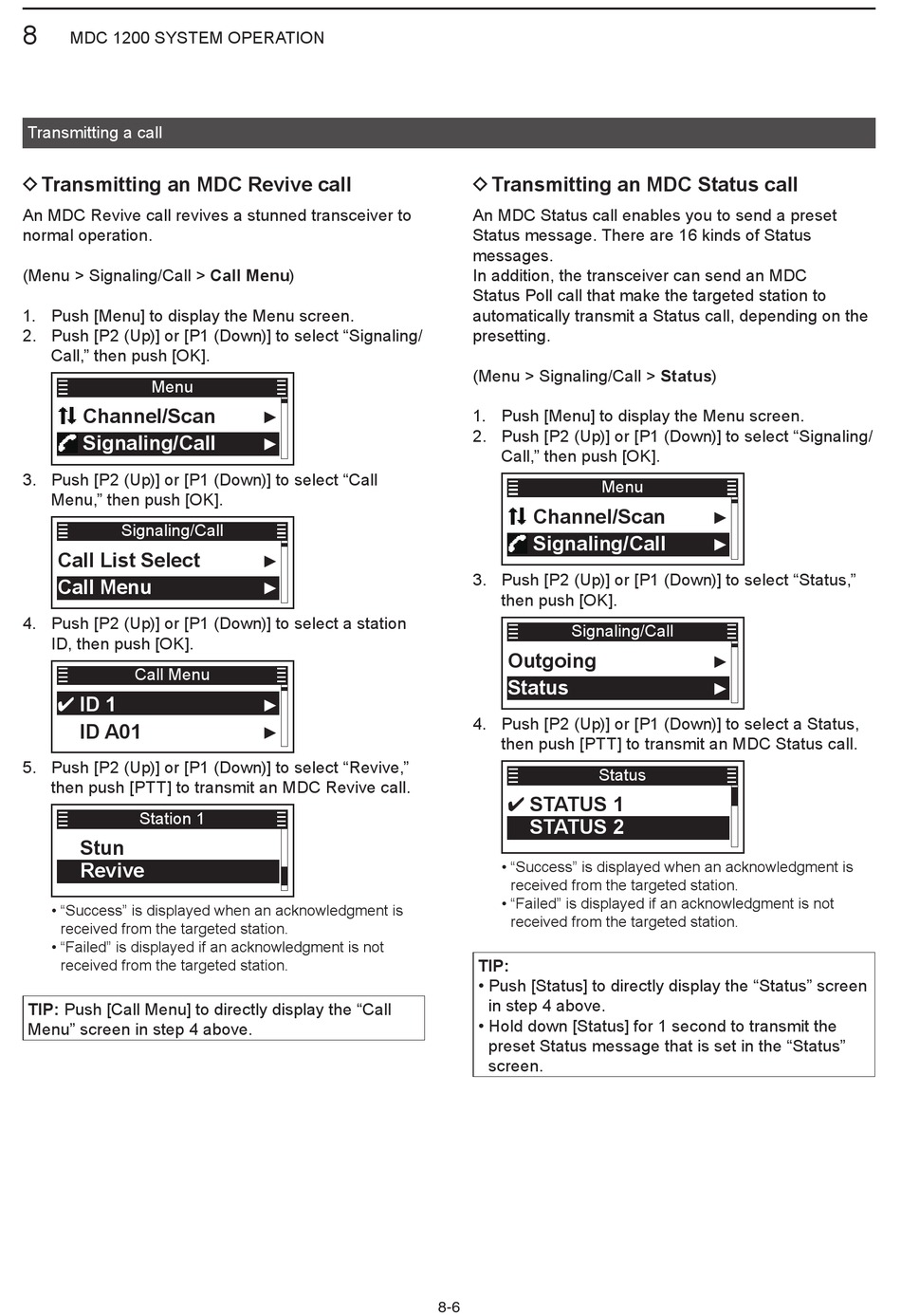

MDC 1200 SYSTEM OPERATION
Transmitting a call

D Transmitting an MDC Revive call

An MDC Revive call revives a stunned transceiver to
normal operation�
(Menu > Signaling/Call > Call Menu)
1� Push [Menu] to display the Menu screen�
2� Push [P2 (Up)] or [P1 (Down)] to select "Signaling/
Call," then push [OK]�
Menu
Channel/Scan
Signaling/Call
3� Push [P2 (Up)] or [P1 (Down)] to select "Call
Menu," then push [OK]�
Signaling/Call
Call List Select
Call Menu
4� Push [P2 (Up)] or [P1 (Down)] to select a station
ID, then push [OK]�
Call Menu
✔ ID 1
ID A01
✔
5� Push [P2 (Up)] or [P1 (Down)] to select "Revive,"
then push [PTT] to transmit an MDC Revive call�
Station 1
Stun
✔
Revive
• "Success" is displayed when an acknowledgment is
received from the targeted station�
• "Failed" is displayed if an acknowledgment is not
received from the targeted station�
TIP: Push [Call Menu] to directly display the "Call
Menu" screen in step 4 above�
►
►
►
►
►
►

D Transmitting an MDC Status call

An MDC Status call enables you to send a preset
Status message� There are 16 kinds of Status
messages�
In addition, the transceiver can send an MDC
Status Poll call that make the targeted station to
automatically transmit a Status call, depending on the
presetting�
(Menu > Signaling/Call > Status)
1� Push [Menu] to display the Menu screen�
2� Push [P2 (Up)] or [P1 (Down)] to select "Signaling/
Call," then push [OK]�
Menu
Channel/Scan
Signaling/Call
3� Push [P2 (Up)] or [P1 (Down)] to select "Status,"
then push [OK]�
Signaling/Call
Outgoing
Status
4� Push [P2 (Up)] or [P1 (Down)] to select a Status,
then push [PTT] to transmit an MDC Status call�
Status
✔ STATUS 1
STATUS 2
✔
• "Success" is displayed when an acknowledgment is
received from the targeted station�
• "Failed" is displayed if an acknowledgment is not
received from the targeted station�
TIP:
• Push [Status] to directly display the "Status" screen
in step 4 above�
• Hold down [Status] for 1 second to transmit the
preset Status message that is set in the "Status"
screen�
8-6
►
►
►
►
