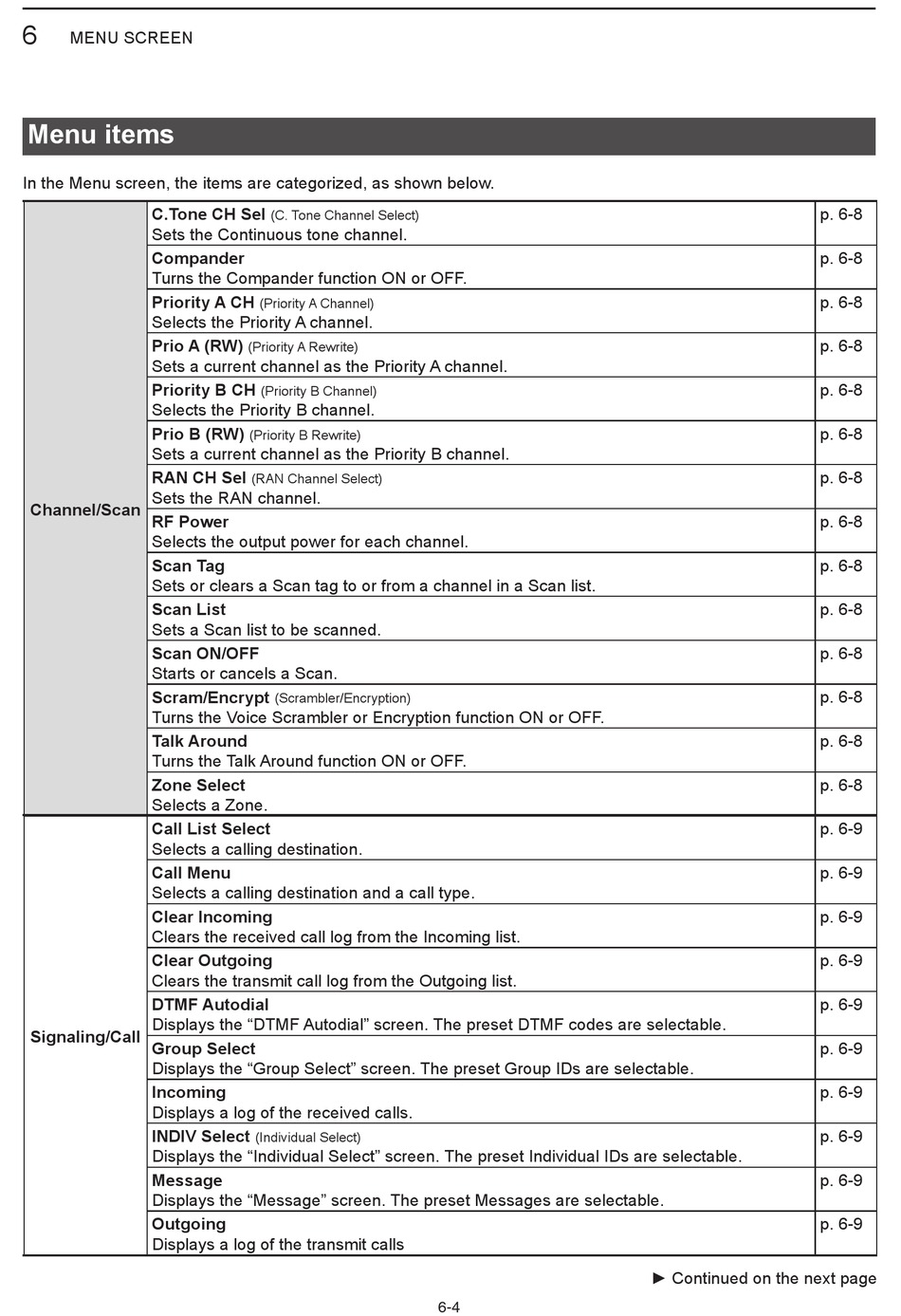

Icom IC-F62D Operating Manual page 47

6
MENU SCREEN
Menu items
In the Menu screen, the items are categorized, as shown below�
C.Tone CH Sel
Sets the Continuous tone channel�
Compander
Turns the Compander function ON or OFF�
Priority A CH
Selects the Priority A channel�
Prio A (RW)
Sets a current channel as the Priority A channel�
Priority B CH
Selects the Priority B channel�
Prio B (RW)
Sets a current channel as the Priority B channel�
RAN CH Sel
Sets the RAN channel�
Channel/Scan
RF Power
Selects the output power for each channel�
Scan Tag
Sets or clears a Scan tag to or from a channel in a Scan list�
Scan List
Sets a Scan list to be scanned�
Scan ON/OFF
Starts or cancels a Scan�
Scram/Encrypt
Turns the Voice Scrambler or Encryption function ON or OFF�
Talk Around
Turns the Talk Around function ON or OFF�
Zone Select
Selects a Zone�
Call List Select
Selects a calling destination�
Call Menu
Selects a calling destination and a call type�
Clear Incoming
Clears the received call log from the Incoming list�
Clear Outgoing
Clears the transmit call log from the Outgoing list�
DTMF Autodial
Displays the "DTMF Autodial" screen� The preset DTMF codes are selectable�
Signaling/Call
Group Select
Displays the "Group Select" screen� The preset Group IDs are selectable�
Incoming
Displays a log of the received calls�
INDIV Select
Displays the "Individual Select" screen� The preset Individual IDs are selectable�
Message
Displays the "Message" screen� The preset Messages are selectable�
Outgoing
Displays a log of the transmit calls
(C� Tone Channel Select)
(Priority A Channel)
(Priority A Rewrite)
(Priority B Channel)
(Priority B Rewrite)
(RAN Channel Select)
(Scrambler/Encryption)
(Individual Select)
6-4
p� 6-8
p� 6-8
p� 6-8
p� 6-8
p� 6-8
p� 6-8
p� 6-8
p� 6-8
p� 6-8
p� 6-8
p� 6-8
p� 6-8
p� 6-8
p� 6-8
p� 6-9
p� 6-9
p� 6-9
p� 6-9
p� 6-9
p� 6-9
p� 6-9
p� 6-9
p� 6-9
p� 6-9
► Continued on the next page
