13

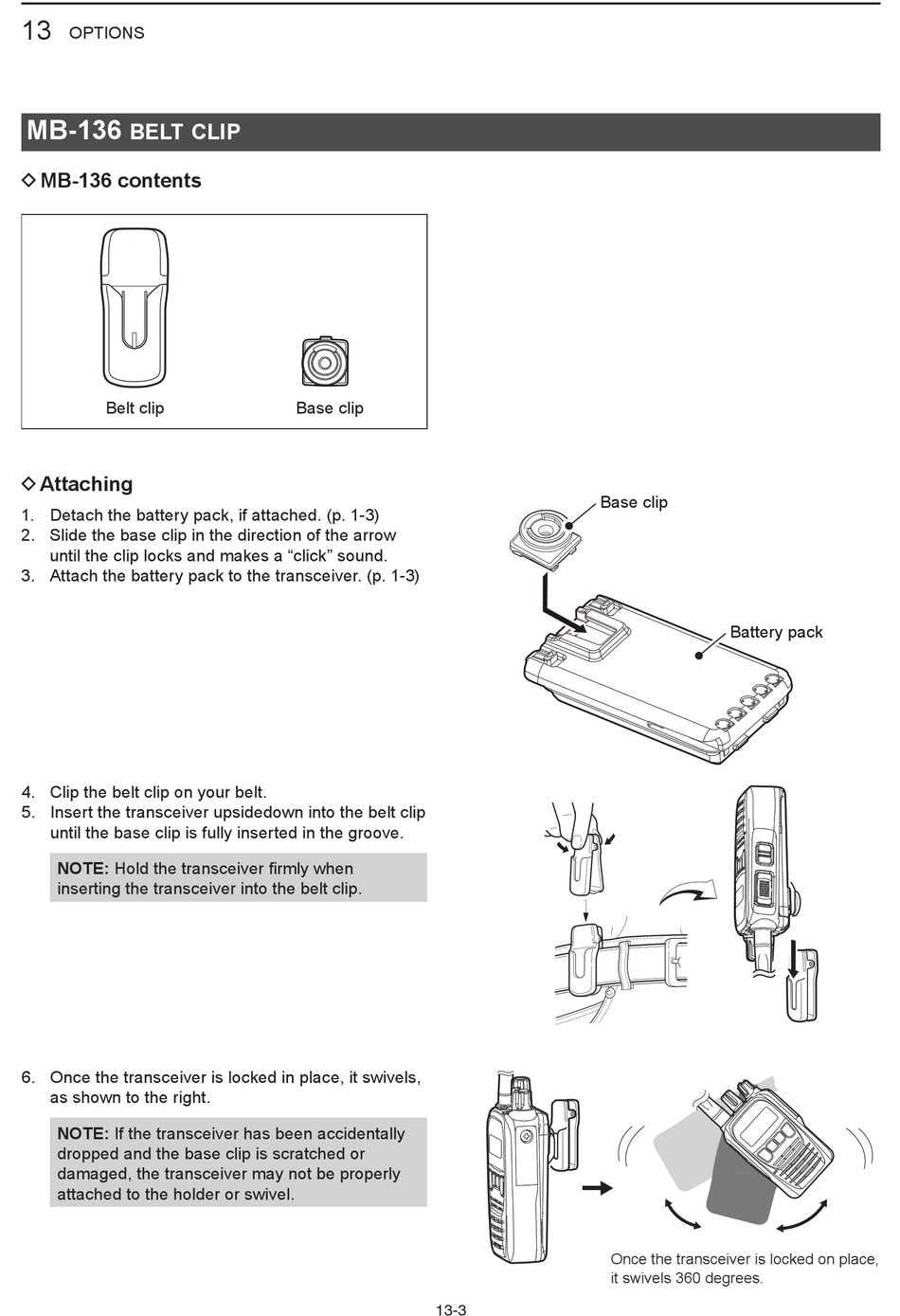

OPTIONS
MB-136

belt clip

D MB-136 contents

Belt clip

D Attaching

1� Detach the battery pack, if attached� (p� 1-3)
2� Slide the base clip in the direction of the arrow
until the clip locks and makes a "click" sound�
3� Attach the battery pack to the transceiver� (p� 1-3)
4� Clip the belt clip on your belt�
5� Insert the transceiver upsidedown into the belt clip
until the base clip is fully inserted in the groove�
NOTE: Hold the transceiver firmly when
inserting the transceiver into the belt clip�
6� Once the transceiver is locked in place, it swivels,
as shown to the right�
NOTE: If the transceiver has been accidentally
dropped and the base clip is scratched or
damaged, the transceiver may not be properly
attached to the holder or swivel�
Base clip
13-3
Base clip
Battery pack
Once the transceiver is locked on place,
it swivels 360 degrees�
