Icom IC-F62D Operating Manual page 118

12
OTHERS

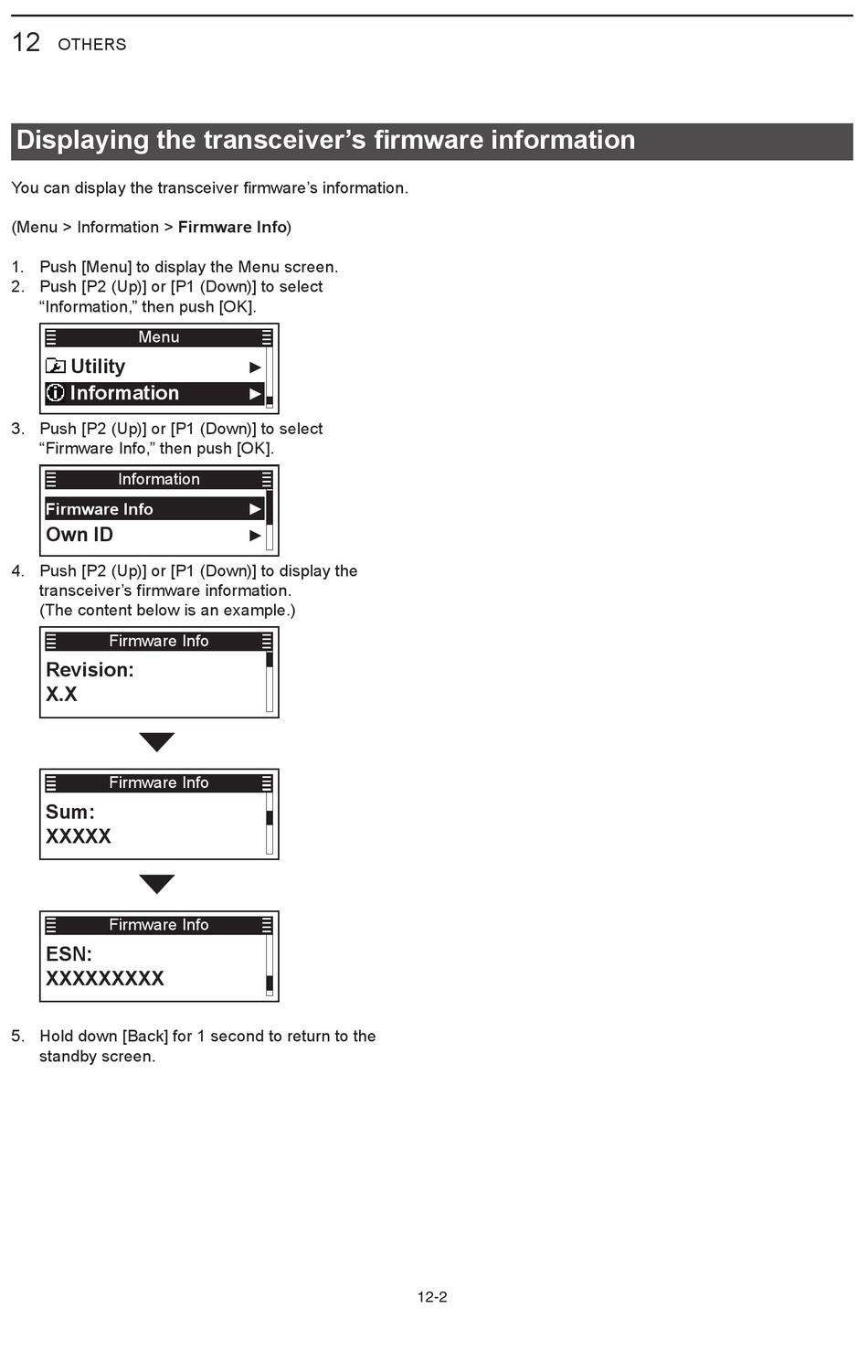

Displaying the transceiver's firmware information
You can display the transceiver firmware's information.
( Menu > Information > Firmware Info)
1� Push [Menu] to display the Menu screen.
2� Push [P2 (Up)] or [P1 (Down)] to select
"Information," then push [OK].
Menu
Utility
Information
3� Push [P2 (Up)] or [P1 (Down)] to select
"Firmware Info," then push [OK].
Information
Firmware Info
Own ID
4� Push [P2 (Up)] or [P1 (Down)] to display the
transceiver's firmware information.
(The content below is an example.)
Firmware Info
Revision:
X.X
Firmware Info
Sum:
XXXXX
Firmware Info
ESN:
XXXXXXXXX
5� Hold down [Back] for 1 second to return to the
standby screen.
►
►
►
►
12-2
