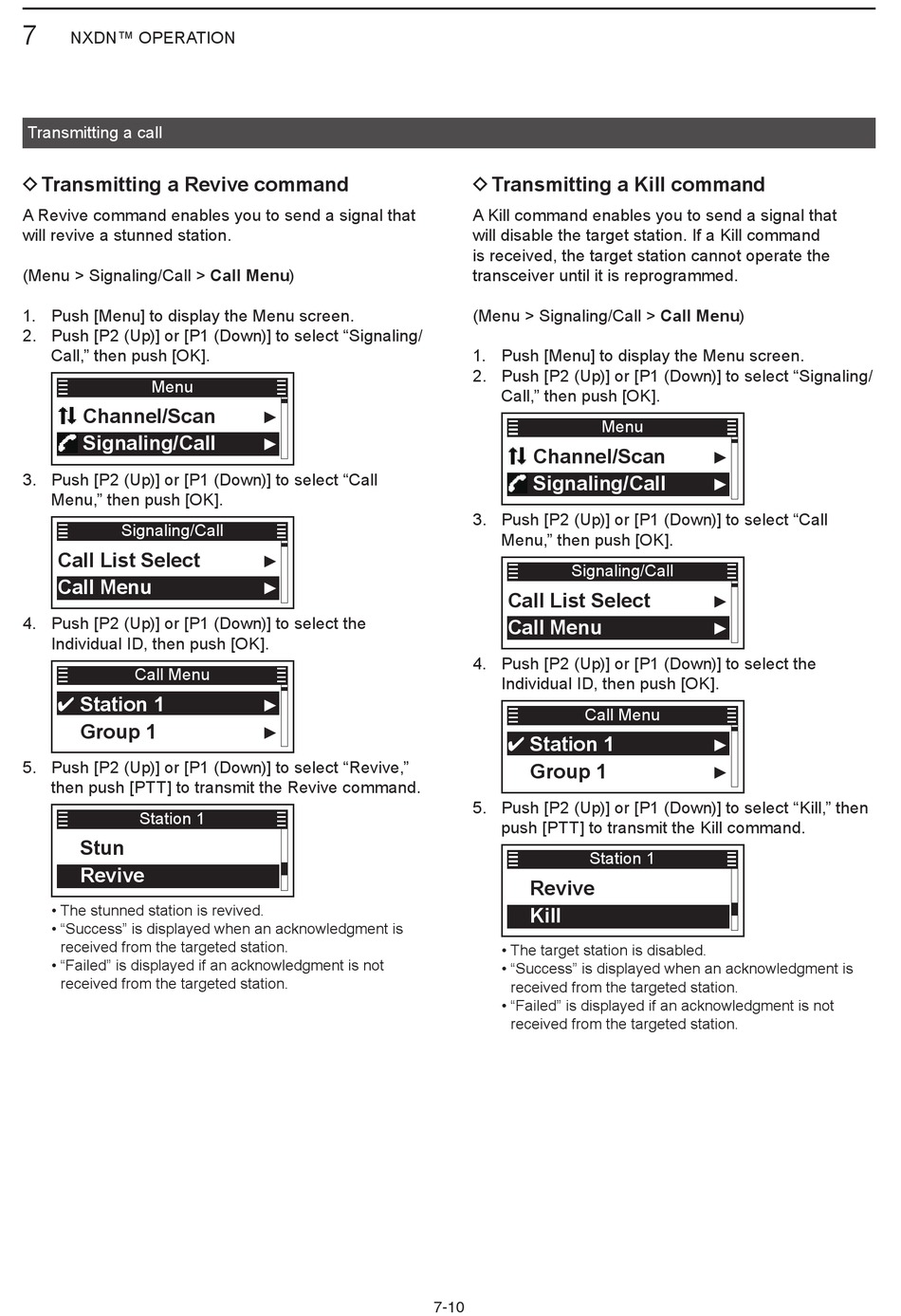

7
NXDN™ OPERATION
Transmitting a call
D Transmitting a Revive command
A Revive command enables you to send a signal that
will revive a stunned station�
(Menu > Signaling/Call > Call Menu)
1� Push [Menu] to display the Menu screen�
2� Push [P2 (Up)] or [P1 (Down)] to select "Signaling/
Call," then push [OK]�
Menu
Channel/Scan
Signaling/Call
3� Push [P2 (Up)] or [P1 (Down)] to select "Call
Menu," then push [OK]�
Signaling/Call
Call List Select
Call Menu
4� Push [P2 (Up)] or [P1 (Down)] to select the
Individual ID, then push [OK]�
Call Menu
✔ Station 1
Group 1
✔
5� Push [P2 (Up)] or [P1 (Down)] to select "Revive,"
then push [PTT] to transmit the Revive command�
Station 1
Stun
✔
Revive
✔
• The stunned station is revived�
• "Success" is displayed when an acknowledgment is
received from the targeted station�
• "Failed" is displayed if an acknowledgment is not
received from the targeted station�
►
►
►
►
►
►
D Transmitting a Kill command
A Kill command enables you to send a signal that
will disable the target station� If a Kill command
is received, the target station cannot operate the
transceiver until it is reprogrammed�
(Menu > Signaling/Call > Call Menu)
1� Push [Menu] to display the Menu screen�
2� Push [P2 (Up)] or [P1 (Down)] to select "Signaling/
Call," then push [OK]�
Menu
Channel/Scan
Signaling/Call
3� Push [P2 (Up)] or [P1 (Down)] to select "Call
Menu," then push [OK]�
Signaling/Call
Call List Select
Call Menu
4� Push [P2 (Up)] or [P1 (Down)] to select the
Individual ID, then push [OK]�
Call Menu
✔ Station 1
Group 1
✔
5� Push [P2 (Up)] or [P1 (Down)] to select "Kill," then
push [PTT] to transmit the Kill command�
Station 1
Revive
✔
Kill
✔
• The target station is disabled�
• "Success" is displayed when an acknowledgment is
received from the targeted station�
• "Failed" is displayed if an acknowledgment is not
received from the targeted station�
7-10
►
►
►
►
►
►
