9
BIIS 1200 SYSTEM OPERATION

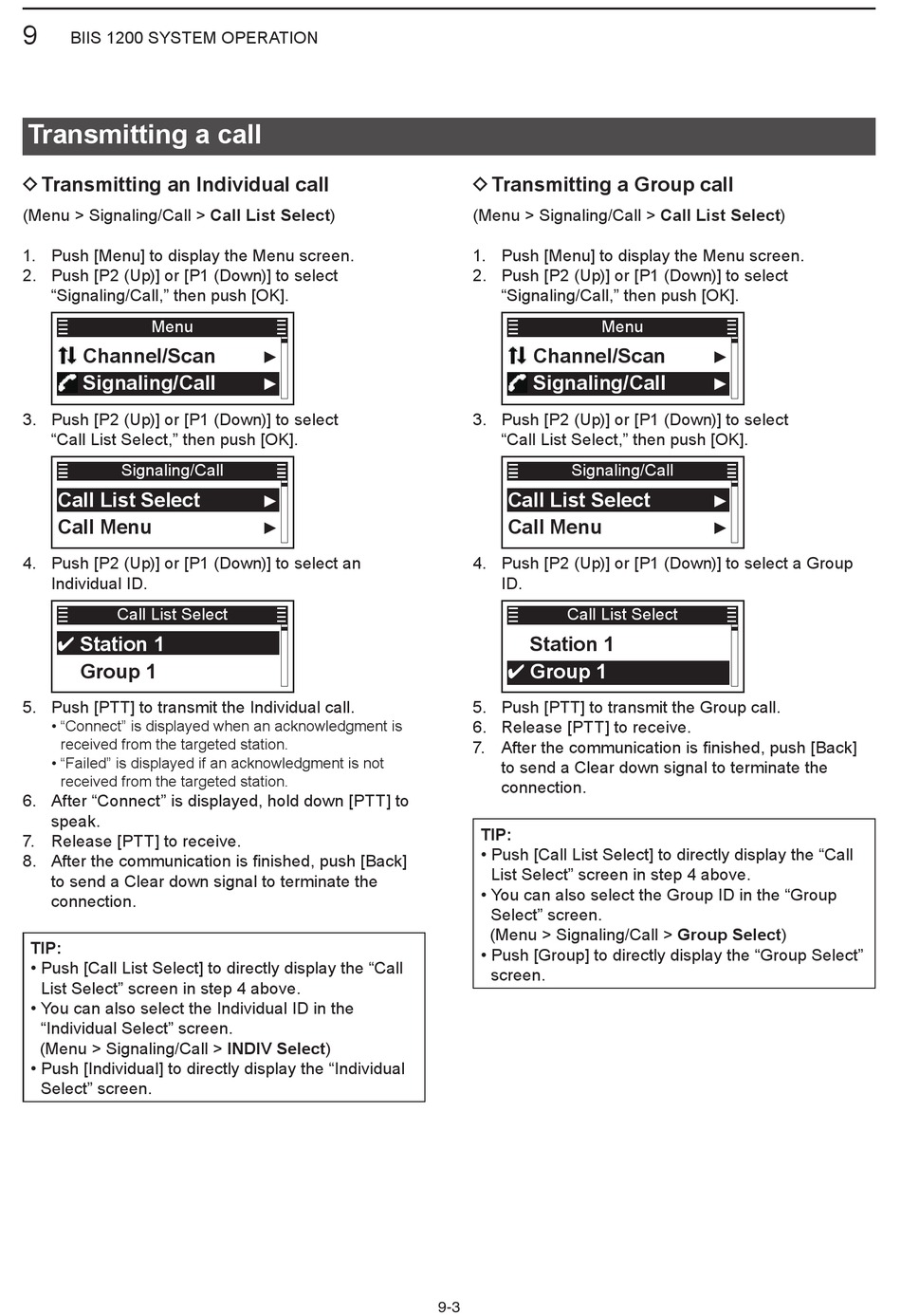

Transmitting a call

D Transmitting an Individual call

(Menu > Signaling/Call > Call List Select)
1� Push [Menu] to display the Menu screen�
2� Push [P2 (Up)] or [P1 (Down)] to select
"Signaling/Call," then push [OK]�
Menu
Channel/Scan
Signaling/Call
3� Push [P2 (Up)] or [P1 (Down)] to select
"Call List Select," then push [OK]�
Signaling/Call
Call List Select
Call Menu
4� Push [P2 (Up)] or [P1 (Down)] to select an
Individual ID�
Call List Select
✔ Station 1
Group 1
✔
5� Push [PTT] to transmit the Individual call�
• "Connect" is displayed when an acknowledgment is
received from the targeted station�
• "Failed" is displayed if an acknowledgment is not
received from the targeted station�
6� After "Connect" is displayed, hold down [PTT] to
speak�
7� Release [PTT] to receive�
8� After the communication is finished, push [Back]
to send a Clear down signal to terminate the
connection�
TIP:
• Push [Call List Select] to directly display the "Call
List Select" screen in step 4 above�
• You can also select the Individual ID in the
"Individual Select" screen�
(Menu > Signaling/Call > INDIV Select)
• Push [Individual] to directly display the "Individual
Select" screen�
►
►
►
►

D Transmitting a Group call

(Menu > Signaling/Call > Call List Select)
1� Push [Menu] to display the Menu screen�
2� Push [P2 (Up)] or [P1 (Down)] to select
"Signaling/Call," then push [OK]�
Menu
Channel/Scan
Signaling/Call
3� Push [P2 (Up)] or [P1 (Down)] to select
"Call List Select," then push [OK]�
Signaling/Call
Call List Select
Call Menu
4� Push [P2 (Up)] or [P1 (Down)] to select a Group
ID�
Call List Select
Station 1
✔
✔ Group 1
5� Push [PTT] to transmit the Group call�
6� Release [PTT] to receive�
7� After the communication is finished, push [Back]
to send a Clear down signal to terminate the
connection�
TIP:
• Push [Call List Select] to directly display the "Call
List Select" screen in step 4 above�
• You can also select the Group ID in the "Group
Select" screen�
(Menu > Signaling/Call > Group Select)
• Push [Group] to directly display the "Group Select"
screen�
9-3
►
►
►
►
