7
NXDN™ OPERATION

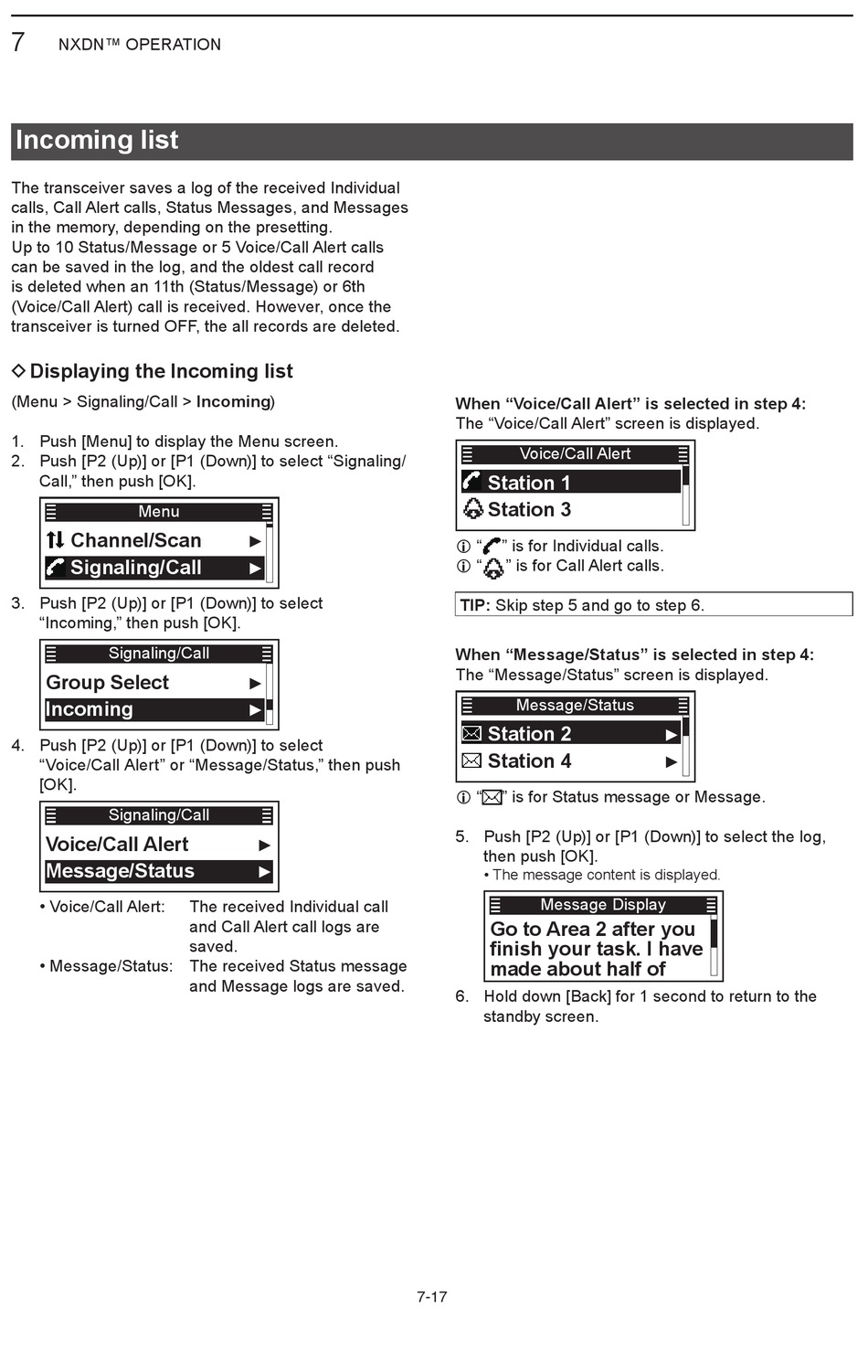

Incoming list

The transceiver saves a log of the received Individual
calls, Call Alert calls, Status Messages, and Messages
in the memory, depending on the presetting�
Up to 10 Status/Message or 5 Voice/Call Alert calls
can be saved in the log, and the oldest call record
is deleted when an 11th (Status/Message) or 6th
(Voice/Call Alert) call is received� However, once the
transceiver is turned OFF, the all records are deleted�

D Displaying the Incoming list

(Menu > Signaling/Call > Incoming)
1� Push [Menu] to display the Menu screen�
2� Push [P2 (Up)] or [P1 (Down)] to select "Signaling/
Call," then push [OK]�
Menu
Channel/Scan
Signaling/Call
3� Push [P2 (Up)] or [P1 (Down)] to select
"Incoming," then push [OK]�
Signaling/Call
Group Select
Incoming
4� Push [P2 (Up)] or [P1 (Down)] to select
"Voice/Call Alert" or "Message/Status," then push
[OK]�
Signaling/Call
Voice/Call Alert
Message/Status
• Voice/Call Alert:
• Message/Status: The received Status message
►
►
►
►
►
►
The received Individual call
and Call Alert call logs are
saved�
and Message logs are saved�
When "Voice/Call Alert" is selected in step 4:
The "Voice/Call Alert" screen is displayed�
Voice/Call Alert
Station 1
Station 3
L " " is for Individual calls�
L " " is for Call Alert calls�
TIP: Skip step 5 and go to step 6�
When "Message/Status" is selected in step 4:
The "Message/Status" screen is displayed�
Message/Status
Station 2
Station 4
L " " is for Status message or Message�
5� Push [P2 (Up)] or [P1 (Down)] to select the log,
then push [OK]�
• The message content is displayed�
Message Display
Go to Area 2 after you
finish your task. I have
made about half of
6� Hold down [Back] for 1 second to return to the
standby screen�
7-17
►
►
