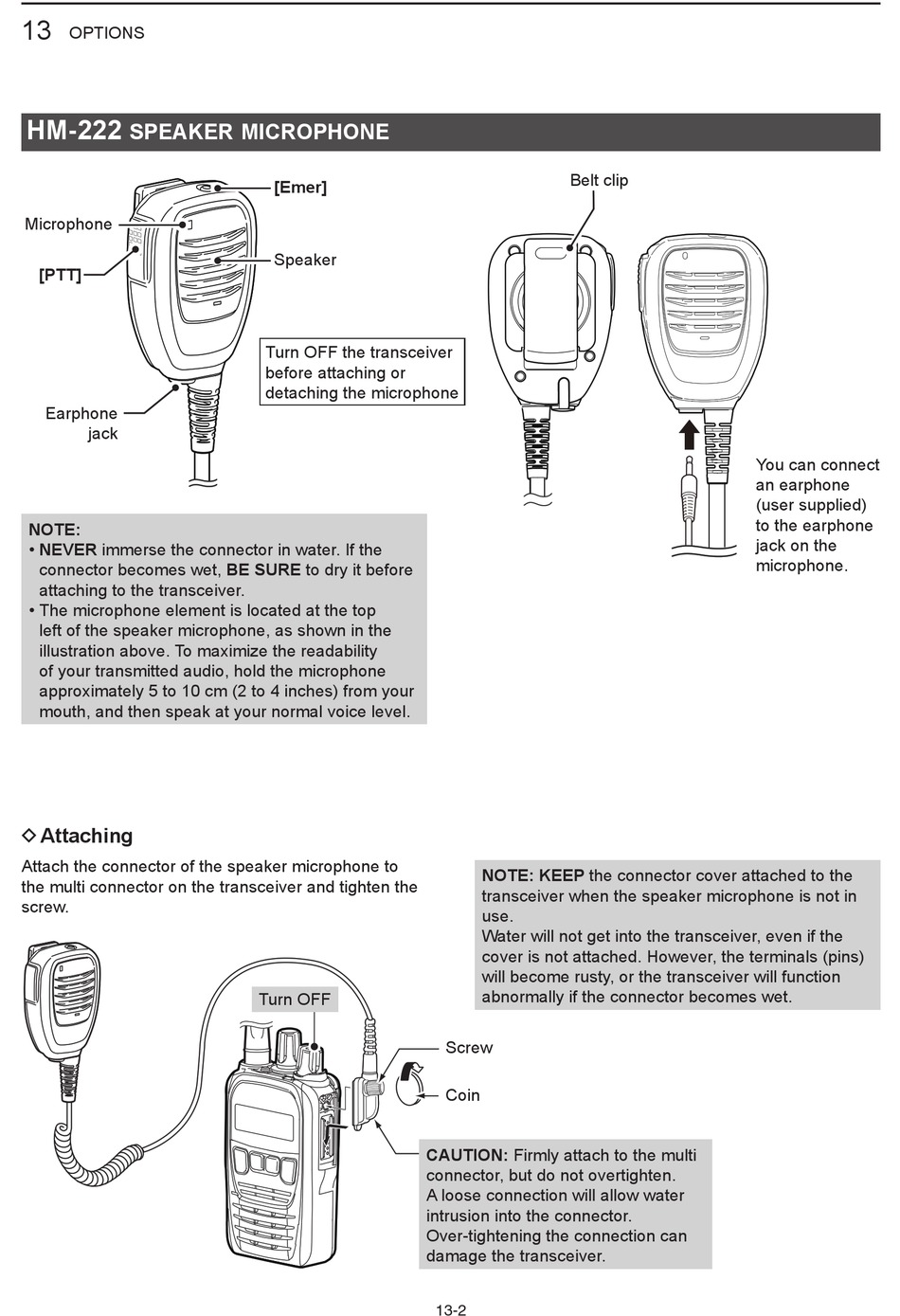

Section 13 Options; D Attaching; Speaker Microphone - Icom IC-F62D Operating Manual

13
OPTIONS
HM-222

speaker microphone

Microphone
[PTT]
Earphone
jack
NOTE:
• NEVER immerse the connector in water� If the
connector becomes wet, BE SURE to dry it before
attaching to the transceiver�
• The microphone element is located at the top
left of the speaker microphone, as shown in the
illustration above� To maximize the readability
of your transmitted audio, hold the microphone
approximately 5 to 10 cm (2 to 4 inches) from your
mouth, and then speak at your normal voice level�

D Attaching

Attach the connector of the speaker microphone to
the multi connector on the transceiver and tighten the
screw�
[Emer]
Speaker
Turn OFF the transceiver
before attaching or
detaching the microphone
Turn OFF
CAUTION: Firmly attach to the multi
connector, but do not overtighten�
A loose connection will allow water
intrusion into the connector�
Over-tightening the connection can
damage the transceiver�
Belt clip
NOTE: KEEP the connector cover attached to the
transceiver when the speaker microphone is not in
use�
Water will not get into the transceiver, even if the
cover is not attached� However, the terminals (pins)
will become rusty, or the transceiver will function
abnormally if the connector becomes wet�
Screw
Coin
13-2
You can connect
an earphone
(user supplied)
to the earphone
jack on the
microphone�
