2

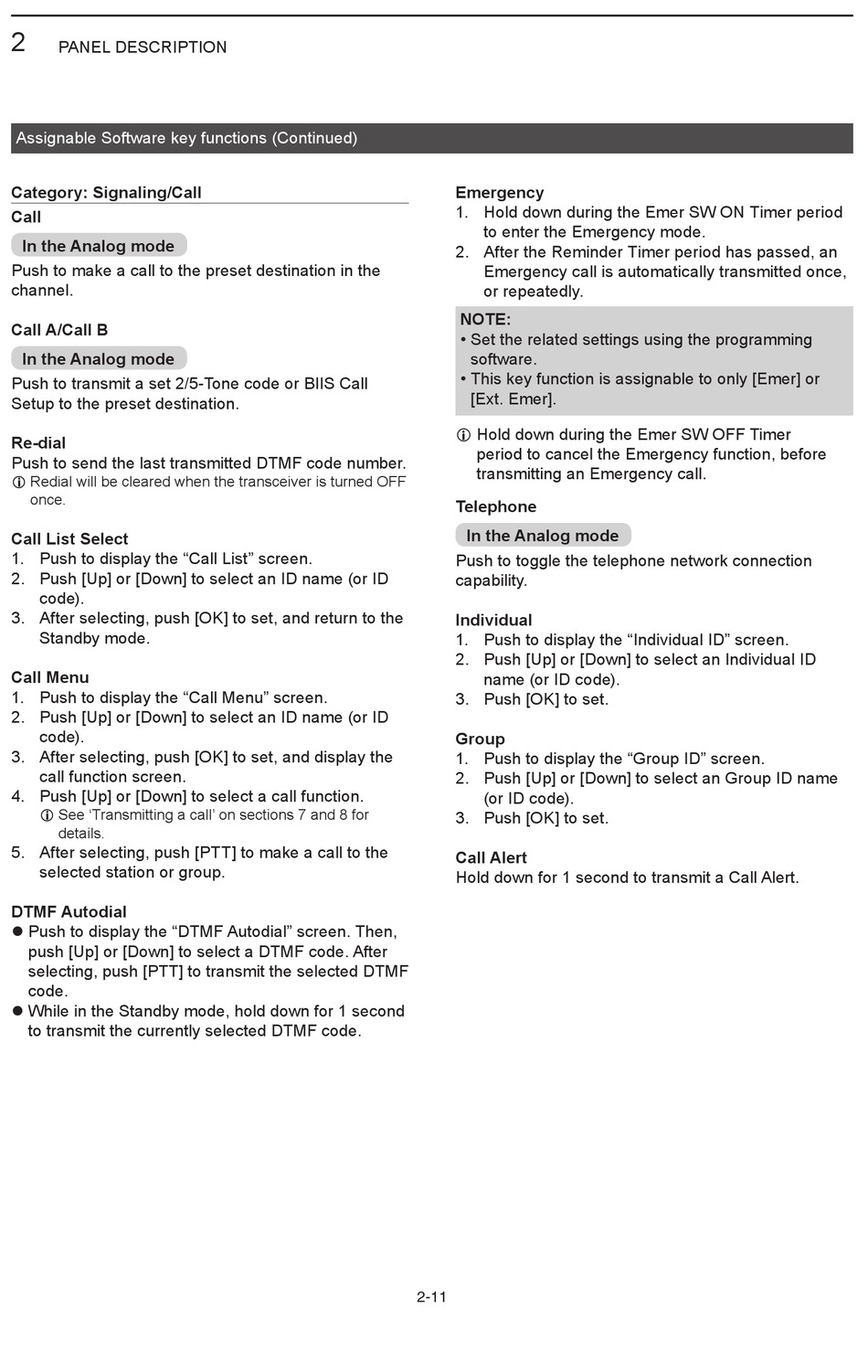

PANEL DESCRIPTION
Assignable Software key functions (Continued)
Category: Signaling/Call
Call
In the Analog mode
Push to make a call to the preset destination in the
channel�
Call A/Call B
In the Analog mode
Push to transmit a set 2/5-Tone code or BIIS Call
Setup to the preset destination�
Re-dial
Push to send the last transmitted DTMF code number�
L Redial will be cleared when the transceiver is turned OFF
once�
Call List Select
1� Push to display the "Call List" screen�
2� Push [Up] or [Down] to select an ID name (or ID
code)�
3� After selecting, push [OK] to set, and return to the
Standby mode�
Call Menu
1� Push to display the "Call Menu" screen�
2� Push [Up] or [Down] to select an ID name (or ID
code)�
3� After selecting, push [OK] to set, and display the
call function screen�
4� Push [Up] or [Down] to select a call function�
L See 'Transmitting a call' on sections 7 and 8 for
details�
5� After selecting, push [PTT] to make a call to the
selected station or group�
DTMF Autodial
z Push to display the "DTMF Autodial" screen� Then,
push [Up] or [Down] to select a DTMF code� After
selecting, push [PTT] to transmit the selected DTMF
code�
z While in the Standby mode, hold down for 1 second
to transmit the currently selected DTMF code�
Emergency
1� Hold down during the Emer SW ON Timer period
to enter the Emergency mode�
2� After the Reminder Timer period has passed, an
Emergency call is automatically transmitted once,
or repeatedly�
NOTE:
• Set the related settings using the programming
software�
• This key function is assignable to only [Emer] or
[Ext� Emer]�
L Hold down during the Emer SW OFF Timer
period to cancel the Emergency function, before
transmitting an Emergency call�
Telephone
In the Analog mode
Push to toggle the telephone network connection
capability�
Individual
1� Push to display the "Individual ID" screen�
2� Push [Up] or [Down] to select an Individual ID
name (or ID code)�
3� Push [OK] to set�
Group
1� Push to display the "Group ID" screen�
2� Push [Up] or [Down] to select an Group ID name
(or ID code)�
3� Push [OK] to set�
Call Alert
Hold down for 1 second to transmit a Call Alert�
2-11
