Icom IC-F62D Operating Manual page 48

6

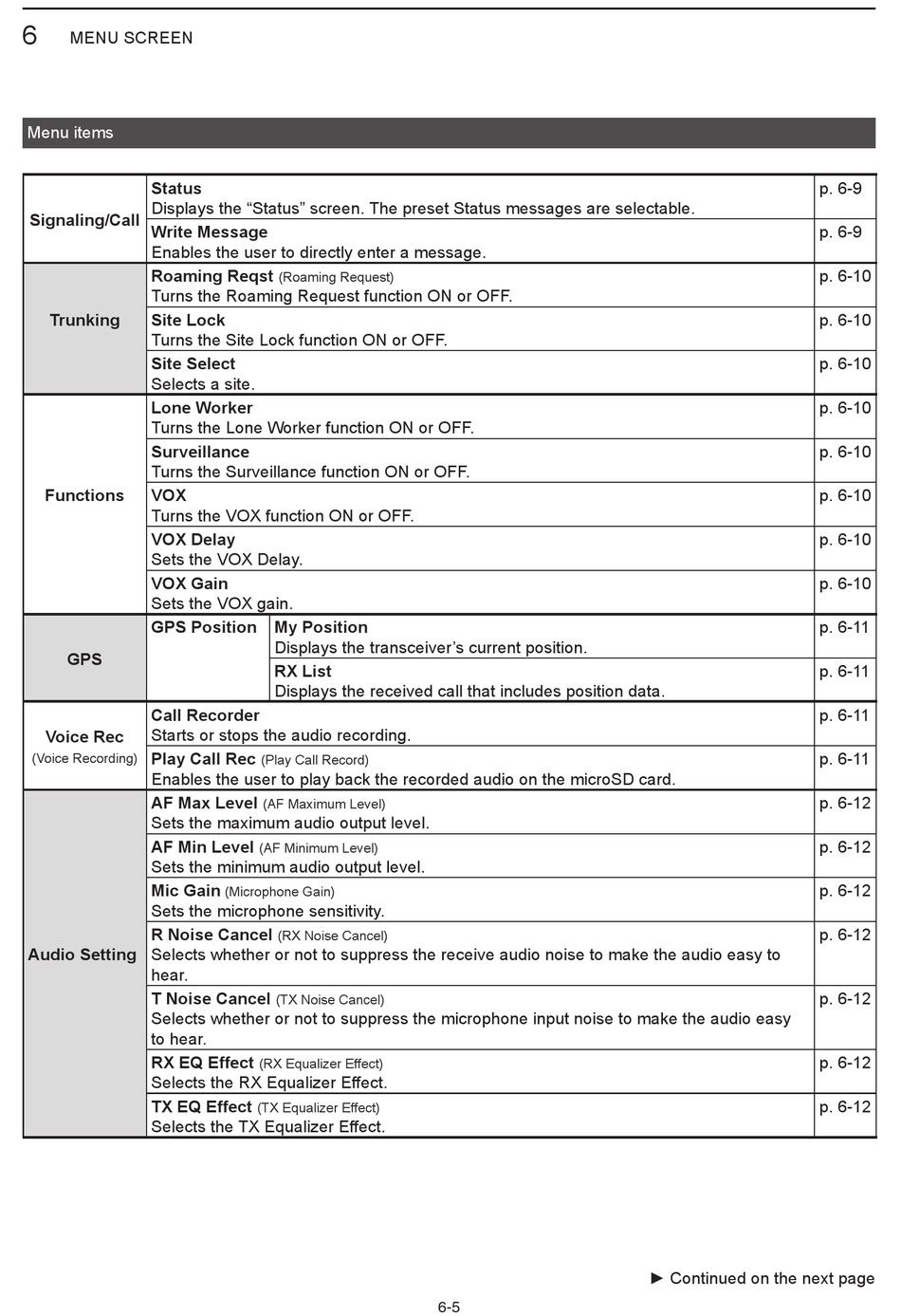

MENU SCREEN
Menu items
Status
Displays the "Status" screen� The preset Status messages are selectable�
Signaling/Call
Write Message
Enables the user to directly enter a message�
Roaming Reqst
Turns the Roaming Request function ON or OFF�
Trunking Site Lock
Turns the Site Lock function ON or OFF�
Site Select
Selects a site�
Lone Worker
Turns the Lone Worker function ON or OFF�
Surveillance
Turns the Surveillance function ON or OFF�
Functions VOX
Turns the VOX function ON or OFF�
VOX Delay
Sets the VOX Delay�
VOX Gain
Sets the VOX gain�
GPS Position My Position
GPS
Call Recorder
Starts or stops the audio recording�
Voice Rec
Play Call Rec
(Voice Recording)
Enables the user to play back the recorded audio on the microSD card�
AF Max Level
Sets the maximum audio output level�
AF Min Level
Sets the minimum audio output level�
Mic Gain
Sets the microphone sensitivity�
R Noise Cancel
Audio Setting Selects whether or not to suppress the receive audio noise to make the audio easy to
hear�
T Noise Cancel
Selects whether or not to suppress the microphone input noise to make the audio easy
to hear�
RX EQ Effect
Selects the RX Equalizer Effect�
TX EQ Effect
Selects the TX Equalizer Effect�
(Roaming Request)
Displays the transceiver's current position�
RX List
Displays the received call that includes position data�
(Play Call Record)
(AF Maximum Level)
(AF Minimum Level)
(Microphone Gain)
(RX Noise Cancel)
(TX Noise Cancel)
(RX Equalizer Effect)
(TX Equalizer Effect)
6-5
► Continued on the next page
p� 6-9
p� 6-9
p� 6-10
p� 6-10
p� 6-10
p� 6-10
p� 6-10
p� 6-10
p� 6-10
p� 6-10
p� 6-11
p� 6-11
p� 6-11
p� 6-11
p� 6-12
p� 6-12
p� 6-12
p� 6-12
p� 6-12
p� 6-12
p� 6-12
