7
NXDN™ OPERATION
Transmitting a call (Continued)

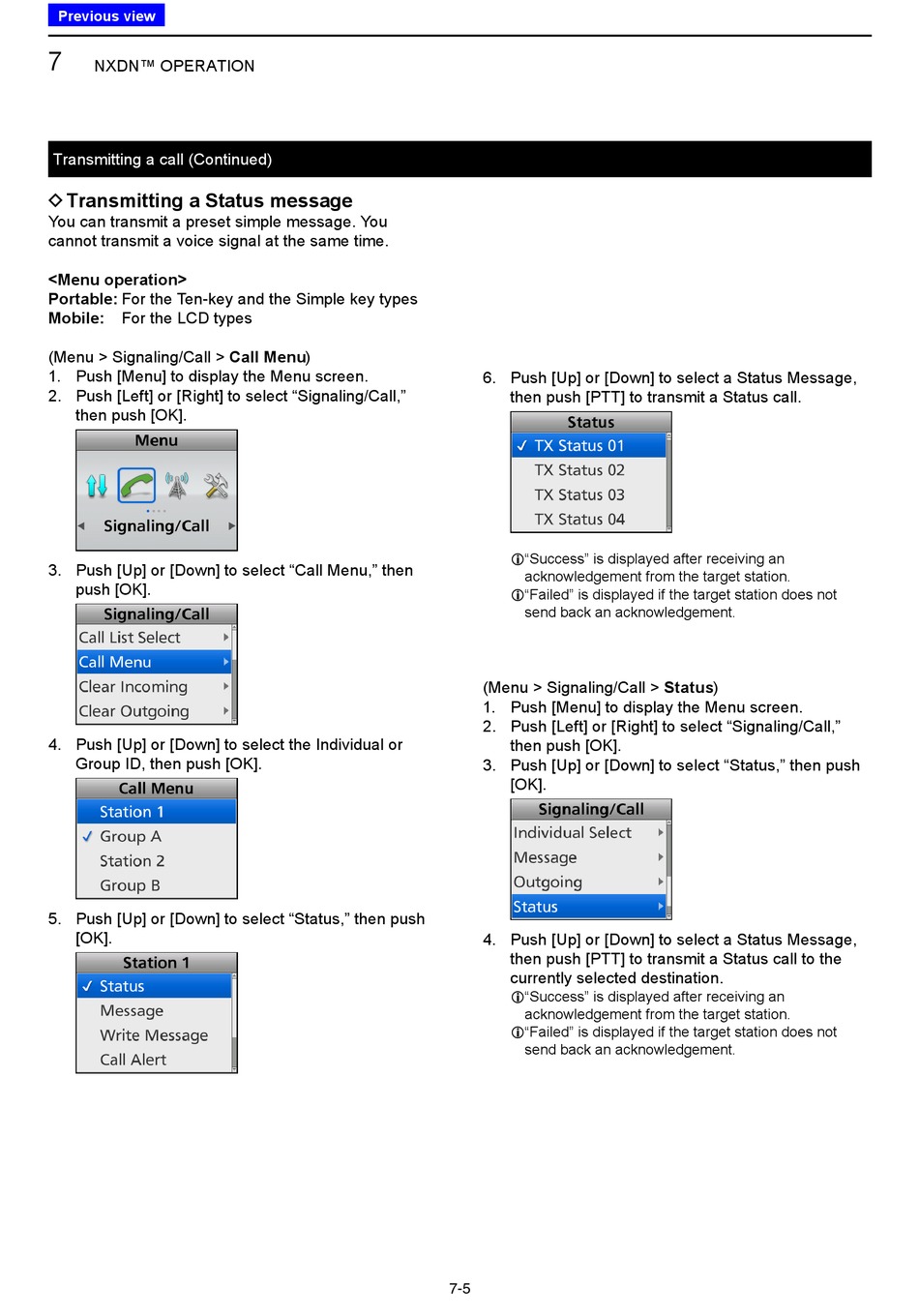

D Transmitting a Status message

You can transmit a preset simple message. You
cannot transmit a voice signal at the same time.
<Menu operation>
Portable: For the Ten-key and the Simple key types
Mobile: For the LCD types
(Menu > Signaling/Call > Call Menu)
1. Push [Menu] to display the Menu screen.
2. Push [Left] or [Right] to select "Signaling/Call,"
then push [OK].
3. Push [Up] or [Down] to select "Call Menu," then
push [OK].
4. Push [Up] or [Down] to select the Individual or
Group ID, then push [OK].
5. Push [Up] or [Down] to select "Status," then push
[OK].
6. Push [Up] or [Down] to select a Status Message,
then push [PTT] to transmit a Status call.
L "Success" is displayed after receiving an
acknowledgement from the target station.
L "Failed" is displayed if the target station does not
send back an acknowledgement.
(Menu > Signaling/Call > Status)
1. Push [Menu] to display the Menu screen.
2. Push [Left] or [Right] to select "Signaling/Call,"
then push [OK].
3. Push [Up] or [Down] to select "Status," then push
[OK].
4. Push [Up] or [Down] to select a Status Message,
then push [PTT] to transmit a Status call to the
currently selected destination.
L "Success" is displayed after receiving an
acknowledgement from the target station.
L "Failed" is displayed if the target station does not
send back an acknowledgement.
7-5
