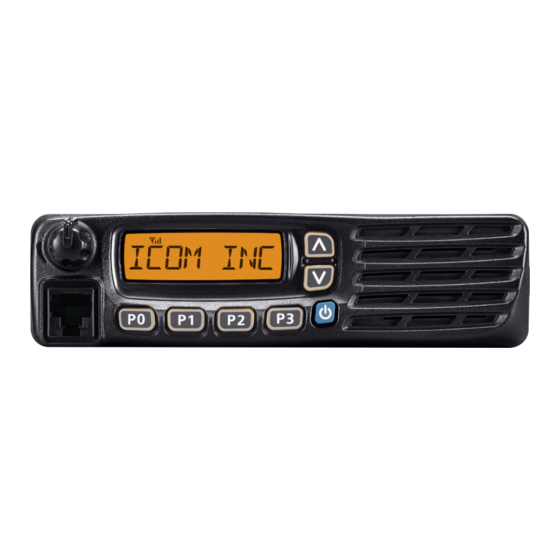

Summary of Contents for Icom IC-F5220D

  • Page 1 INSTRUCTION MANUAL VHF DIGITAL TRANSCEIVER iF5220D UHF DIGITAL TRANSCEIVER iF6220D...

  • Page 2: Important

    IC-F6220D UHF DIGITAL TRANSCEIVER. and, if not installed and used in accordance with the instruc- tion manual, may cause harmful interference to radio com- See the operating guide for details of IDAS (ICOM Digital munications. Advanced System) system operations. Ask your dealer for Operation of this equipment in a residential area is likely to details.

  • Page 3: Precautions

    CAUTION: NEVER expose the transceiver to rain, Icom, Icom Inc. and the Icom logo are registered trademarks of Icom snow or any liquids. Incorporated (Japan) in Japan, the United States, the United King- dom, Germany, France, Spain, Russia, Australia, New Zealand, and/ or other countries.

  • Page 4: Table Of Contents

    3 CONNECTION AND MAINTENANCE ......9–12 ■ Rear panel connection ..........9 ■ Supplied Accessories ..........10 Icom is not responsible for the destruction or damage to the ■ Mounting the transceiver ..........10 Icom transceiver, if the malfunction is because of: ■ Antenna ..............11 •...

  • Page 5: Panel Description

    PANEL DESCRIPTION ■ Front panel Function display (p. 2) Speaker q AF VOLUME CONTROL KNOB [VOL] r DEALER-PROGRAMMABLE KEYS Rotate the knob to adjust the audio output level. Required functions can be independently programmed by • Minimum audio level is preprogrammed. (p. 8) your dealer.

  • Page 6: Function Display

    PANEL DESCRIPTION ■ Function display r LOW POWER ICON y u i Appears when low output power is selected. t AUDIBLE ICON ➥ In the analog mode, appears when the CTCSS (DTCS) squelch mute is released while holding down [Monitor]. ➥...

  • Page 7: Programmable Function Keys

    [P0], [P1], [P2] and [P3] programmable function keys. ➥ Push to start and cancel a scan. Consult your Icom dealer or system operator for details con- • When a scan is started with the Power ON Scan or Automatic scan function, push this key to cancel it. The cancelled scan re- cerning your transceivers programming.
  • Page 8 A7079H-1EX-4a Printed in Japan © 2013–2018 Icom Inc. 1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan Printed on recycled paper with soy ink.
