12
OTHERS

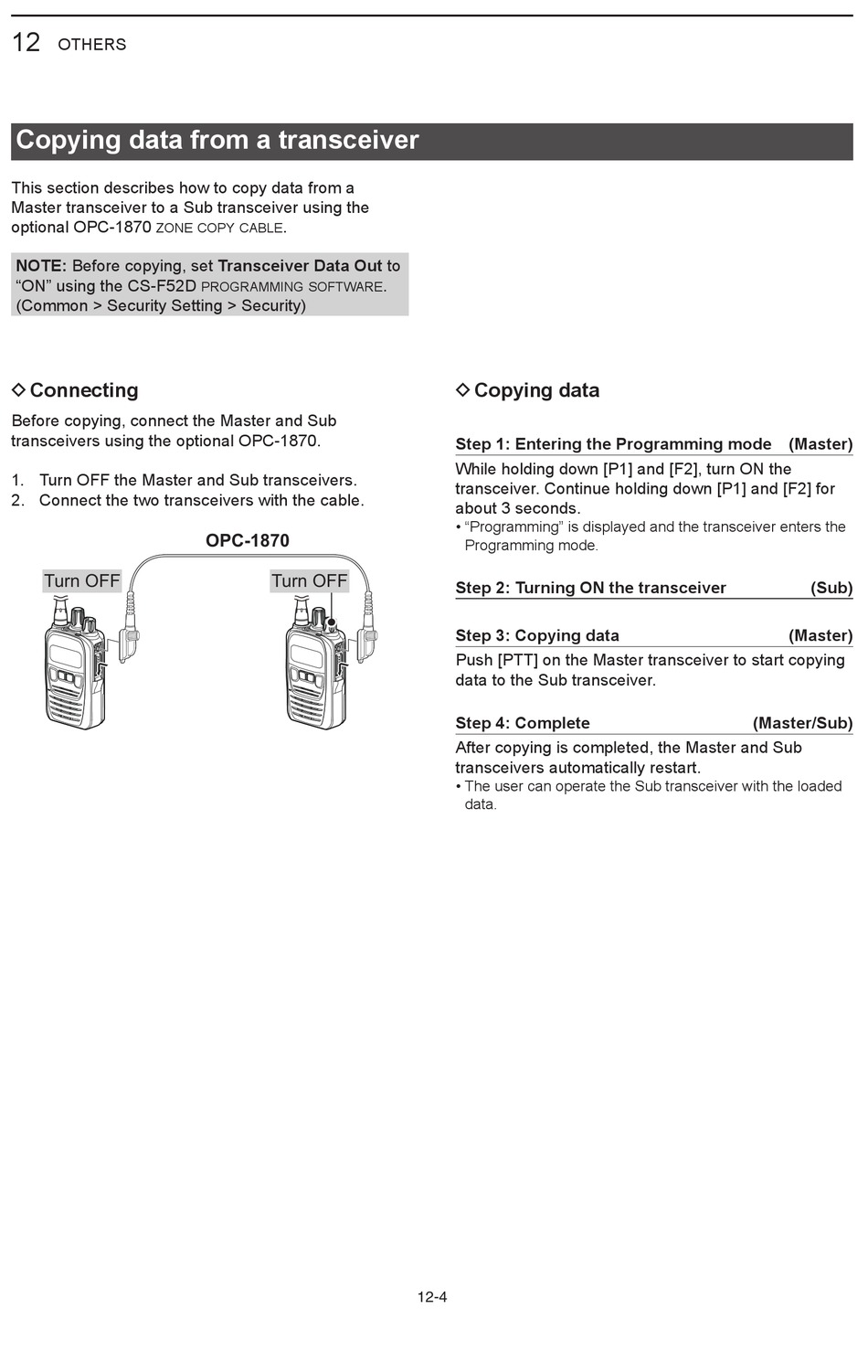

Copying data from a transceiver
This section describes how to copy data from a
Master transceiver to a Sub transceiver using the
optional OPC-1870
zone copy cable
NOTE: Before copying, set Transceiver Data Out to
"ON" using the CS-F52D
(Common > Security Setting > Security)
D Connecting
Before copying, connect the Master and Sub
transceivers using the optional OPC-1870.
1� Turn OFF the Master and Sub transceivers.
2� Connect the two transceivers with the cable.
Turn OFF
�
programming software
OPC-1870
Turn OFF
.
D Copying data
Step 1: Entering the Programming mode (Master)
While holding down [P1] and [F2], turn ON the
transceiver. Continue holding down [P1] and [F2] for
about 3 seconds.
• "Programming" is displayed and the transceiver enters the
Programming mode.
Step 2: Turning ON the transceiver
Step 3: Copying data
Push [PTT] on the Master transceiver to start copying
data to the Sub transceiver.
Step 4: Complete
After copying is completed, the Master and Sub
transceivers automatically restart.
• The user can operate the Sub transceiver with the loaded
data.
12-4
(Sub)
(Master)
(Master/Sub)
