13
OPTIONS
MB-136
belt clip

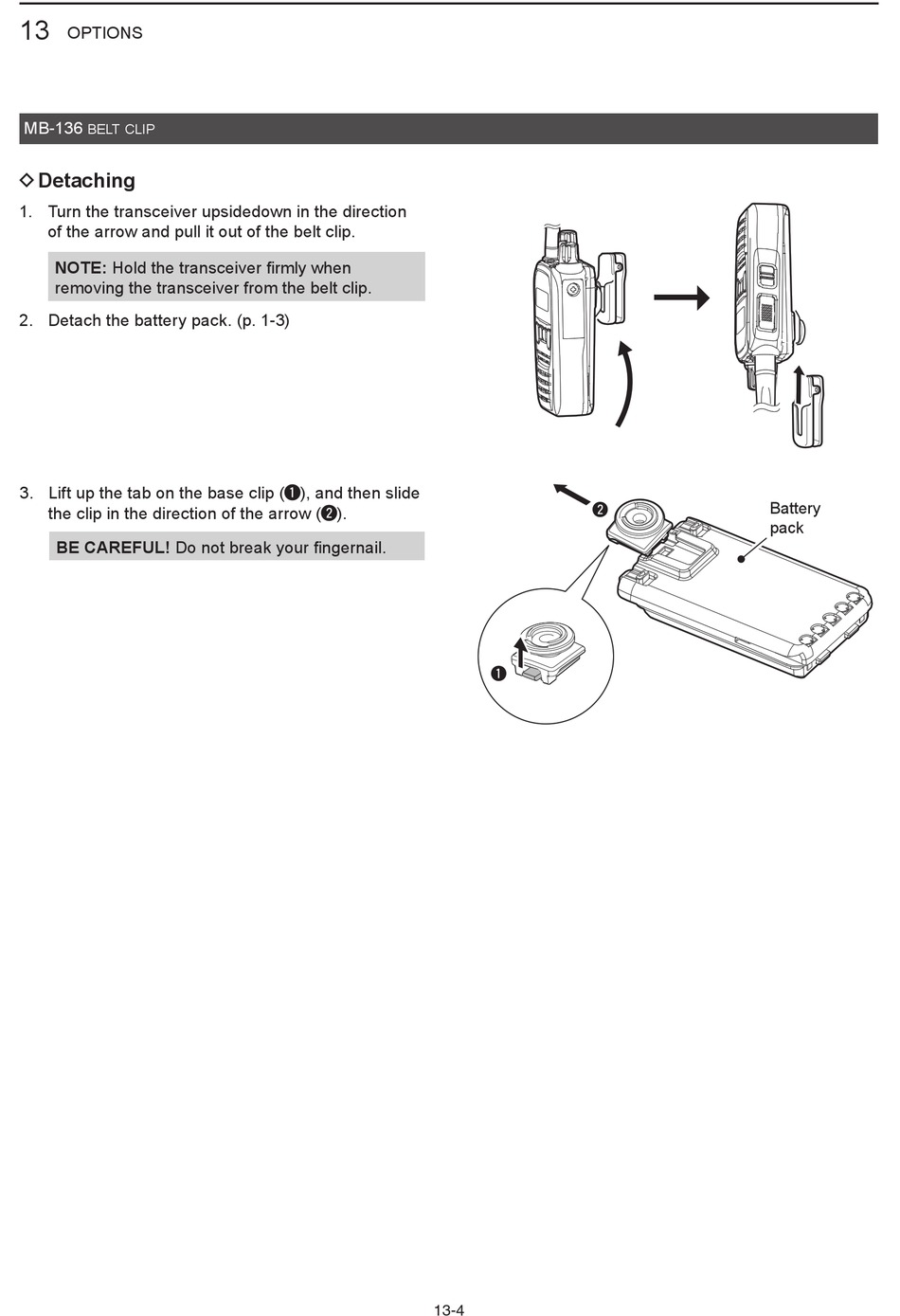

D Detaching

1� Turn the transceiver upsidedown in the direction
of the arrow and pull it out of the belt clip�
NOTE: Hold the transceiver firmly when
removing the transceiver from the belt clip�
2� Detach the battery pack� (p� 1-3)
3� Lift up the tab on the base clip (q), and then slide
the clip in the direction of the arrow (w)�
BE CAREFUL! Do not break your fingernail.
w
q
13-4
Battery
pack
