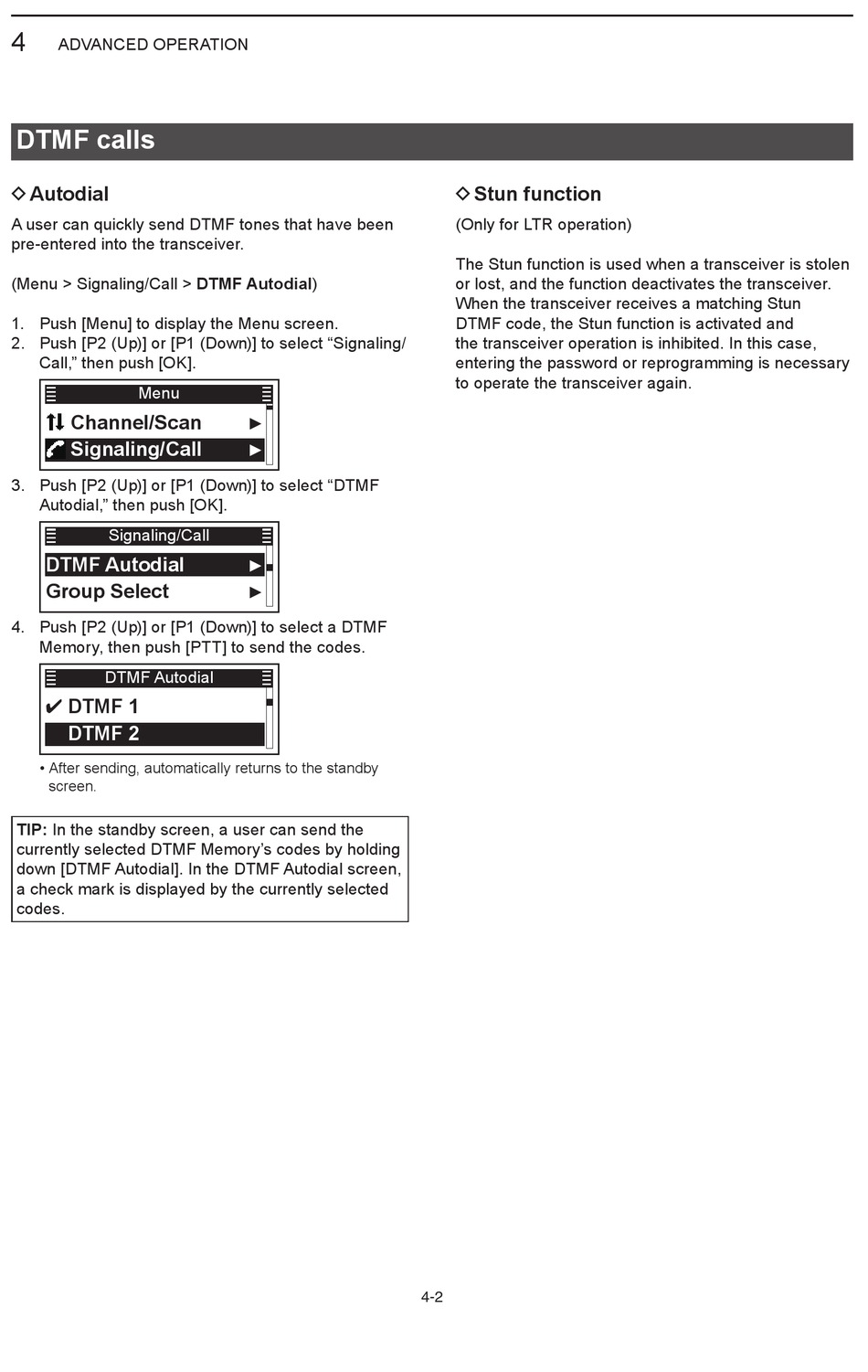

Section 4 Advanced Operation; Dtmf Calls; D Autodial; D Stun Function - Icom IC-F62D Operating Manual

4
ADVANCED OPERATION

DTMF calls

D Autodial

A user can quickly send DTMF tones that have been
pre-entered into the transceiver�
(Menu > Signaling/Call > DTMF Autodial)
1� Push [Menu] to display the Menu screen�
2� Push [P2 (Up)] or [P1 (Down)] to select "Signaling/
Call," then push [OK]�
Menu
Channel/Scan
Signaling/Call
3� Push [P2 (Up)] or [P1 (Down)] to select "DTMF
Autodial," then push [OK]�
Signaling/Call
DTMF Autodial
Group Select
4� Push [P2 (Up)] or [P1 (Down)] to select a DTMF
Memory, then push [PTT] to send the codes�
DTMF Autodial
✔ DTMF 1
DTMF 2
✔
• After sending, automatically returns to the standby
screen�
TIP: In the standby screen, a user can send the
currently selected DTMF Memory's codes by holding
down [DTMF Autodial]� In the DTMF Autodial screen,
a check mark is displayed by the currently selected
codes�
►
►
►
►

D Stun function

(Only for LTR operation)
The Stun function is used when a transceiver is stolen
or lost, and the function deactivates the transceiver�
When the transceiver receives a matching Stun
DTMF code, the Stun function is activated and
the transceiver operation is inhibited� In this case,
entering the password or reprogramming is necessary
to operate the transceiver again�
4-2
