BASIC OPERATION

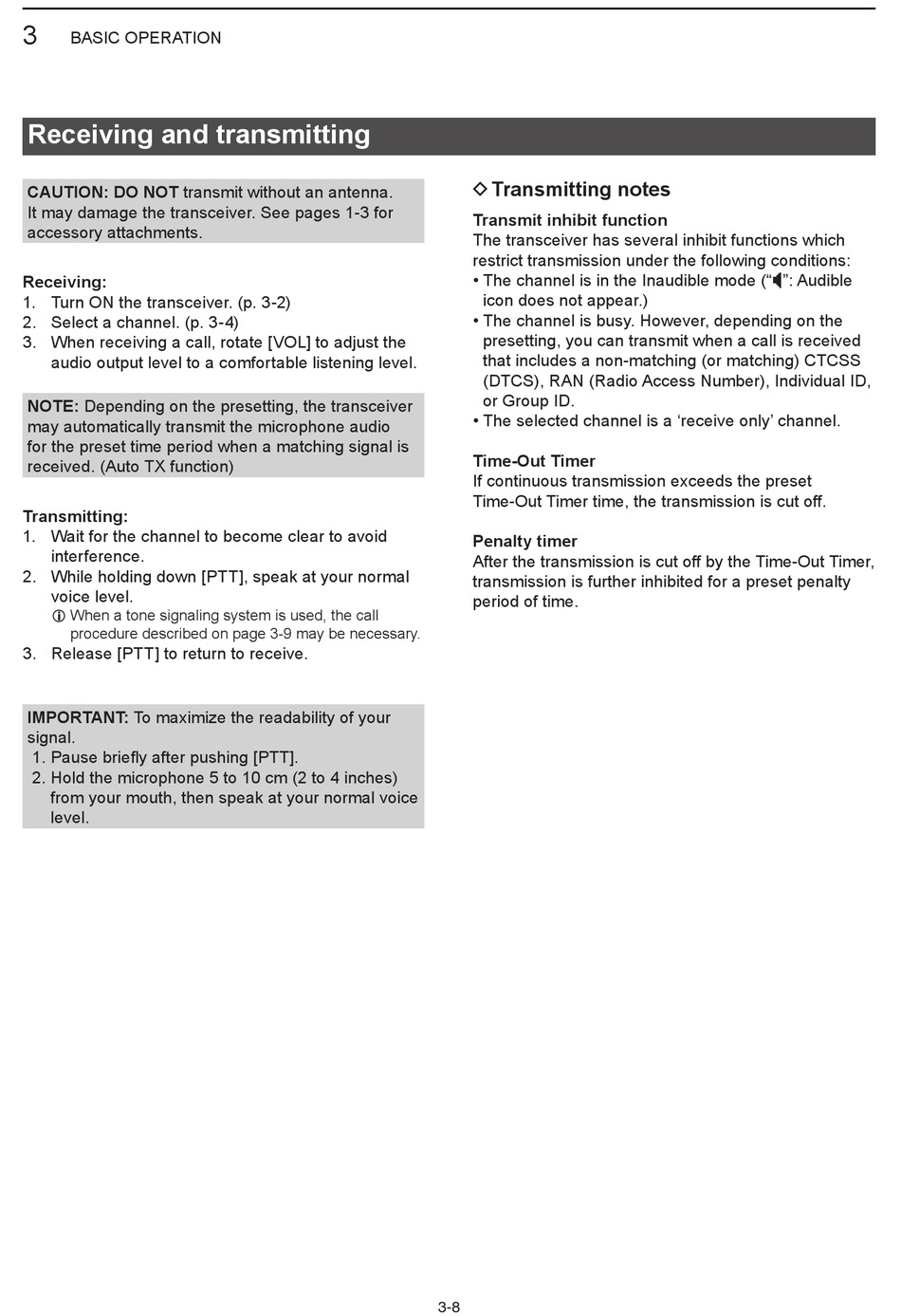

Receiving and transmitting

CAUTION: DO NOT transmit without an antenna�
It may damage the transceiver� See pages 1-3 for
accessory attachments�
Receiving:
1� Turn ON the transceiver. (p. 3-2)
2� Select a channel. (p. 3-4)
3� When receiving a call, rotate [VOL] to adjust the
audio output level to a comfortable listening level�
NOTE: Depending on the presetting, the transceiver
may automatically transmit the microphone audio
for the preset time period when a matching signal is
received. (Auto TX function)
Transmitting:
1� Wait for the channel to become clear to avoid
interference�
2� While holding down [PTT], speak at your normal
voice level�
L When a tone signaling system is used, the call
procedure described on page 3-9 may be necessary�
3� Release [PTT] to return to receive�
IMPORTANT: To maximize the readability of your
signal�
1. Pause briefly after pushing [PTT].
2. Hold the microphone 5 to 10 cm (2 to 4 inches)
from your mouth, then speak at your normal voice
level�

D Transmitting notes

Transmit inhibit function
The transceiver has several inhibit functions which
restrict transmission under the following conditions:
• The channel is in the Inaudible mode (" ": Audible
icon does not appear.)
• The channel is busy. However, depending on the
presetting, you can transmit when a call is received
that includes a non-matching (or matching) CTCSS
(DTCS), RAN (Radio Access Number), Individual ID,
or Group ID�
• The selected channel is a 'receive only' channel.
Time-Out Timer
If continuous transmission exceeds the preset
Time-Out Timer time, the transmission is cut off.
Penalty timer
After the transmission is cut off by the Time-Out Timer,
transmission is further inhibited for a preset penalty
period of time�
3-8
