- Page 2 IC-F521 TRANSCEIVER than 16 V DC such as a 24 V battery. This connection will ruin IC-F621 UHF TRANSCEIVER. the transceiver. EXPLICIT DEFINITIONS NEVER cut the DC power cable between the DC plug and...
- Page 3 I Antenna ................18 For U.S.A. only I Fuse replacement ............... 18 CAUTION: Changes or modifications to this transceiver, not I Cleaning ................18 OPTIONS ................19 expressly approved by Icom Inc., could void your authority to operate this transceiver under FCC regulations.

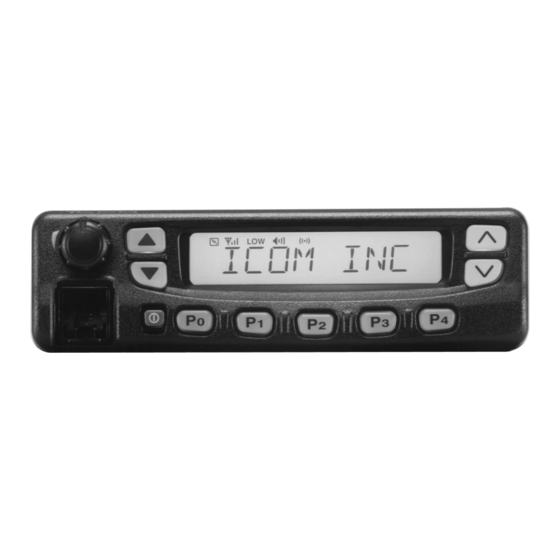

- Page 4 PANEL DESCRIPTION I Front panel q AF VOLUME CONTROL KNOB e FUNCTION DISPLAY ➥Rotate the knob to adjust the audio output level. ➥Displays variety of information, such as an operating chan- nel number/name, 2/5tone code, DTMF numbers and audi- • Minimum audio level is pre-programmed. ble condition, etc.
- Page 5 PANEL DESCRIPTION I Function display t DEALER-PROGRAMMABLE KEYS [P0] to [P4] ➥Desired functions can be programmed independently by your Dealer. q w e y POWER SWITCH [POWER] ➥Push to turns the power ON and OFF. • The following functions are available at power ON as options: - Automatic scan start - Password prompt q TRANSMIT INDICATOR...
- Page 6 ] and [ ] programmable function ➥Appears when specified 2/5tone call is received. keys. Consult your Icom Dealer or System operator for details con- o ALPHANUMERIC DISPLAY cerning your transceivers programming. ➥Displays the CH number, 2/5tone indication, DTMF num- In the following explanations, programmable function names bers, Audible indication, etc.
- Page 7 PANEL DESCRIPTION [BANK] BANK KEY [MONI] MONITOR KEY Select and determine a bank number. Activates one of (or two of) the following func- tions on each channel independently: • When the optional UT-105 is installed, push [BANK] then push [CH UP]/[CH DN] to select operating bank •...
- Page 8 PANEL DESCRIPTION [ T A ] TALK AROUND KEY [TX CH] TX CODE KEY Turns the talk around function ON and OFF. Select a transmit 5-tone code (station code) • The talk around function equalises the transmit channel. frequency to the receive frequency for mobile- to-mobile communication.
