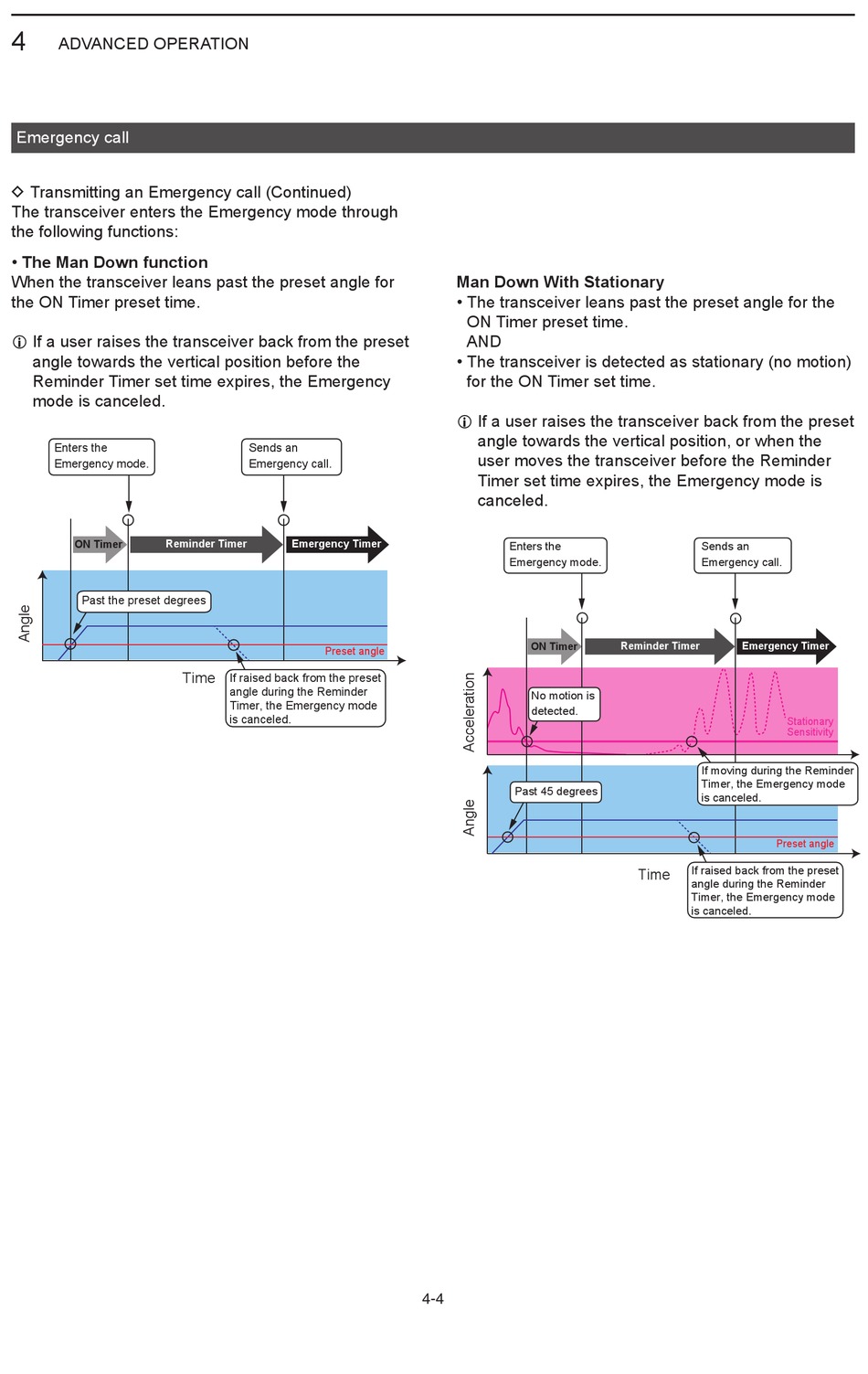

Icom IC-F62D Operating Manual page 34

4
ADVANCED OPERATION
Emergency call
D Transmitting an Emergency call (Continued)
The transceiver enters the Emergency mode through
the following functions:
• The Man Down function
When the transceiver leans past the preset angle for
the ON Timer preset time�
L If a user raises the transceiver back from the preset
angle towards the vertical position before the
Reminder Timer set time expires, the Emergency
mode is canceled�
Enters the
Emergency mode.
ON Timer Reminder Timer
Past the preset degrees
Sends an
Emergency call.
Emergency Timer
Preset angle
Time
If raised back from the preset
angle during the Reminder
Timer, the Emergency mode
is canceled.
Man Down With Stationary
• The transceiver leans past the preset angle for the
ON Timer preset time�
AND
• The transceiver is detected as stationary (no motion)
for the ON Timer set time�
L If a user raises the transceiver back from the preset
angle towards the vertical position, or when the
user moves the transceiver before the Reminder
Timer set time expires, the Emergency mode is
canceled�
Enters the
Emergency mode.
ON Timer
No motion is
detected.
Past 45 degrees
4-4
Sends an
Emergency call.
Reminder Timer Emergency Timer
If moving during the Reminder
Timer, the Emergency mode
is canceled.
Preset angle
If raised back from the preset
Time
angle during the Reminder
Timer, the Emergency mode
is canceled.
Stationary
Sensitivity
