Icom IC-F62D Operating Manual page 13

2

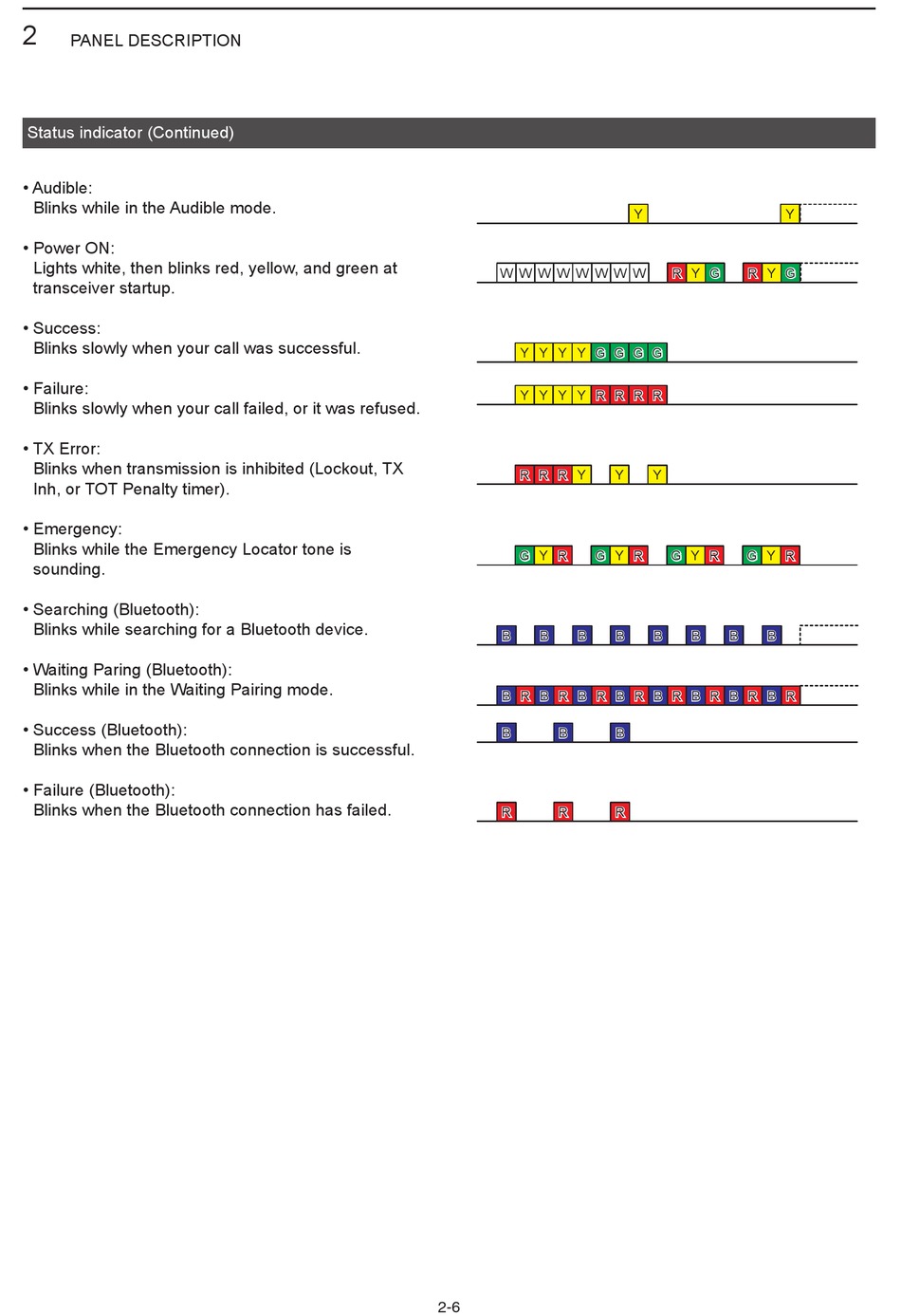

PANEL DESCRIPTION
Status indicator (Continued)
• Audible:
Blinks while in the Audible mode�
• Power ON:
Lights white, then blinks red, yellow, and green at
transceiver startup�
• Success:
Blinks slowly when your call was successful�
• Failure:
Blinks slowly when your call failed, or it was refused�
• TX Error:
Blinks when transmission is inhibited (Lockout, TX
Inh, or TOT Penalty timer)�
• Emergency:
Blinks while the Emergency Locator tone is
sounding�
• Searching (Bluetooth):
Blinks while searching for a Bluetooth device�
• Waiting Paring (Bluetooth):
Blinks while in the Waiting Pairing mode�
• Success (Bluetooth):
Blinks when the Bluetooth connection is successful�
• Failure (Bluetooth):
Blinks when the Bluetooth connection has failed�
W W W W W W
Y Y Y Y G G
Y Y Y Y R R
R R R Y R R R
G G Y R R G G
B B B B B B B B B
B R B R B B R R B B R R
B B B B
R R R R
2-6
Y
W W R R Y G G R R Y
G G G G G G
R R R R R R
Y Y
Y R R G G Y R R G G Y
B B B B B B B B B B B B B B B
B B R R B B R R B B R R B B R R B R B R
B B
R R
Y
G G
R R
