14
OPTIONS

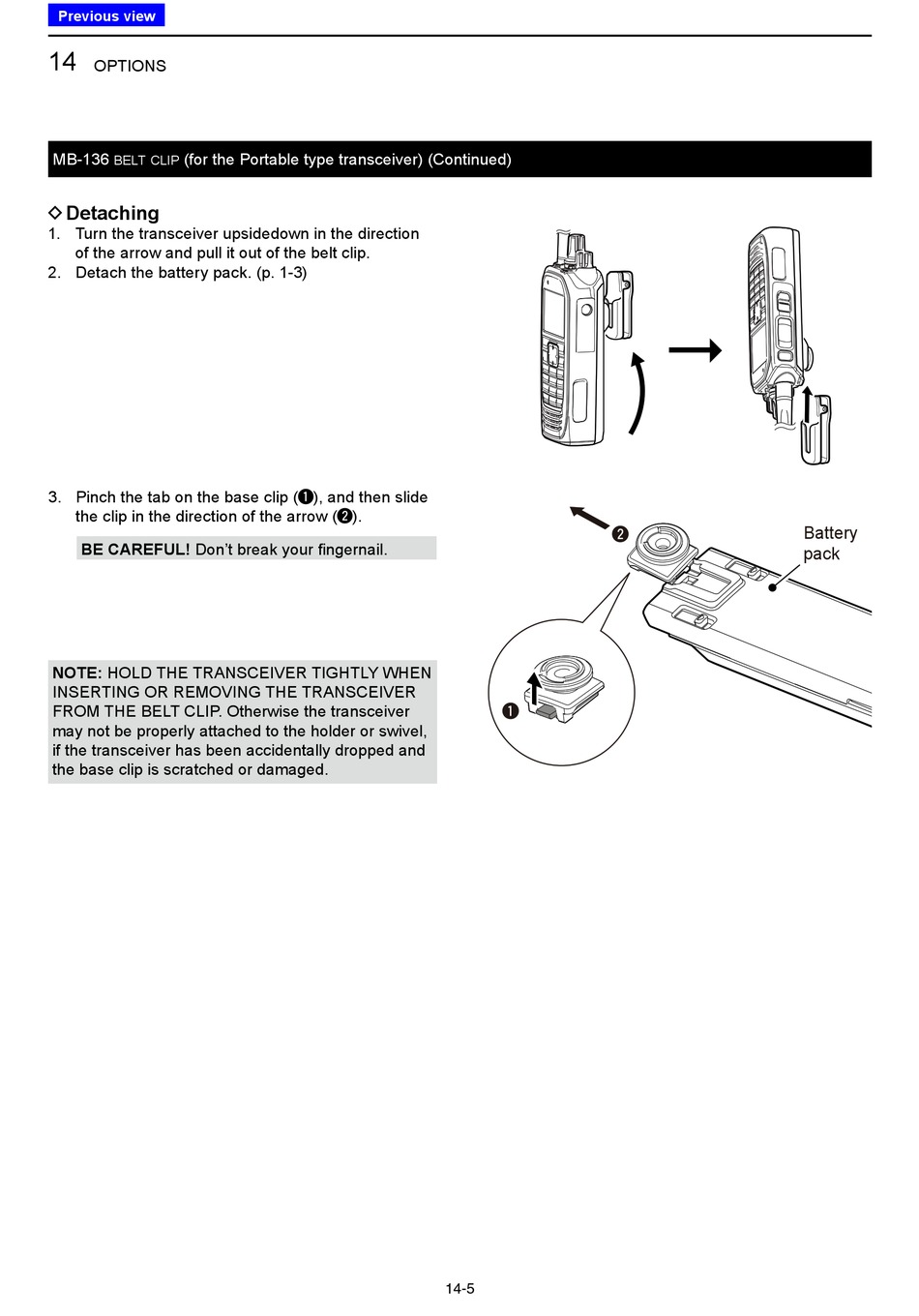

MB-136 (for the Portable type transceiver) (Continued)
belt clip

D Detaching

1. Turn the transceiver upsidedown in the direction
of the arrow and pull it out of the belt clip.
2. Detach the battery pack. (p. 1-3)
3. Pinch the tab on the base clip (q), and then slide
the clip in the direction of the arrow (w).
BE CAREFUL! Don't break your fingernail.
NOTE: HOLD THE TRANSCEIVER TIGHTLY WHEN
INSERTING OR REMOVING THE TRANSCEIVER
FROM THE BELT CLIP. Otherwise the transceiver
may not be properly attached to the holder or swivel,
if the transceiver has been accidentally dropped and
the base clip is scratched or damaged.
w
q
14-5
Battery
pack
