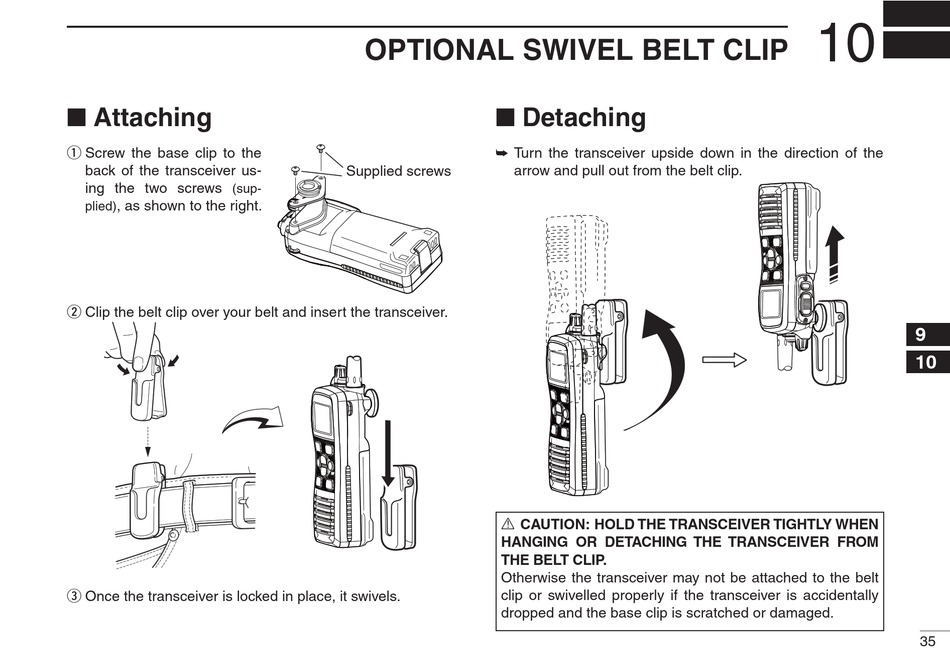

Screw the base clip to the

back of the transceiver us-

ing the two screws

(sup-

, as shown to the right.

plied)

Clip the belt clip over your belt and insert the transceiver.

Once the transceiver is locked in place, it swivels.

OPTIONAL SWIVEL BELT CLIP

Turn the transceiver upside down in the direction of the

arrow and pull out from the belt clip.

Supplied screws

R CAUTION: HOLD THE TRANSCEIVER TIGHTLY WHEN

HANGING OR DETACHING THE TRANSCEIVER FROM

THE BELT CLIP.

Otherwise the transceiver may not be attached to the belt

clip or swivelled properly if the transceiver is accidentally

dropped and the base clip is scratched or damaged.
