Multitron Pro - Incubation Shaker
Setup and function

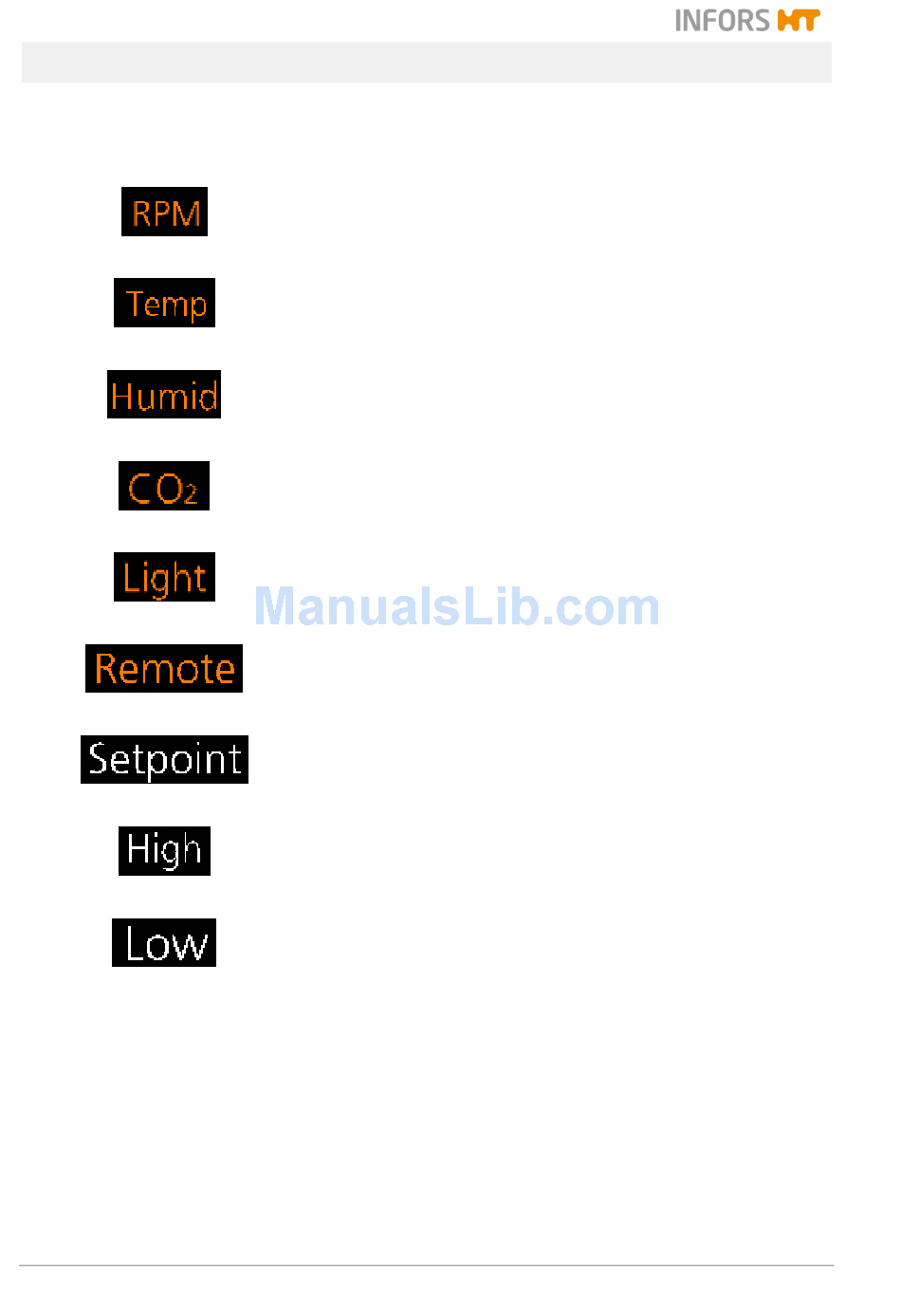

4.7.1 Operating panel symbols

Speed symbol
Temperature symbol
Humidity symbol
Gassing symbol
Illumination symbol
Remote symbol
Setpoint symbol
High symbol
Low symbol
Page 62 of 185
Indicates that the shaking speed RPM (rotation per minute) can be
set.
Indicates that the temperature can be set.
Indicates that the humidity can be set.
Indicates that the gassing can be set.
Indicates that the illumination can be set.
Indicates that the unit is being set externally.
Indicates that a parameter can be set.
Indicates that a current parameter value is too high.
Indicates that a current parameter value is too low.
