Installation and initial operation
6.13 Connecting the CO

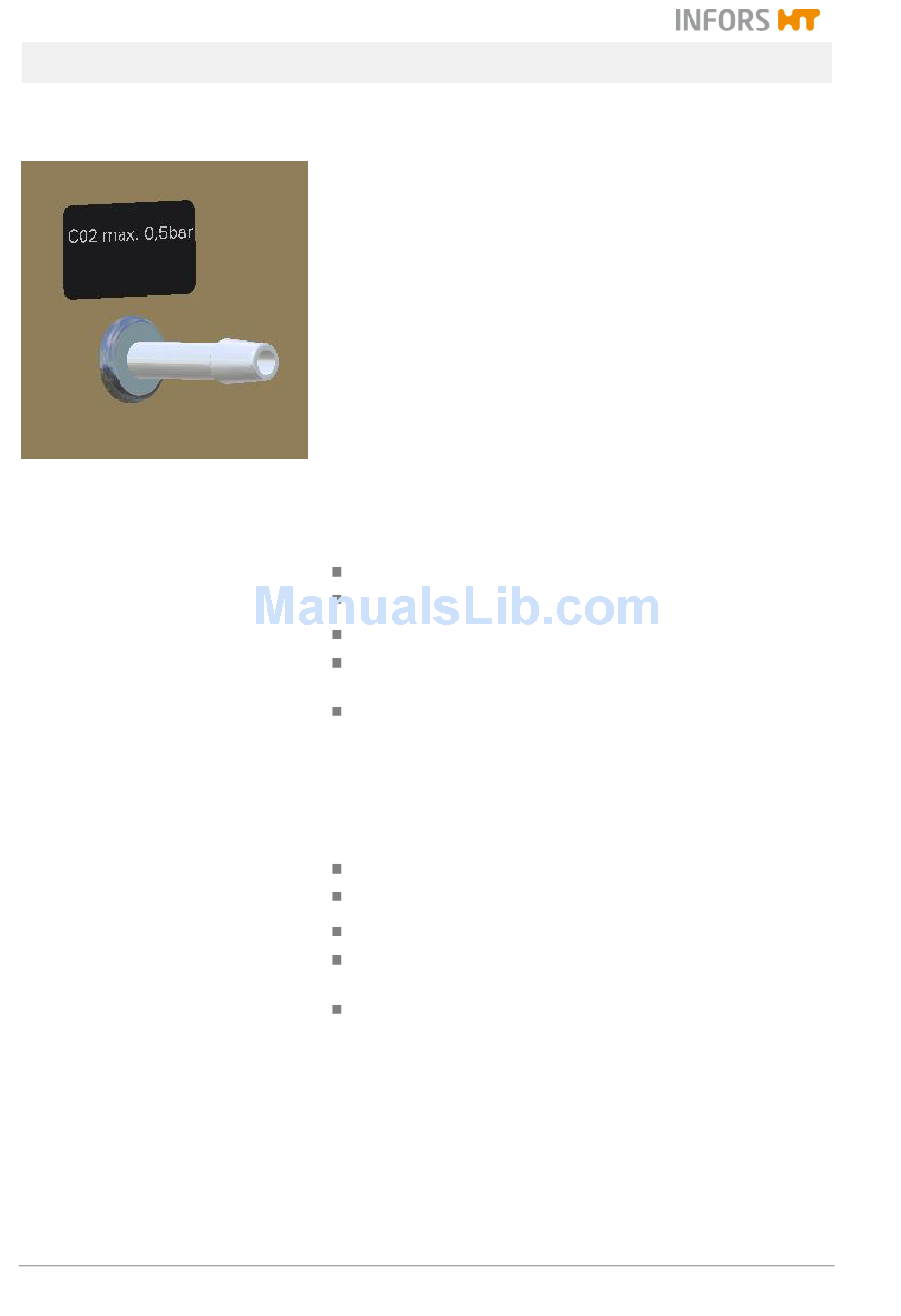

Fig. 80
Requirements for air/gas supply
Requirements for the hose

6.14 Connecting the gassing pipe

Requirements for air/gas supply
Requirements for the hose
Page 102 of 185
gas supply
2
The inlet hose nozzle for the CO2 supply is located on the right-
hand wall of the housing.
The gassing unit is equipped with a control valve and a CO2
sensor.
The CO2 sensor is located on the left-hand side of the rear wall of
the incubation chamber.
The gassing unit is operated via the operating panel.
The in-house supply of air or gas to the unit must meet the
following requirements:
Constancy of the air/gas supply
The air/gas must be clean, dry, oil- and dust-free.
Only pressure-resistant and intact hoses may be used
The hose must have an appropriate diameter; an adapter may
be used, if necessary.
Secure hoses with hose clamps
The in-house supply of air or gas to the unit must meet the
following requirements:
Constancy of the air/gas supply
The air/gas must be clean, dry, oil- and dust-free.
Only pressure-resistant and intact hoses may be used
The hose must have an appropriate diameter; an adapter may
be used, if necessary.
Secure hoses with hose clamps
