10.4.3 A/D converter operation mode

The operation mode of the A/D converter is the select mode. One channel of analog input is selected from ANI0 to
ANI3 by the analog input channel specification register (ADS) and A/D conversion is executed.
(1) A/D conversion operation
By setting bit 7 (ADCS) of the A/D converter mode register (ADM) to 1, the A/D conversion operation of the
voltage, which is applied to the analog input pin specified by the analog input channel specification register
(ADS), is started.
When A/D conversion has been completed, the result of the A/D conversion is stored in the A/D conversion result
register (ADCR, ADCRH), and an interrupt request signal (INTAD) is generated. Once the A/D conversion has
started and when one A/D conversion has been completed, the next A/D conversion operation is immediately
started. The A/D conversion operations are repeated until new data is written to ADS.
If ADM or ADS is written during A/D conversion, the A/D conversion operation under execution is stopped and
restarted from the beginning.
If 0 is written to ADCS during A/D conversion, A/D conversion is immediately stopped.
conversion result is undefined.
Rewriting ADM
ADCS = 1
A/D conversion
ADCR,
ADCRH
INTAD
Remarks 1. n = 0 to 3
2. m = 0 to 3
172
CHAPTER 10 A/D CONVERTER

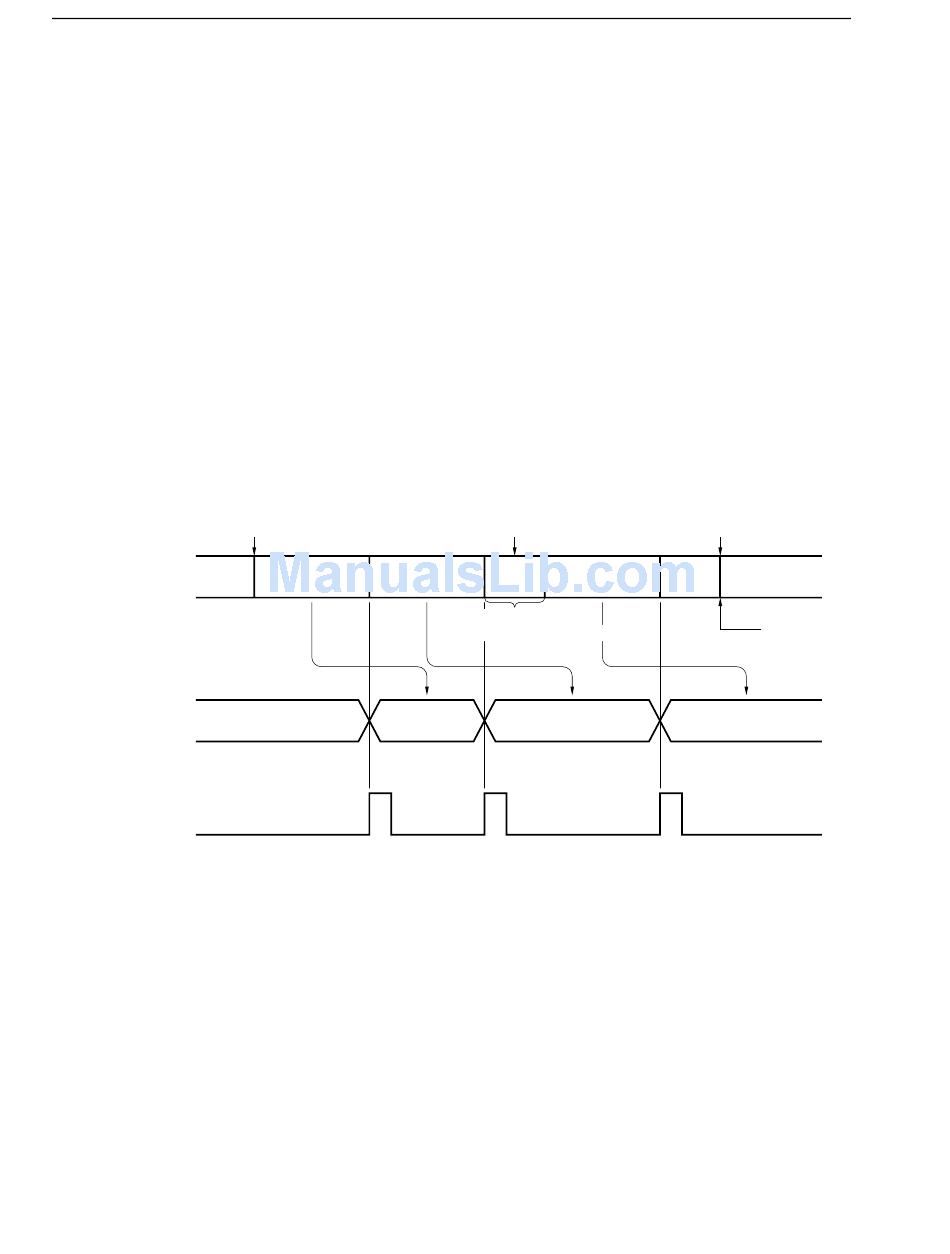

Figure 10-12. A/D Conversion Operation
Rewriting ADS
ANIn ANIn
Conversion is stopped
Conversion result is not retained
ANIn
User's Manual U17446EJ3V1UD
ANIn ANIm ANIm
ANIn
At this time, the
ADCS = 0
Stopped
ANIm
