Count clock
8-bit timer counter H1
00H 01H
CMP01
CMP11
TMHE1
INTTMH1
TOH1
(TOLEV1 = 0)
Count clock
8-bit timer counter H1
00H 01H
CMP01
CMP11
TMHE1
INTTMH1
TOH1
(TOLEV1 = 0)
CHAPTER 8 8-BIT TIMER H1

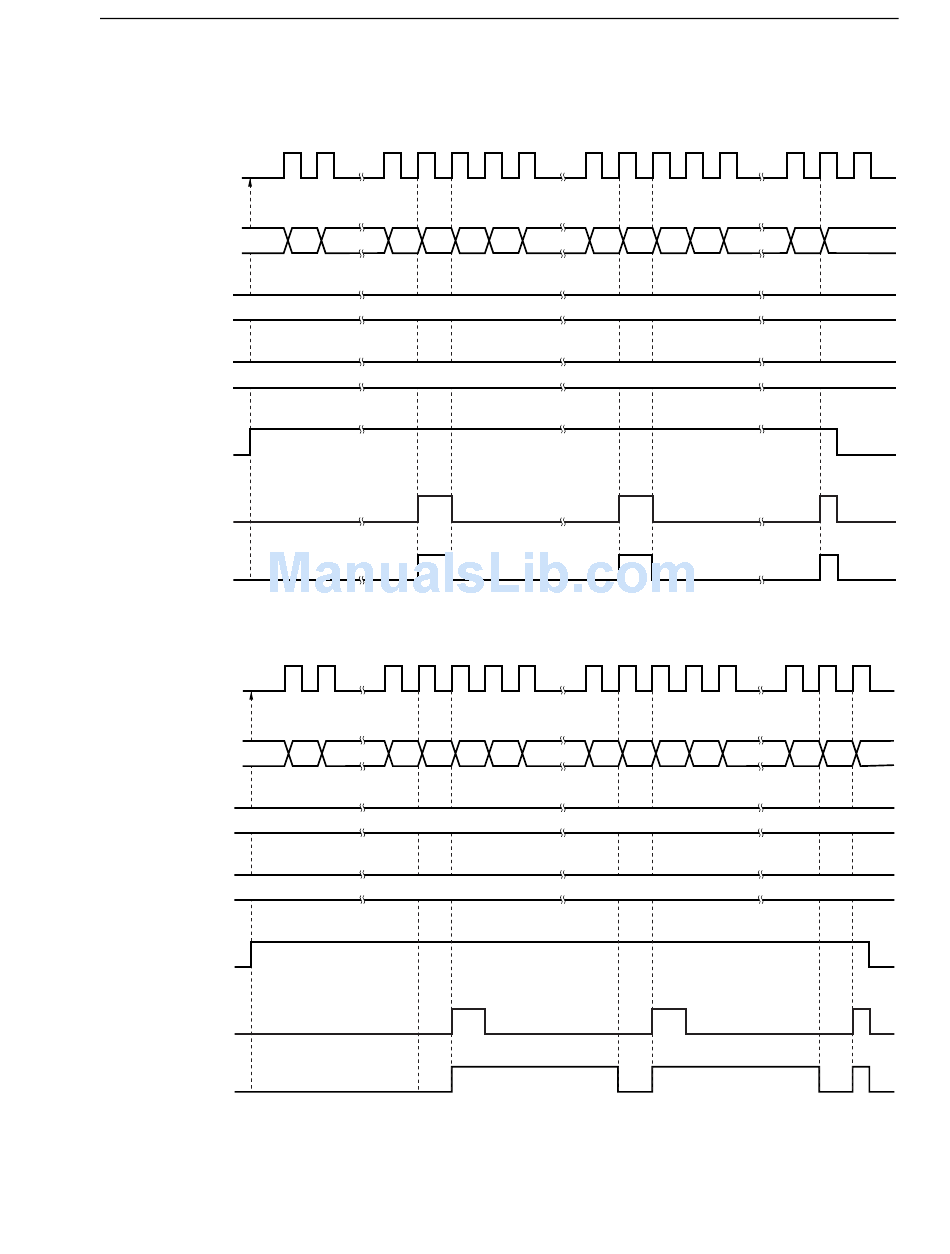

Figure 8-9. Operation Timing in PWM Output Mode (2/4)
(b) Operation when CMP01 = FFH, CMP11 = 00H
FFH 00H 01H 02H
(c) Operation when CMP01 = FFH, CMP11 = FEH
FEH FFH 00H 01H
User's Manual U17446EJ3V1UD
FFH 00H
01H 02H
FFH
00H
FEH FFH 00H 01H
FFH
FEH
FFH 00H
FEH FFH 00H
145
