5.8.2
SATA Power
The conga-IA5 provides an internal SATA power for hard drives on connector X11. This connector supplies 3.3V, 5V and 12V.

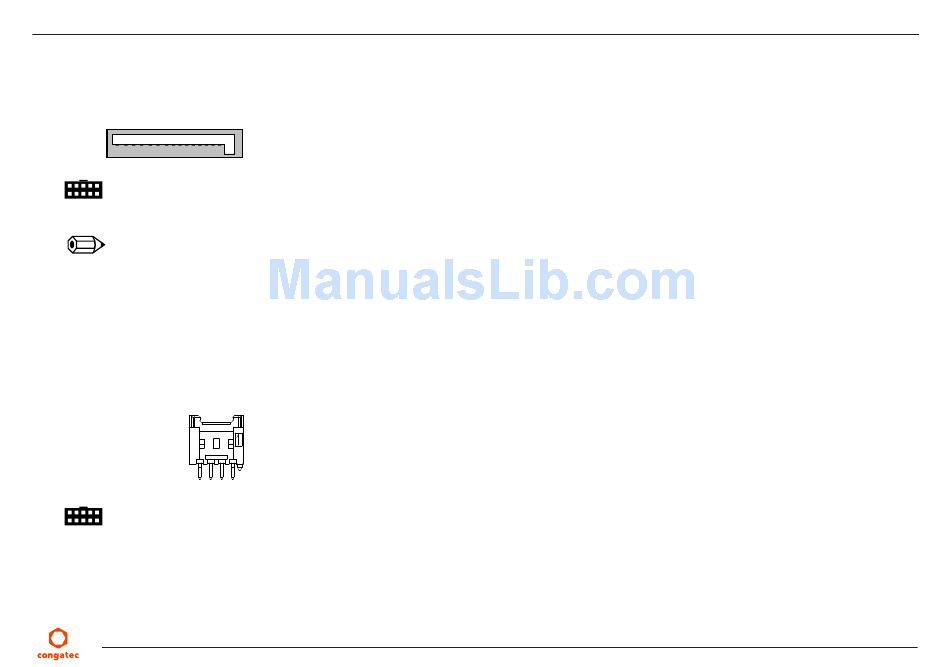

SATA Power - Connector X11
15
14
13
12
11
10
9
8
7
6 5 4 3 2 1
Connector Type
X11: 15 pin SATA connector
Note
The voltage rails +3.3V, +5V and +12V have maximum current of 1.5A each.
5.8.3
4-Pin Power
The conga-IA5 offers a 4-pin power header (X47) intended to power a SATA device.
4-Pin Power - Connector X47
Connector Type
X11: 2.50mm, 4 pin, Molex Mini-Lock, TH, Vertical
Copyright © 2017 congatec AG
IA50m01
37/59
