LVDS

The conga-IA5 offers LVDS interface on connector X33 — a standard 40 pin LVDS connector. The LVDS signals are sourced from the SoC's DDI
stream via a multiplexer.
The interface is located on the top side of the SBC and supports 24-bit dual channel, selectable backlight voltage, VESA color mappings,
automatic panel detection and up to 1920x1200 resolution.

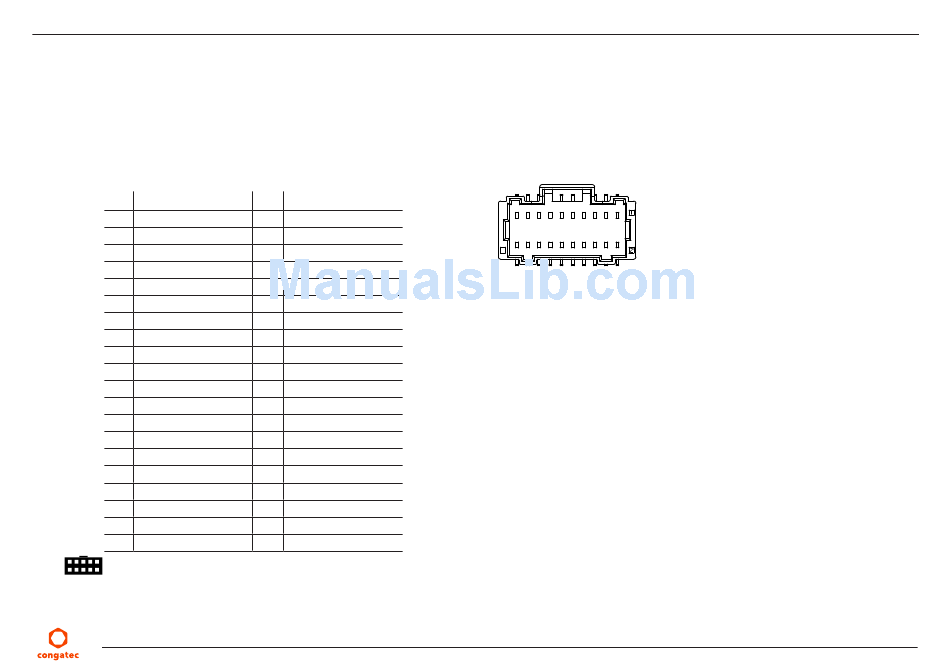

Table 29 LVDS (Connector X33) Pinout Description
Pin Signal
1 LVDS_A3+
2 LVDS_A3-
3 LVDS_A2+
4 LVDS_A2-
5 LVDS_A1+
6 LVDS_A1-
7 LVDS_A0+
8 LVDS_A0-
9 LVDS_B3+
10 LVDS_B3-
11 LVDS_B2+
12 LVDS_B2-
13 LVDS_B1+
14 LVDS_B1-
15 LVDS_B0+
16 LVDS_B0-
17 EDID_GND
18 LCD_VCC
19 LCD_VCC
20 LCD_VCC
Connector Type
X33: 40 pin, Molex Pico-Clasp, SMT, Dual Row, Vertical
Possible Mating Connector: Molex# 501189-4010
Copyright © 2017 congatec AG
Pin Signal
21 N.C.
22 EDID_3.3V
23 LCD_GND
24 LCD_GND
25 LCD_GND
26 LVDS_A_CLK+
27 LVDS_A_CLK-
28 BKLT_GND
29 BKLT_GND
30 BKLT_GND
31 EDID_CLK
32 LVDS_BKLT_EN
33 LVDS_BKLT_CTRL
34 LVDS_B_CLK+
35 LVDS_B_CLK-
36 BKLT_PWR
37 BKLT_PWR
38 BKLT_PWR
39 N.C
40 EDID_DATA
