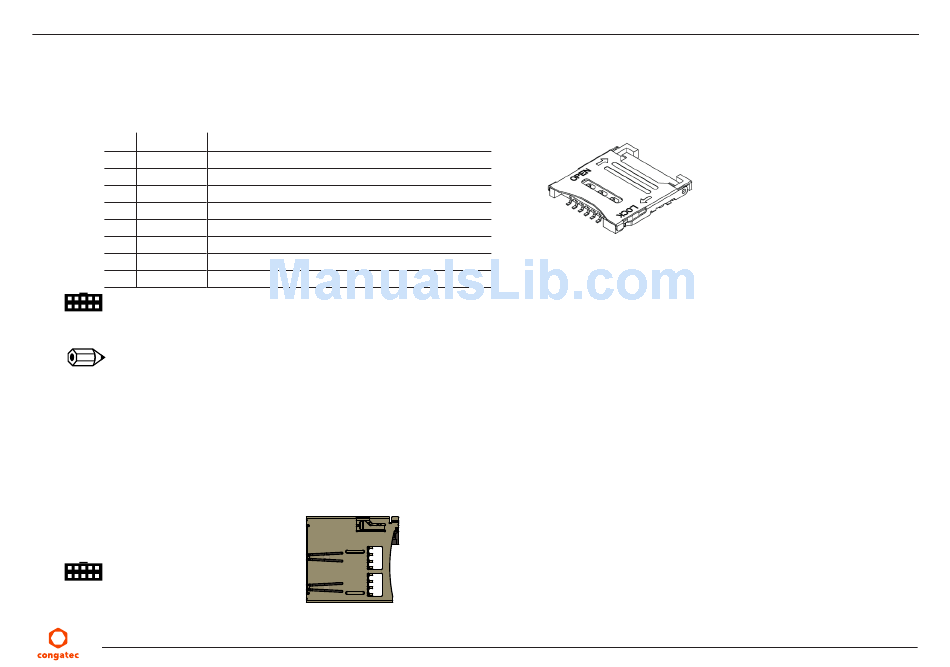

5.11
Micro-SIM Slot
The conga-IA5 offers a micro-SIM slot on connector X10 to insert a SIM card.
Table 37
Micro-SIM Slot (Connector X10) Pinout Description
Pin
Signal
Description
C1
PWR
Power
C2
RST
Reset
C3
CLK
Clock
C4
N.A
Not available
C5
GND
Ground
C6
VPP
Programming voltage input
C7
I/O
Data
C8
N.A
Not available
Connector Type
X10: Micro-SIM Card Socket, SMT, Vertical (Top entry), 6 circuits
Note
The micro-SIM slot is connected to the UIM interface of the M.2 slot by default. Optionally, the slot can be connected to the UIM interface of
the mPCIe slot.
5.12
Micro-SD Slot
The conga-IA5 offers a micro-SD slot on connector X41. The SD card slot complies with SDXC card specification 3.0 with support for up to 104
MBps data rate.
Connector Type
X41: Micro-SD slot
Copyright © 2017 congatec AG
Micro-SD Slot - Connector X41
Micro-SIM Slot - Connector X10
IA50m01
48/59
