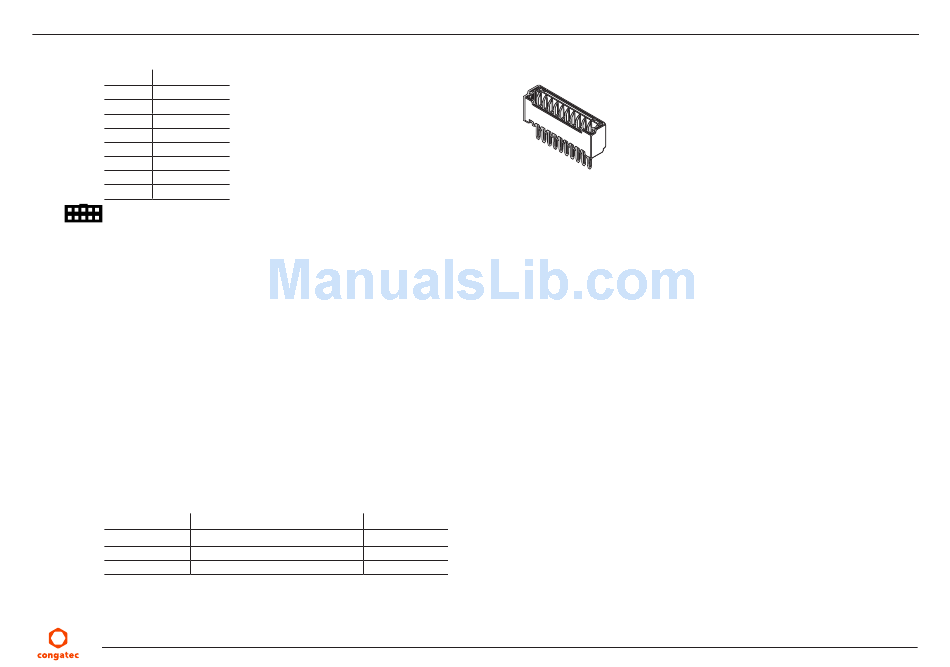

Table 15 SBM 3 Signal (X45 Connector) Pinout Description
Pin Function
1 GND
2 I2C_DAT
3 I2C_CLK
4 BATLOW#
5 SUS_STAT#
6 PM_SLP_S3#
7 PM_SLP_S5#
8 PWRBTN#
Connector Type
X45 : 1.25mm, 1x8 pin, PicoBlade
5.1.4

PWR_OK Signal

With the PWR_OK signal on the feature connector (X35), the user can control the SBC's start-up process. When this signal is set to low, the SBC
is kept in reset until the PWR_OK signal is asserted.
When the signal is asserted (set to high), it indicates to the SBC that the supplied power is stable. The SBC then begins its onboard power-up
sequence.
5.1.5

Power Status LEDs

The conga-IA5 provides two LED signals (FP_LED+ and P_LED-) on pins 2 and 4 of the front panel connector X39. The signals indicate the
different power states of the conga-IA5. Possible states and corresponding activity of the LEDs are shown below:
Table 16 Double-Color Power LED
LED State Description
Off
Power-off
Steady Green Running
Steady Yellow Sleeping
Copyright © 2017 congatec AG
SBM3 Signal - Connector X45
ACPI State
S5
S0
S3
IA50m01 26/59
