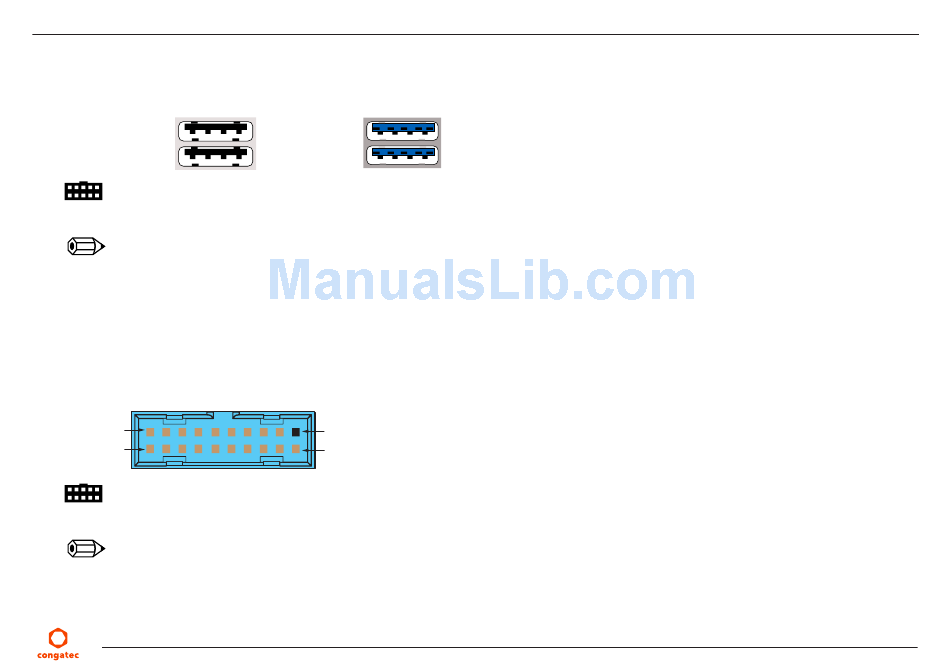

5.6.1
Rear USB Connectors
The conga-IA5 offers four USB ports on the rear side — two USB 2.0 ports on connector X16 and two USB 3.0 ports on connector X17.
USB 2.0 - Connector X16
Upper
1
2
Lower
1
2
Connector Type
X16, X17: Two type A, dual port USB connectors
Note
Connectors X16 and X17 have maximum current of 0.5A and 1.0A respectively.
5.6.2
Internal USB 3.0 Connector
The conga-IA5 offers one USB 3.0 port on connector X14 (internal header). The port is backward compatible to USB 2.0 devices.
Internal USB 3.0 - Connector X14
Pin 11
Pin 10
Connector Type
X14: 2.54mm, 2x10 pin header
Note
Only one USB port is supported on this connector. The signals for the second USB port are not connected. congatec offers a cable for this
connector (see section 1.2.2 "Optional Accessories"). For more information, contact congatec technical solution department.
Connector X14 has a maximum current of 1.2A.
Copyright © 2017 congatec AG
USB 3.0 - Connector X17
Upper
18
17
3
4
10
11
9
8
Lower
3
4
1
2
No Pin
Pin 1
16
15
14
12
13
7
6
5
3
4
IA50m01
34/59
