Connector Type
X29: 0.5mm, 40 pin, ACES
Mating connector: ACES 88441-40 or ACES 50204-40
Note
congatec offers cables and adapter for the eDP interface (see section 1.2.2 "Optional Accessories/Cables"). For more information, contact
the congatec technical solution department.
5.9.3.1
Backlight Power Connector
The conga-IA5 provides backlight power on connector X32. The power budget of BKLT_PWR (pins 3 and 4) is limited to 1.5A.
Table 31
Backlight Power (Connector X32) Pinout Description
Pin
Signal Name
1
LVDS_BKLT_EN
2
LVDS_BKLT_CTRL
3
BKLT_PWR
4
BKLT_PWR
5
GND
6
GND
7
Brightness_Up
8
Brightness_Down
Connector Type
X31: 2mm, 8 pin, Pinrex 721, TH, Vertical
Note
congatec offers an open-end cable for this interface (see section 1.2.2 "Optional Accessories"). For more information, contact the congatec
technical solution department.
Copyright © 2017 congatec AG
Description
Backlight enable
Backlight control
Backlight inverter power
Backlight inverter power
Backlight/brightness ground
Backlight/brightness ground
Flat panel brightness increase
Flat panel brightness decrease

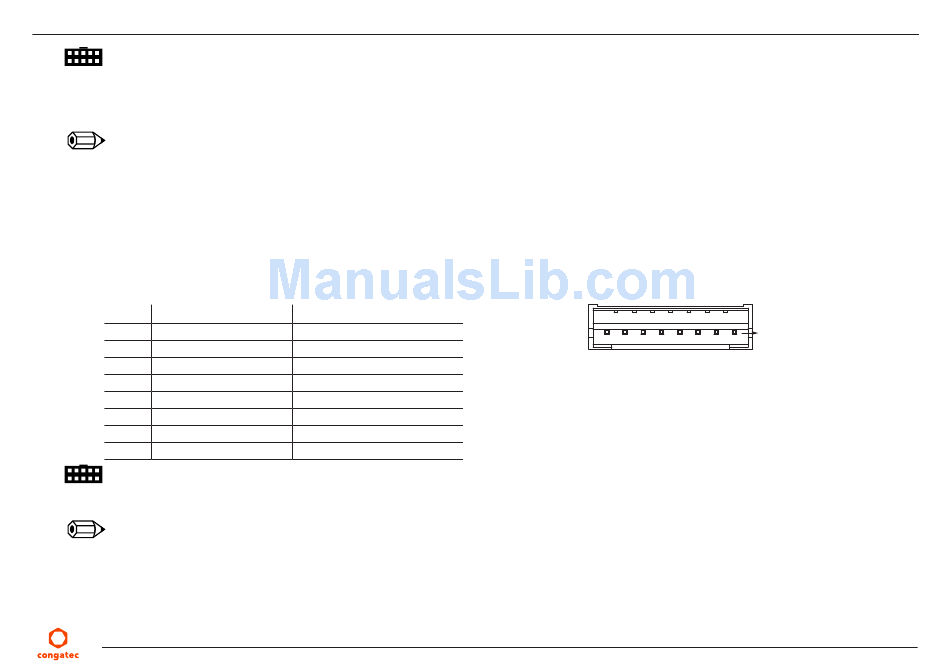

Backlight Power - Connector X32
IA50m01
Pin 1
42/59
